EKKO EB13E-LI Full Powered Straddle Stacker 2800 lb Capacity 119" Height

In stock
SKU: EB13E-LI
Regular price $6,940.00
Est. Ship Date: Wednesday, December 20th

  • Adjustable Forks & Legs
  • Ergonomic Handle and Controls
  • Battery & Charger Included
  • 3 Year Limited Warranty

Max Height
Trusted By

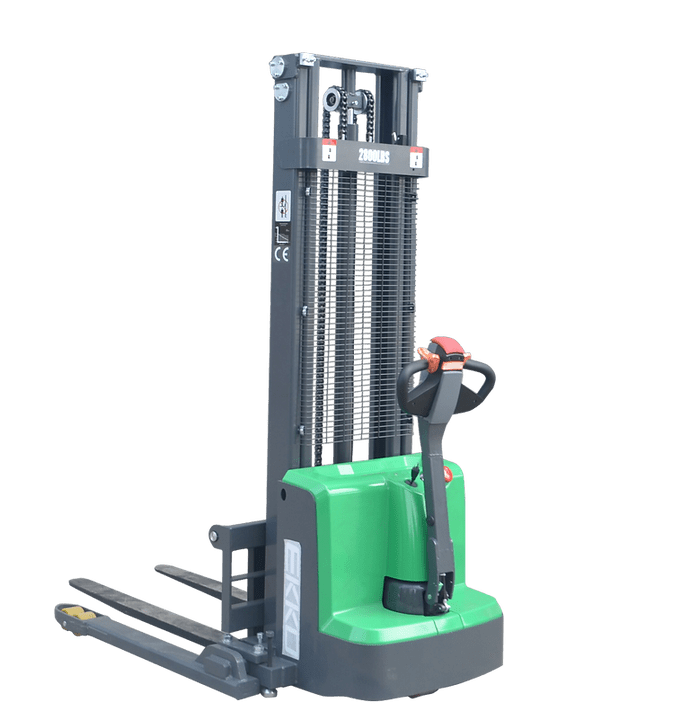

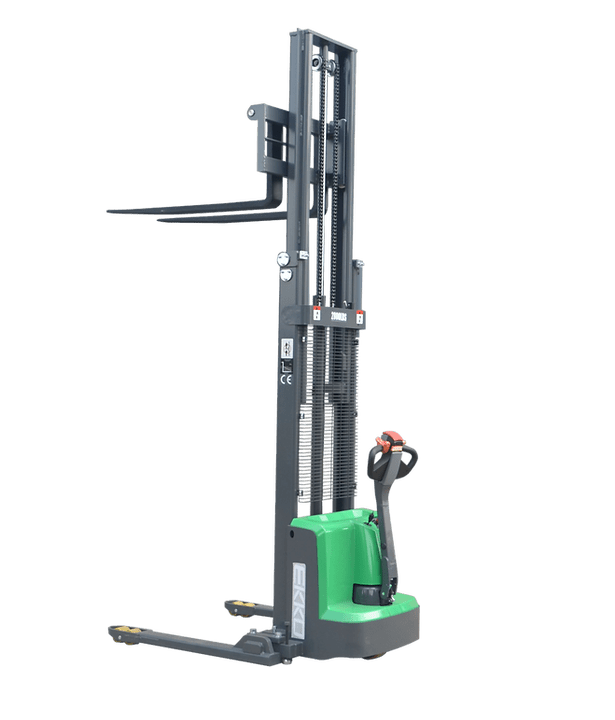

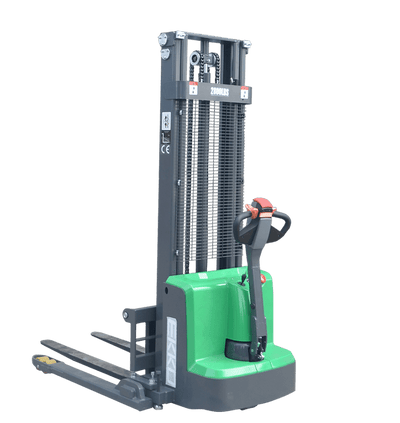

EKKO EB13E-LI Full Powered Straddle Stacker

The EKKO EB13E-Li Lithium Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck, and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing.

Made from high-quality steel and components with durable quality drives to withstand any terrain, usage, impact, and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 2800 lb
  • Raised Height 119"
  • Adjustable Forks 8.3-33.5"
  • Adjustable Legs 45.7-59.1"
  • Fork Length 45.3"
  • Curtis Instrument Controller
  • 24V Center Drive Motor
  • 24V Lift Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3-Year Limited Warranty

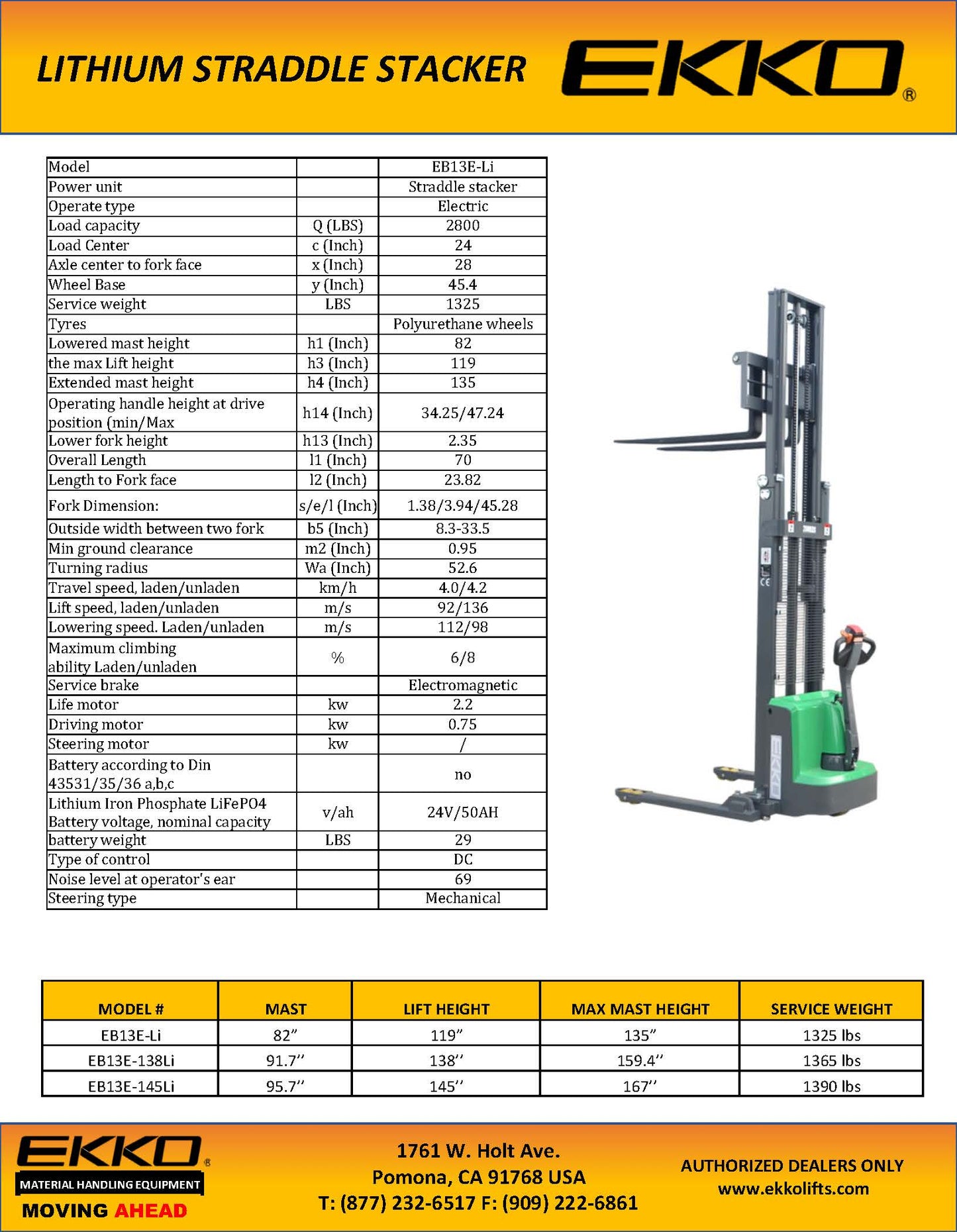

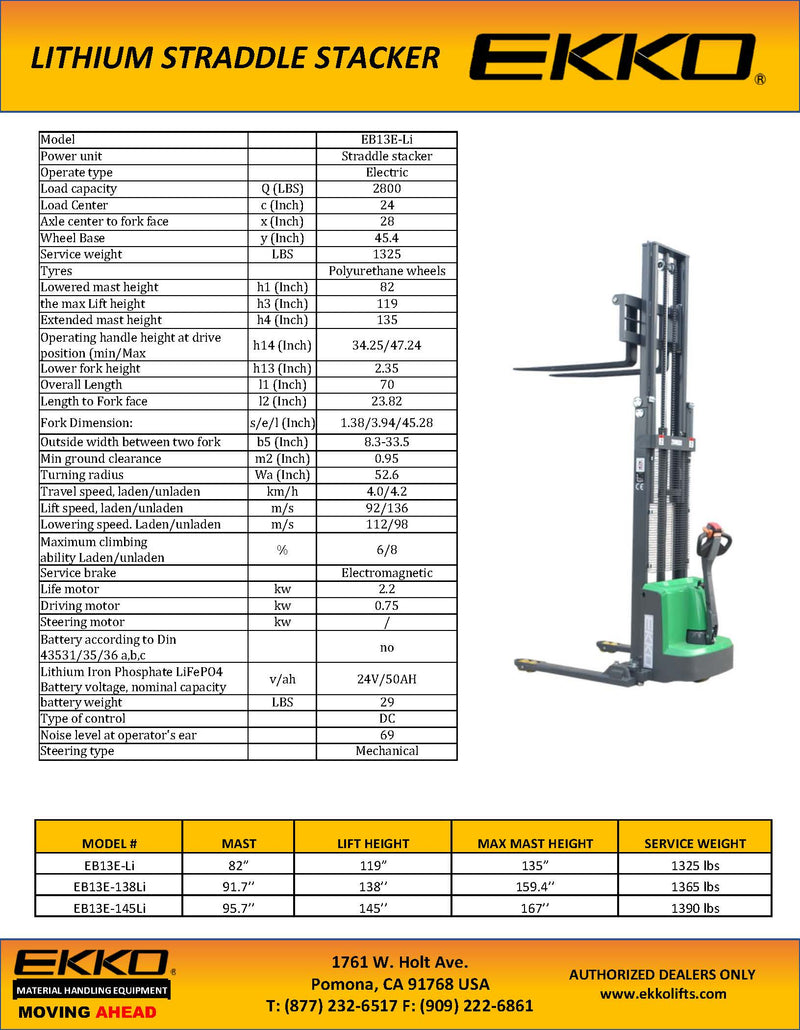

Model



EB13E-LI

Load Capacity

(lbs)

2800

The max. lifting height

(in)

119"

Load center distance

(in)

24

Fork length

(in)

45.3

Single fork width

(in)

4

Overall fork width

(in)

8.3-33.5

Lowered fork height

(in)

2.35

Fixed leg length

(in)

36.5

Adjustable legs

(in)

45.5-59.1

Turning radius

(in)

52.6

Overall length

(in)

70

Max Overall width

(in)

61

Extended mast height

(in)

135

Lowered mast height

(in)

82

Battery voltage (dimensions)

(in)

24V/50Ah Lithium

Internal Charger

V/A

24V/15A

Lifting Motor

V/Kw

2.2kw. Lift speed, laden/unladen:92/136mm/s

Lowering speed, laden/unladen:112/98mm/s

Driving Motor



0.75kw.Driving speed: laden/unladen:4.0/4.2km/h

Service Weight

 (lbs)

1325
