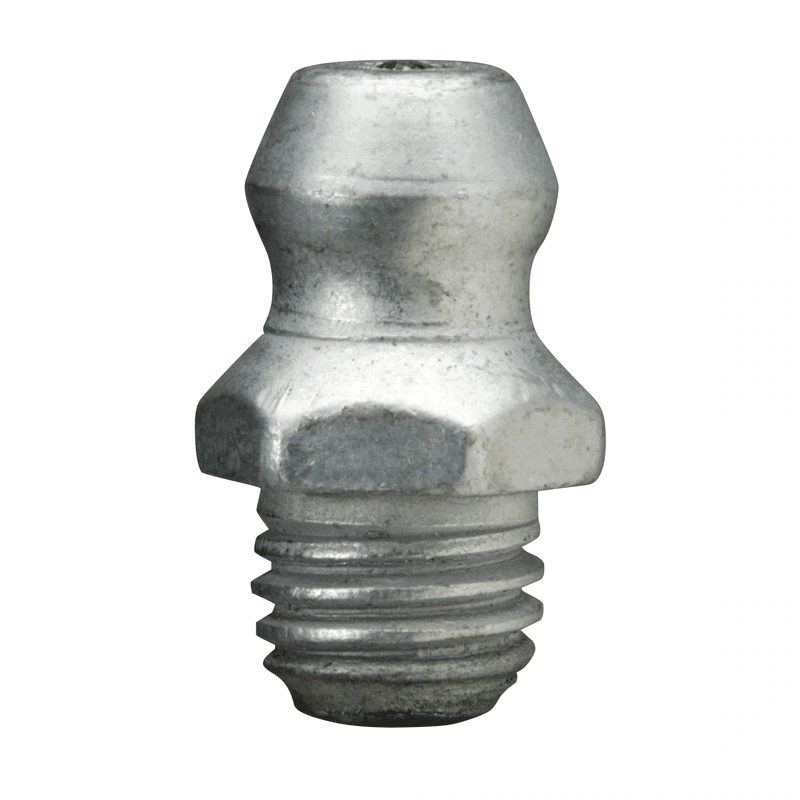

Alemite 1641-B 3/16" Shank Length Straight Lubrication Fitting (Pack of 50)

on-backorder
SKU: 1641-B
Regular price $9.60
Est. Ship Date: Call for Availability
Trusted By

3/16" Shank Length Straight Lubrication Fitting

ALEMITE 1/4" -28 Taper Thread Fitting is used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4" -28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151", to ensure 75% minimum thread height. Alemite fittings conform to SAE J534 standards for automotive OEM use, and Alemite's manufacturing is TS/ISO 16949 certified.

Features

  • Exceeds 72-hour salt spray test
  • Dirt excluding check ball
  • Trivalent zinc plating
  • RoHS compliant
Configuration Straight
Hex Size 5/16"
Overall Length 35/64"
Shank Length 3/16"
