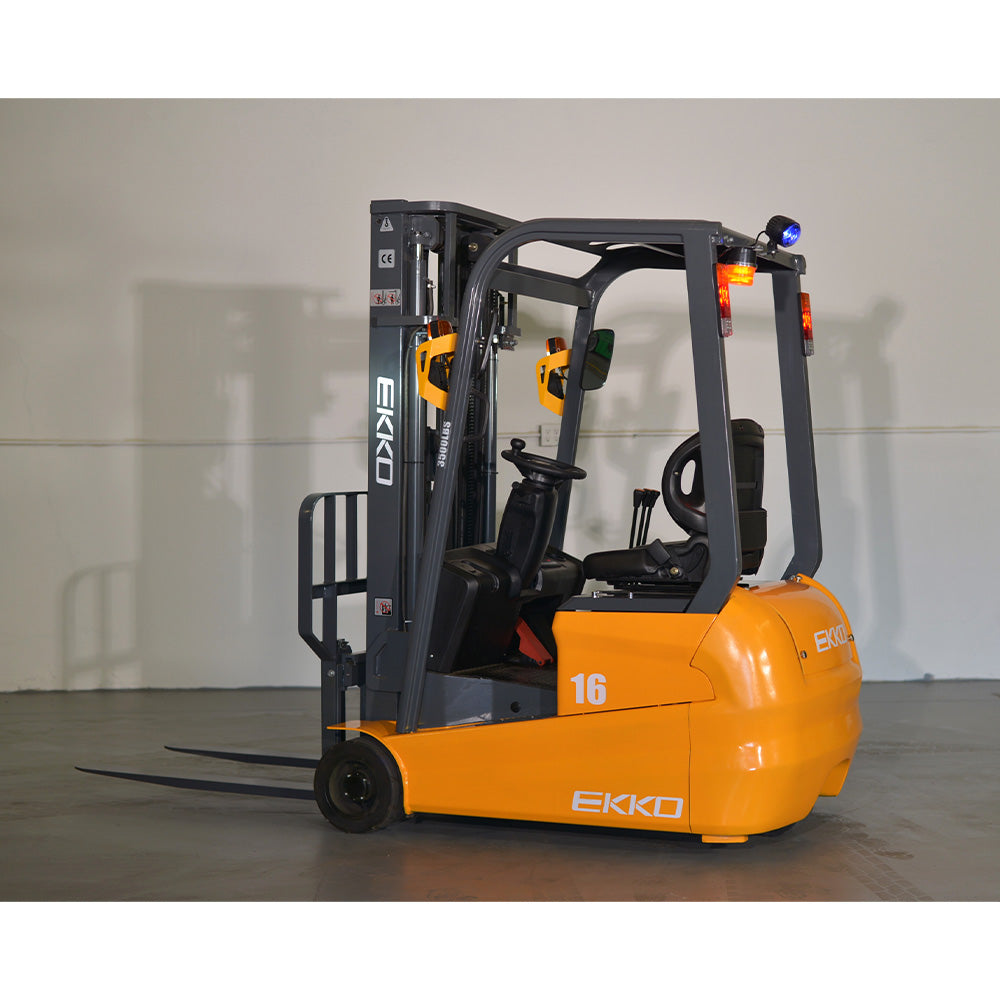

The EKKO EK16A 3 Wheel Electric Forklift is a compact and versatile solution, specifically designed for operation in narrow aisles and confined spaces where traditional forklifts cannot maneuver effectively. It's an ideal choice for indoor use on flat surfaces across various industrial applications.
Constructed from high-quality steel and equipped with advanced components, the EK16A ensures reliable performance under tough conditions. This forklift features a load capacity of 3500 lbs and a raised height of 138/177 inches, complemented by a 24V AC drive motor and a powerful 3.3 kW lift motor. The inclusion of cushion tires, a Zapi controller, and electronic power steering (EPS) enhances maneuverability and control.
Key Specifications:
- Load Capacity 3500 lb
- Raised Height 177" (14.75ft)
- Free Lift 29.5"
- Side Shift
- Adjustable Forks 7.9-26"
- Fork Length 42.1"
- Zapi Controller
- Tilt 2/4 Degree
- 2.2kw AC Drive Motor
- 3.3 kw Lift Motor
- Cushion Tires
- HPS (Hydraulic Power Steering)
- Steel Construction
- Robotic Welding
- Charger Included
- 24V/320AH Battery Included
|
Model |
|
EK16A-177 |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3500 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
49.2 |
|
Lifting height |
(in) |
177 |
|
Free lifting height |
(in) |
34.5 |
|
Lowered mast height |
(in) |
79.9 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
2/4 |
|
Side Shifting Forks |
|
3-way valve |
|
Overall length |
(in) |
107.1 |
|
Overall width |
(in) |
42.1 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/42.1 |
|
Fork adjust width |
(in) |
7.9-26 |
|
Turning radius |
(in) |
58.9 |
|
Max.gradient performance, laden/unladen |
(%) |
6/10 |
|
Lift speed,laden/unladen |
(in/s) |
4.71/10.2 |
|
Lowering speed, laden/unladen |
(in/s) |
11.8/15.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(KW) |
AC 2.2 |
|
Lifting Motor |
(KW) |
3.3 |
|
Battery voltage |
(V/Ah) |
24V/320Ah |
|
Service Weight |
(lb) |
5200 |
|
Model |
|
EK16A-138 |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3500 |
|
Load center distance |
(in) |
20 |
|
Wheel base |
(in) |
49.2 |
|
Lifting height |
(in) |
138 |
|
Free lifting height |
(in) |
34.4 |
|
Lowered mast height |
(in) |
86.6 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
3/6 |
|
Side Shifting Forks |
|
3-way valve |
|
Overall length |
(in) |
107.1 |
|
Overall width |
(in) |
42.1 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/42.1 |
|
Fork adjust width |
(in) |
7.9-26 |
|
Turning radius |
(in) |
58.9 |
|
Max.gradient performance, laden/unladen |
(%) |
6/10 |
|
Lift speed,laden/unladen |
(in/s) |
4.71/10.2 |
|
Lowering speed, laden/unladen |
(in/s) |
11.8/15.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
|
AC |
|
Lifting Motor |
(KW) |
3.3 |
|
Battery voltage |
(V/Ah) |
24V/320Ah |
|
Service Weight |
(lb) |
5020 |
