Valley Craft Dual Stage High Level Stationary Drum Dumper 84"H

In stock
SKU: F80155A5
Regular price $9,235.33

Trusted By

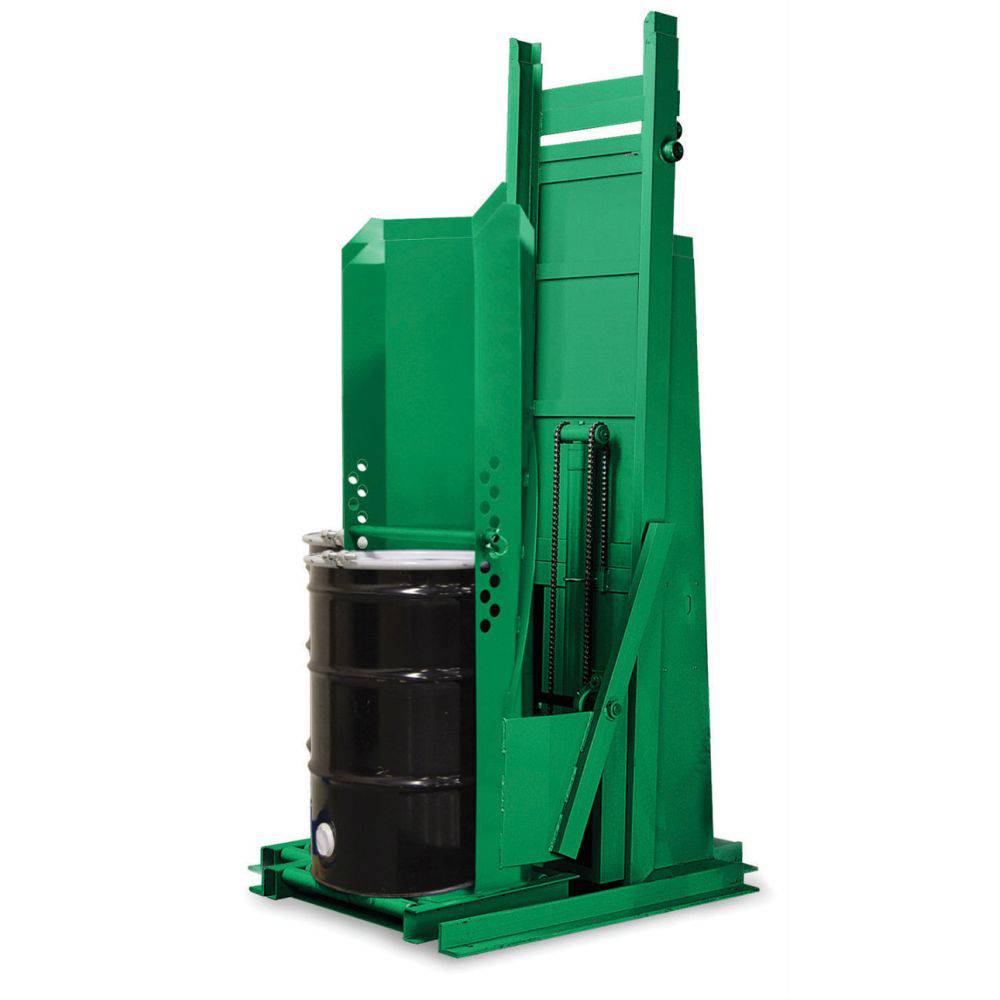

Valley Craft® Dual Stage High-Level Stationary Drum Dumper 84"H

Valley Craft's High-Level Drum Dumpers are available in Stationary or Portable models, 1500 lbs. capacity with dump heights ranging from 72 inch to 120 inch with a maximum dumping angle of 45 degrees. The drum chute rises vertically until arms meet pivot rollers, causing the chute to rotate. With user safety, our number one priority, Valley Craft's drum dumpers include a NEMA12 power up/gravity down unit with adjustable flow control to safely lower the chute to its down position. The 1/60/110V power unit is equipped with a 1 HP motor and a 1GPM pump.

Drum dumpers feature an adjustable hold-down bar to accommodate various drum heights up to 43 inches and are constructed of heavy gauge carbon steel.

Model No. F80155A5
Weight 1,160 lbs.
Load Capacity 1,500 lbs.
Height 84"
