4" x 1-1/4" High Temp Phenolic Wheel Swivel Caster - 250 lbs. Capacity

In stock
SKU: 76HT40GQ9711YY
Regular price $32.81

Rig
Trusted By

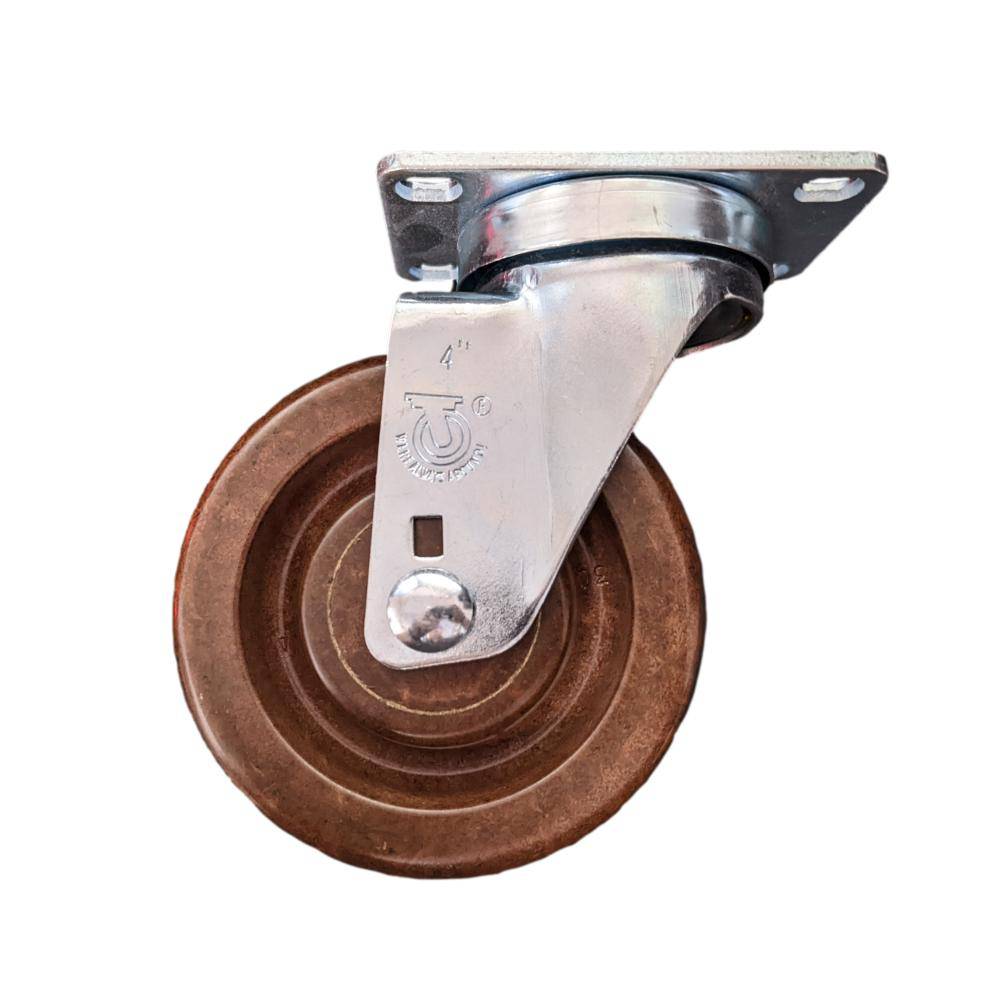

4" x 1-1/4" High Temp. Phenolic Wheel Swivel Caster

These High Temp Phenolic casters can be used for food service/institutional environments. They are light to medium duty with the option of rigid or to swivel.

The high temp phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.

Tread & Core: Phenolic Resin filled with Fiber Glass

Bearing: Stainless Steel 1/2" to 3/8" top hats

Rig: Zinc-Plated Caster, 3-1/8"x4-1/8" (1-3/4"x2-15/16" to 2-3/8"x3-3/8") Mounting Plate

  • Capacity: 250
  • Color: Brown
  • Durometer: Shore D 95 (+/-5)
  • Temperature Range: -40° F to 475° F continuous, 525° F intermittent
Load Capacity 250
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type Phenolic Resin
Core Type Fiber Glass
Bearing Type Stainless Steel 1/2" to 3/8" top hats
Wheel Color Brown
Overall Height 4-9/16
Swivel Radius 3-5/16
Plate Size 3-1/8"x4-1/8"
Bolt Hole Pattern 1-3/4"x2-15/16" to 2-3/8"x3-3/8"
Bolt Hole Diameter 3/8
Durometer Shore D 95 (+/-5)
Temperature Range 1-40° F to 475° F continuous, 525° F intermittent
