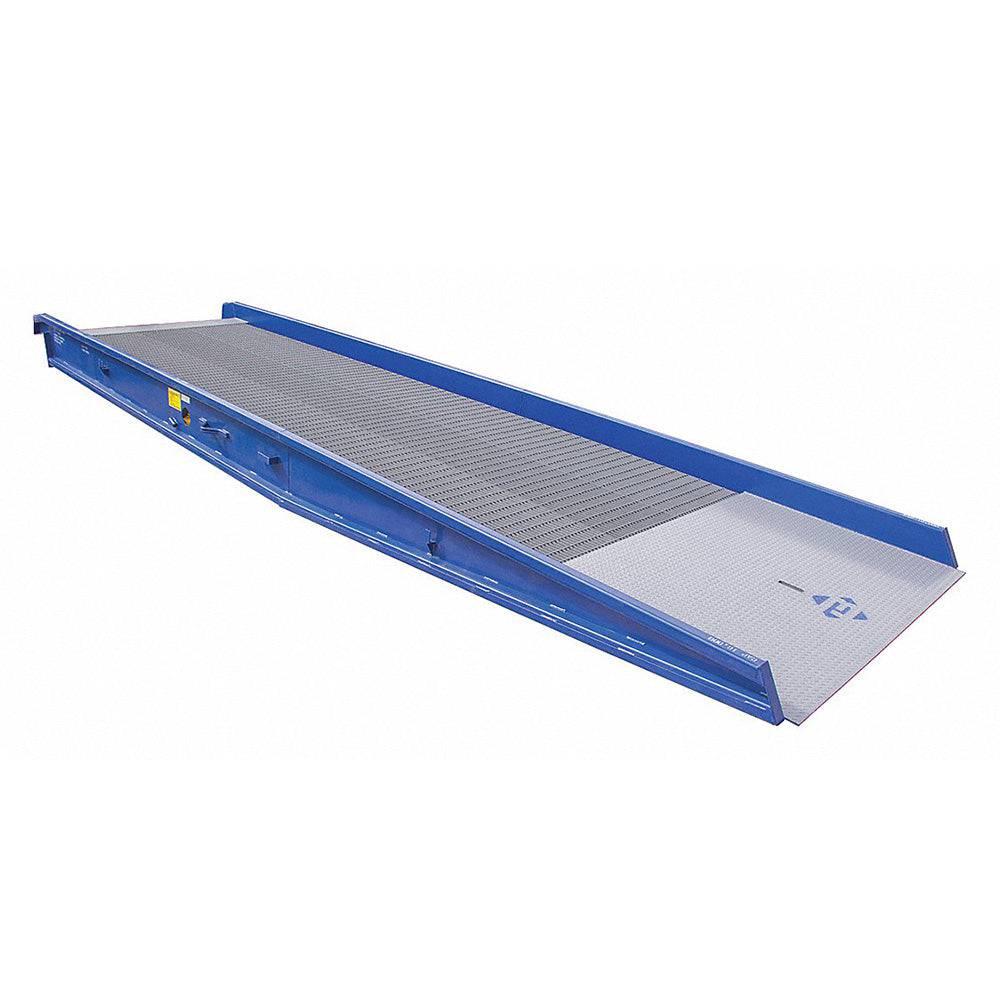

Bluff Stationary Steel Yard Ramp - No Undercarriage

SKU: 16SYS8430NU
Regular price $17,694.00
Est. Ship Date: Call for Availability

Trusted By

Bluff Stationary Steel Yard Ramp - No Undercarriage

Yard Ramps, also called Portable Loading Ramps or Portable Loading Docks, are a safe and cost-effective answer to many loading dock issues. Bluff Manufacturing has more experience and has built more yard ramps than anyone, by far. Our standard design translates into a custom solution that is quickly delivered to your job site and lasts for many years.

Dock-to-ground and back, normally indicate that either a vehicle or forklift needs to be moved back and forth. If the dock is in the 39" to 60"+ range then a 30' all-incline yard ramp is the choice that makes the most sense. A width that allows for the equipment plus some maneuvering room and a decision about a few accessories and you have a perfect solution for your loading dock. Our most popular yard ramp model for this application is our 16SYS7030NU (the NU stands for no undercarriage…if you don’t need to move the yard ramp you can save money).

  • 16,000/20,000lb. Capacity
  • Steel with steel grating
  • Overall width 84 in
  • Useable width 78 in
  • Lip purchase 16 in
  • Curb height 8 in
  • Safety chains included
  • No Undercarriage
  • Dock Mounted Cain Bracket Included
Model No. Length Capacity Weight
16SYS8430NU 30 ft 16,000 lbs 4,464 lbs
20SYS8430NU 30 ft 20,000 lbs 4,902lbs
