Diaphragm Pump Aluminum 1-1/2"
Couldn't load pickup availability

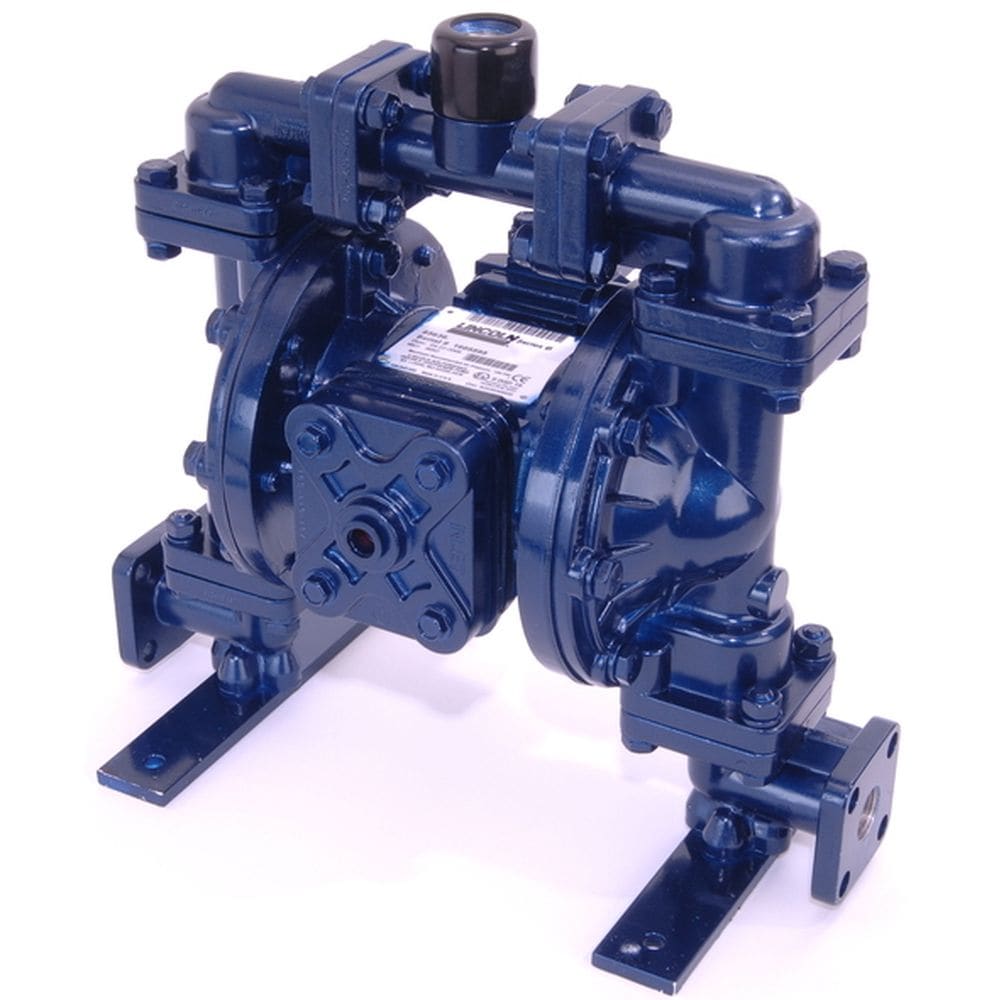

Lincoln® 1-1/2" Polypropylene Diaphragm Pump
Diaphragm pumps are driven by compressed air. The directional air distribution valve and pilot valve - the "air end" - are located in the center section of the pump. Liquid moves through two manifolds and outer chambers of the pump - the "wet end".
Generally, check valves are located at the top and bottom of each outer chamber or on a common manifold. The two outer chambers are connected by suction and discharge manifolds. Lincoln's double diaphragm self-priming design offers many advances over other pumps.
For use with abrasive materials:
- Pumps Viscous Materials
- Environmentally Friendly
- Runs Dry without Damage
|Wetted or Soft Parts
|Size Inlet NPT
|Free Delivery||106 gal.|
|Air Inlet NPT (F)||3/4"|
|Maximum Pressure||125 psi/8,6 bar|
|Element Particle Size||1/4"|
|Application||New/Used oil, AF|
