Diaphragm Pump Aluminum 1"
Couldn't load pickup availability
Trusted By

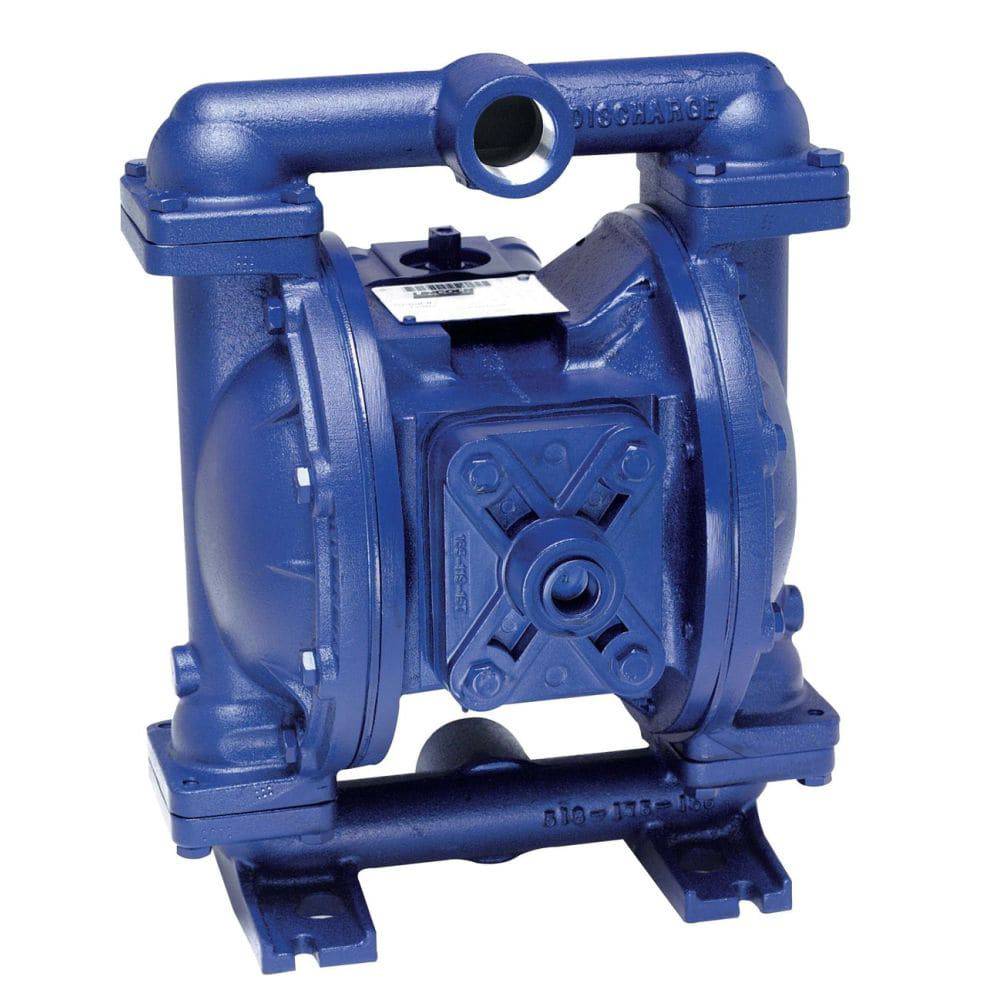

Lincoln® 1" Aluminum Diaphragm Pump
Diaphragm pumps are driven by compressed air. The directional air distribution valve and pilot valve - the "air end" - are located in the center section of the pump. Liquid moves through two manifolds and outer chambers of the pump - the "wet end".
Generally, check valves are located at the top and bottom of each outer chamber or on a common manifold. The two outer chambers are connected by suction and discharge manifolds. Lincoln's double diaphragm self-priming design offers many advances over other pumps.
For use with new oil and antifreeze:
- Pumps Viscous Materials
- Environmentally Friendly
- Runs Dry without Damage
Model No. | 85629 |
Size |
1" |
Pump Body | Aluminum |
Wetted or Soft Parts |
Hytrel |
Size Inlet NPT |
1" |
Outlet NPT |
1" |
Free Delivery | 45 gal. |
Air Intel NPT (f) | 1/2" |
Maximum Pressure | 125 psi/8,6 bar |
Element Particle Size | 1/4" |
Application | New Oil |
