Product Overview

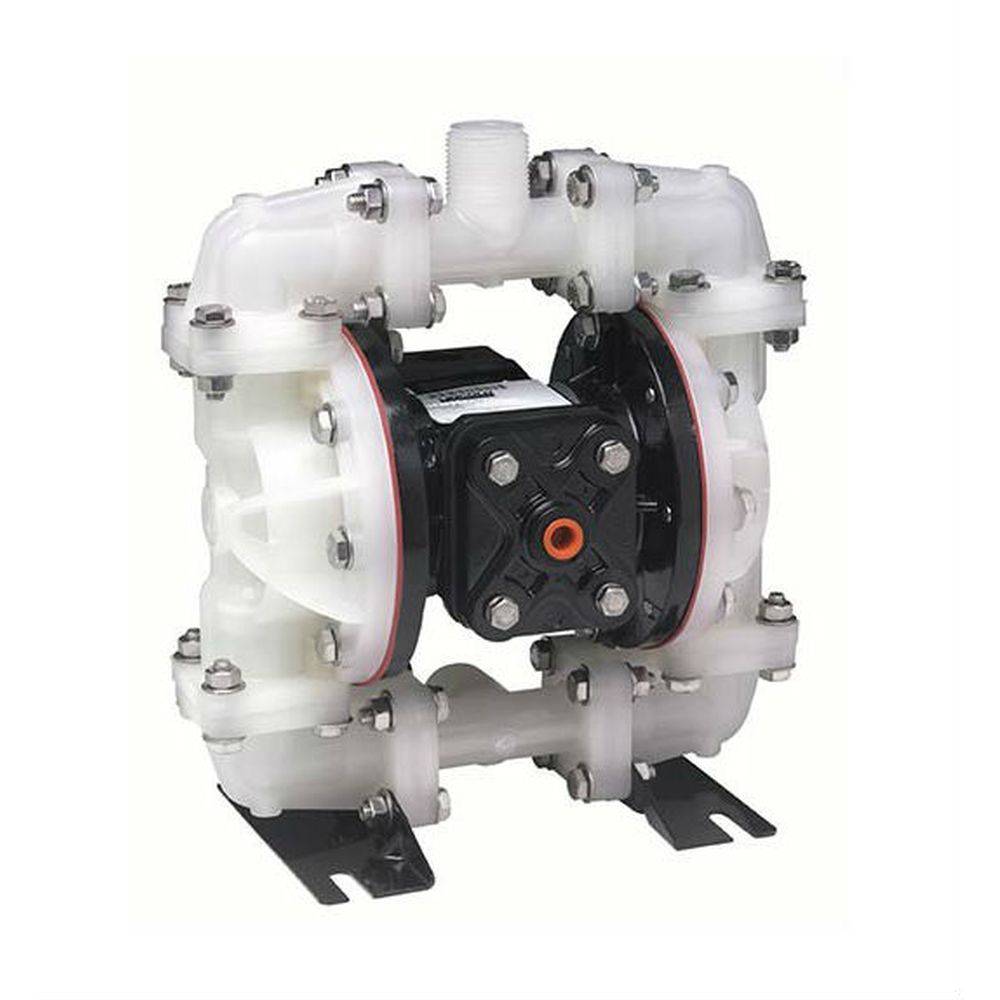

Lincoln 1/2" Polypropylene Diaphragm Pump for Pumping Abrasive Materials Diaphragm pumps are driven by compressed air. The directional air distribution valve and pilot valve - the "air end" - are located in the center section of the pump. Liquid moves through two manifolds and outer chambers of the pump - the "wet end". Generally, check valves are located at the top and bottom of each outer chamber or on a common manifold.
Key source specifications include Size Inlet NPT: 1/4"; Model 85622; Material: Polypropylene; Size: 1/2".
Key Features
- Size Inlet NPT: 1/4"
- Material: Polypropylene
- Size: 1/2"
- Outlet NPT: 1/2" / 1/2"
- Maximum Pressure: 100 psi/ 6, 89 bar
- Element Particle Size: 1/8"
Ideal For
Choose this product if you need:
- Replacement, repair, or installation work involving Abrasive Materials
- High Abrasion Materials
- use with abrasive materials
- Systems operating within the listed pressure specifications
Not Ideal For
Not ideal for equipment outside the listed Abrasive Materials compatibility, pressures above the listed 100 psi/ 6, 89 bar maximum, or installations requiring a different size than 1/2".
Product Details
Review the product details below to confirm the size inlet npt, model / mpn, material, size, outlet npt match your equipment or lubrication system.
Shared Product Details
| Brand | Lincoln Industrial |
| Model / MPN | 85622 |
| Material | Polypropylene |
| Size | 1/2" |
| Pump Body | Polyprop |
| Size Inlet NPT | 1/4" |
| Outlet NPT | 1/2" / 1/2" |
| Maximum Pressure | 100 psi/ 6, 89 bar |
| Element Particle Size | 1/8" |
| Application | High Abrasion Materials |
| Free Delivery |
14 gal. |
| Air Inlet NPT (f) |
1/4" |
Compatibility
For use with abrasive materials:
- Pumps Viscous Materials
- Environmentally Friendly
- Runs Dry without Damage
Additional Product Information
Generally, check valves are located at the top and bottom of each outer chamber or on a common manifold. The two outer chambers are connected by suction and discharge manifolds. Lincoln's double diaphragm self-priming design offers many advances over other pumps.
Frequently Asked Questions
What does this fit?
The original product description lists compatibility with: Pumps Viscous Materials, Environmentally Friendly, Runs Dry without Damage.
What model number should I verify?
Confirm model or manufacturer part number 85622.
What pressure is listed?
The supplied specifications list 100 psi/ 6, 89 bar.
