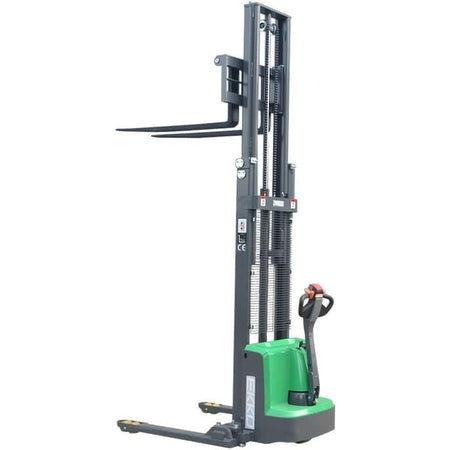

EKKO EB13ES-LI Full Powered Straddle Stacker with Side Shift - 2800 lbs Capacity - 119" Height
The EKKO EB13ES-Li Lithium Electric Straddle Stacker with Side Shift is a highly versatile material handling tool, combining the features of a forklift, reach truck, and walkie stacker. It's exceptionally well-suited for tasks such as loading and unloading trucks, and working in loading docks, stock rooms, manufacturing floors, and warehouses. This stacker boasts a load capacity of 2800 lbs and a raised height of 119 inches, with the added functionality of a side shift for precise load positioning.
Key Features:
- Efficient Load Capacity: Capable of handling up to 2800 lbs.
- Elevated Lift Height: Achieves a lifting height of 119 inches.
- Side Shift Functionality: Enhances load handling precision and flexibility.
- Robust Design: Constructed from high-quality steel with durable drives to withstand various conditions.
- Lithium Battery Power: Equipped with a 24V/50Ah Lithium battery for sustained performance.
- Ergonomic Controls: Features an ergonomic handle and user-friendly controls for ease of operation.
- Durable Construction: Steel built with robotic welding ensures long-term durability.
- Warranty: Comes with a 3-year limited warranty.
Specifications:
- Model: EB13ES-LI
- Turning Radius: 52.6 inches
- Service Weight: 1,635 lbs
EKKO EB13Es-Li Electric Straddle Stacker Side Shift: A top-tier choice for businesses seeking a multifunctional, reliable, and advanced electric material handling solution.
- Load Capacity 2800 lbs
- Raised Height 119"
- Charger Included
- 3 Years Limited Warranty
| Feature | Specification |
|---|---|
| Model | EB13ES-LI |
| Load Capacity (lbs) | 2800 |
| Max. Lifting Height (in) | 119" |
| Load Center Distance (in) | 24 |
| Fork Length (in) | 45.3 |
| Single Fork Width (in) | 4 |
| Overall Fork Width (in) | 8.3-33.5 |
| Lowered Fork Height (in) | 2.35 |
| Fixed Leg Length (in) | 36.5 |
| Adjustable Legs (in) | 45.5-59.1 |
| Turning Radius (in) | 52.6 |
| Overall Length (in) | 70 |
| Max Overall Width (in) | 61 |
| Extended Mast Height (in) | 135 |
| Lowered Mast Height (in) | 82 |
| Battery Voltage (dimensions) | 24V/50Ah Lithium |
| Internal Charger (V/A) | 24V/15A |
| Lifting Motor (V/Kw) | 2.2kw |
| Lift Speed, Laden/Unladen (mm/s) | 92/136 |
| Lowering Speed, Laden/Unladen (mm/s) | 112/98 |
| Driving Motor (kw) | 0.75kw |
| Driving Speed: Laden/Unladen (km/h) | 4.0/4.2 |
| Service Weight (lbs) | 1635 |
