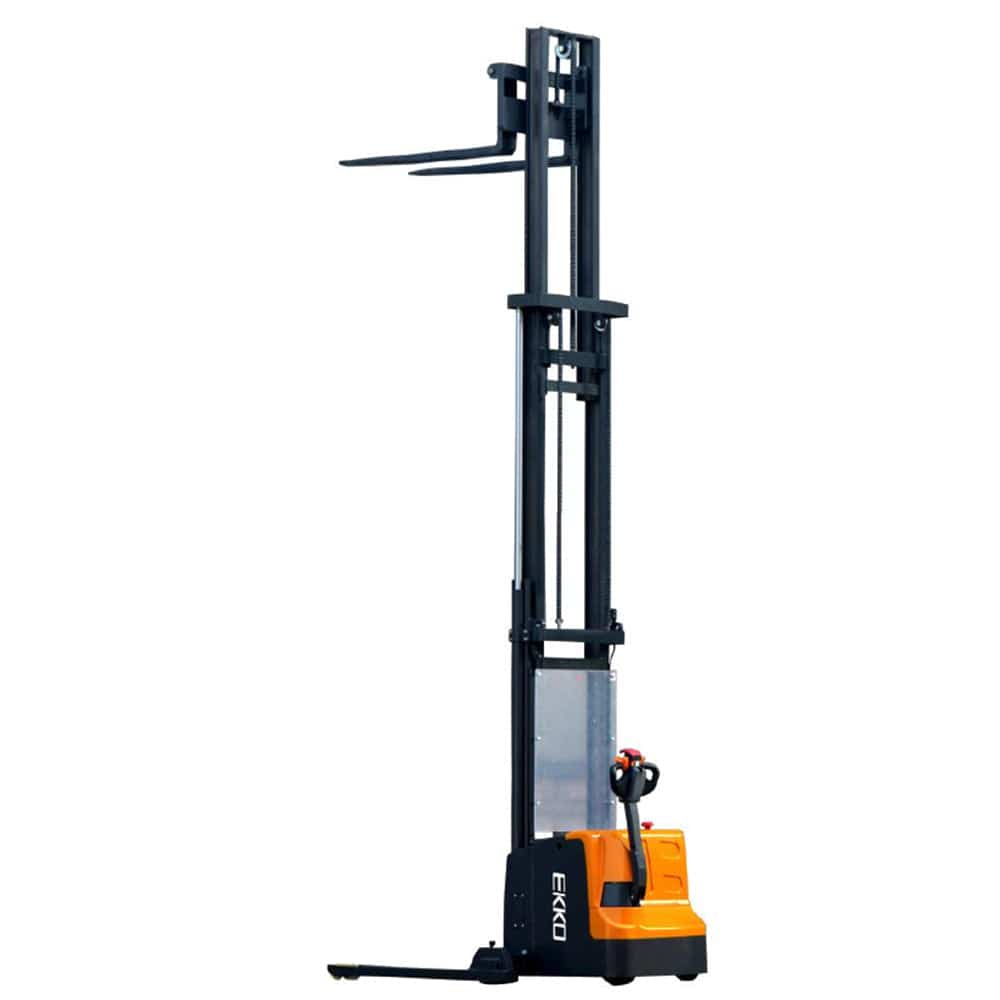

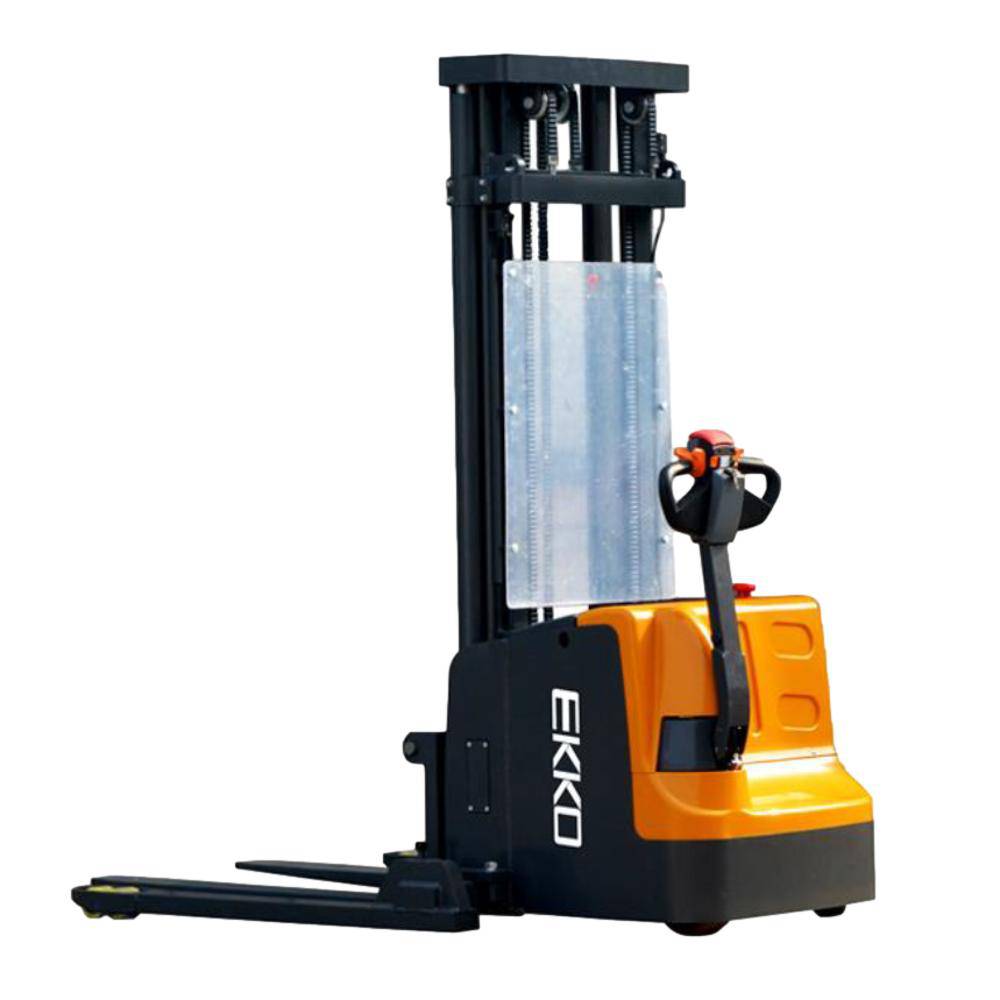

EKKO EB20E Electric Straddle Stacker - 138/177" Height

In stock
SKU: EB20E
Regular price $16,998.00
Est. Ship Date: Monday, June 24th

  • 4400lb Load Capacity
  • 177-Inch Lift Height
  • Triple Mast Design

Max Height
Trusted By

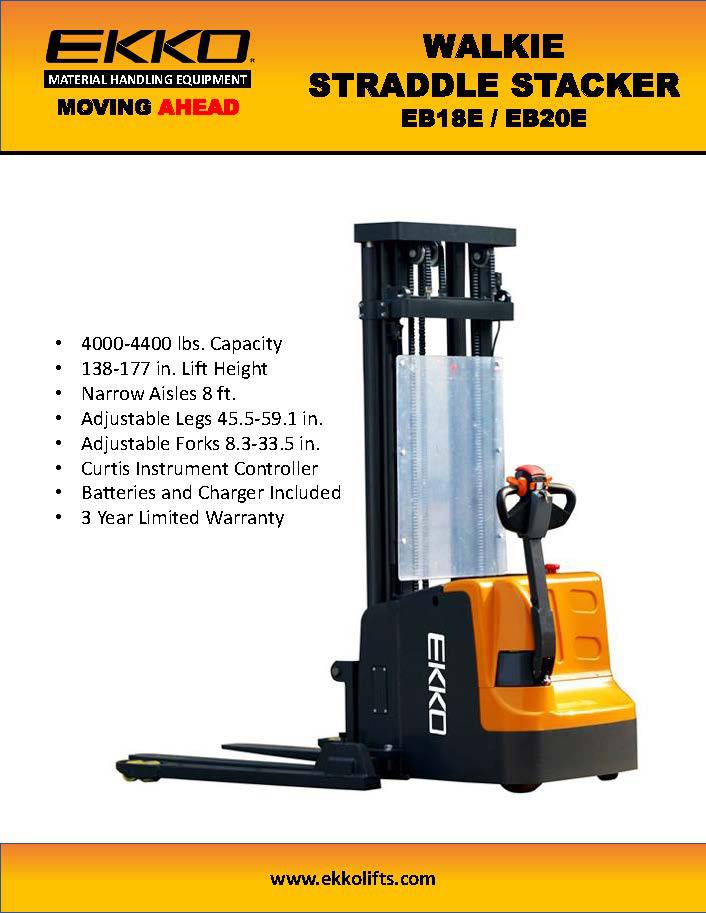

EKKO EB18E/EB20E Full Powered Straddle Stacker

The EKKO EB20E Electric Straddle Stacker is an innovative material handling solution, combining the features of a forklift, reach truck, and walkie stacker. It is perfectly suited for a variety of tasks including loading and unloading trucks, and working in loading docks, stock rooms, manufacturing floors, and warehouses. With a load capacity of 4400 lbs and a raised height of 138 or 177 inches, this straddle stacker is constructed from high-quality steel and components, ensuring durability and reliability in various operational environments.

Key Features:

  • High Load Capacity: Capable of lifting up to 4400 lbs.
  • Extended Lifting Height: Reaches up to 138 or 177 inches, ideal for high-level stacking.
  • Adjustable Forks and Legs: Offers versatility for handling different pallet sizes.
  • Robust Construction: Made with high-quality steel and durable components for long-term use.
  • Efficient Power System: Features a 24V AC drive motor and a 24V lift motor, with a triple mast for extended reach.
  • Ergonomic Design: Includes an ergonomic handle and controls for ease of operation.
  • Polyurethane Wheels: Ensure smooth movement and stability.
  • Warranty: Comes with a 3-year limited warranty for added peace of mind.

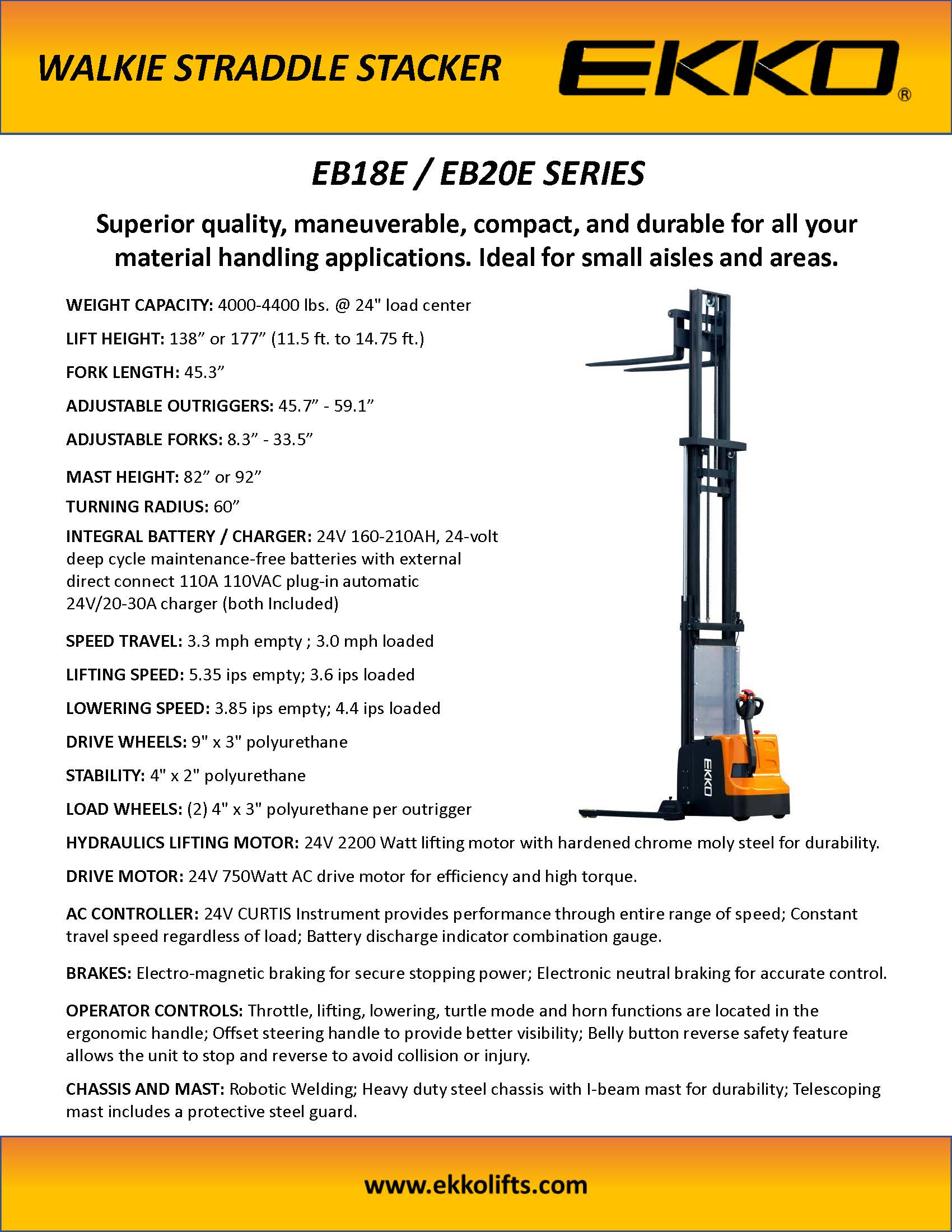

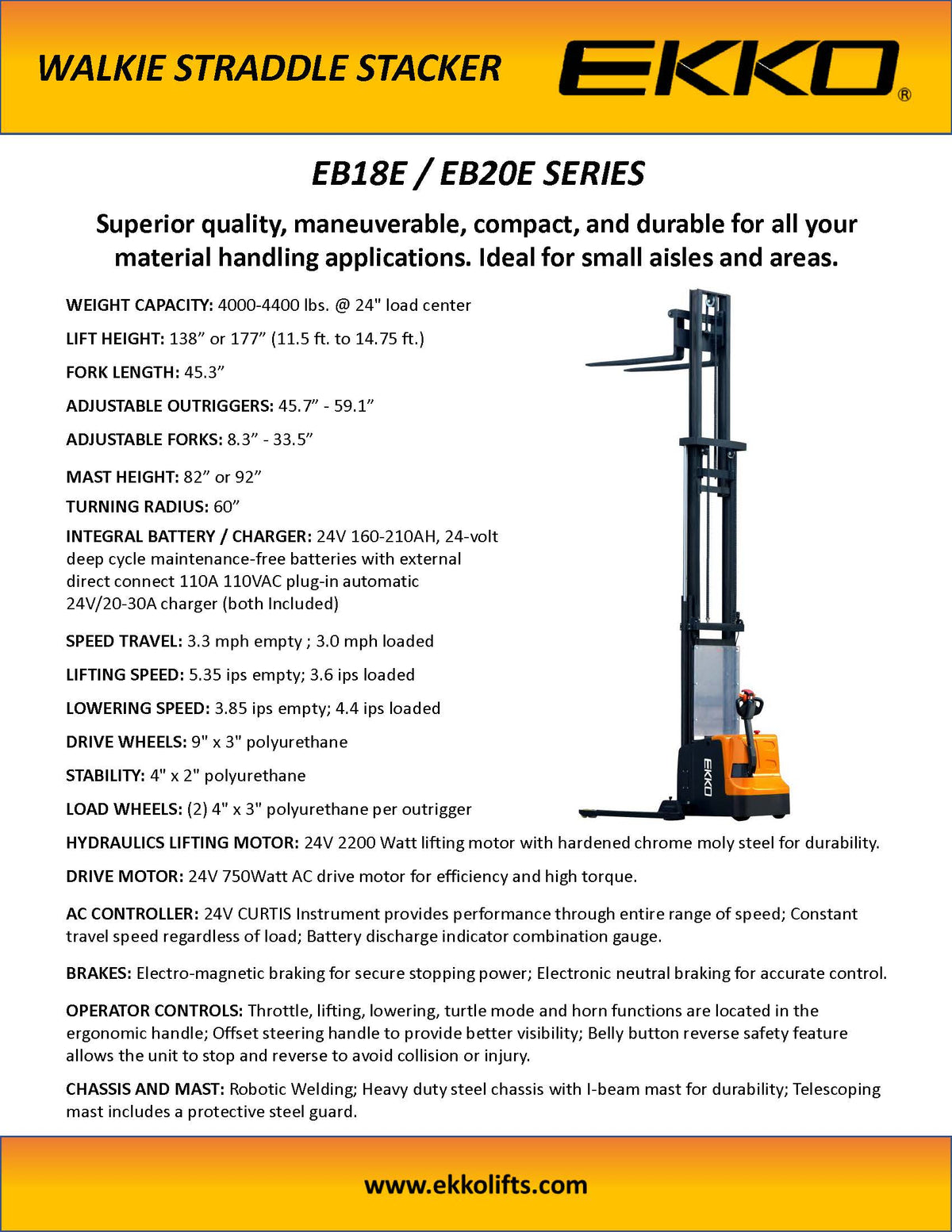

Specifications:

  • Model: EB20E
  • Service Weight: 2800 lbs
  • Fork Length: 45.3 inches
  • Battery: 24V/210Ah with a 24V/30A charger

EKKO EB20E Electric Straddle Stacker: A versatile, powerful, and reliable choice for businesses looking for an efficient electric stacker for their material handling needs.

  • Load Capacity 4000 lb
  • Raised Height 138"/177"
  • Adjustable Forks 9.8-31.5"
  • Adjustable Legs 45.5-59.1"
  • Fork Length 45.3"
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • Battery 24V/160Ah
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 24V/20A Included
  • Batteries Included
  • 3 Years Limited Warranty

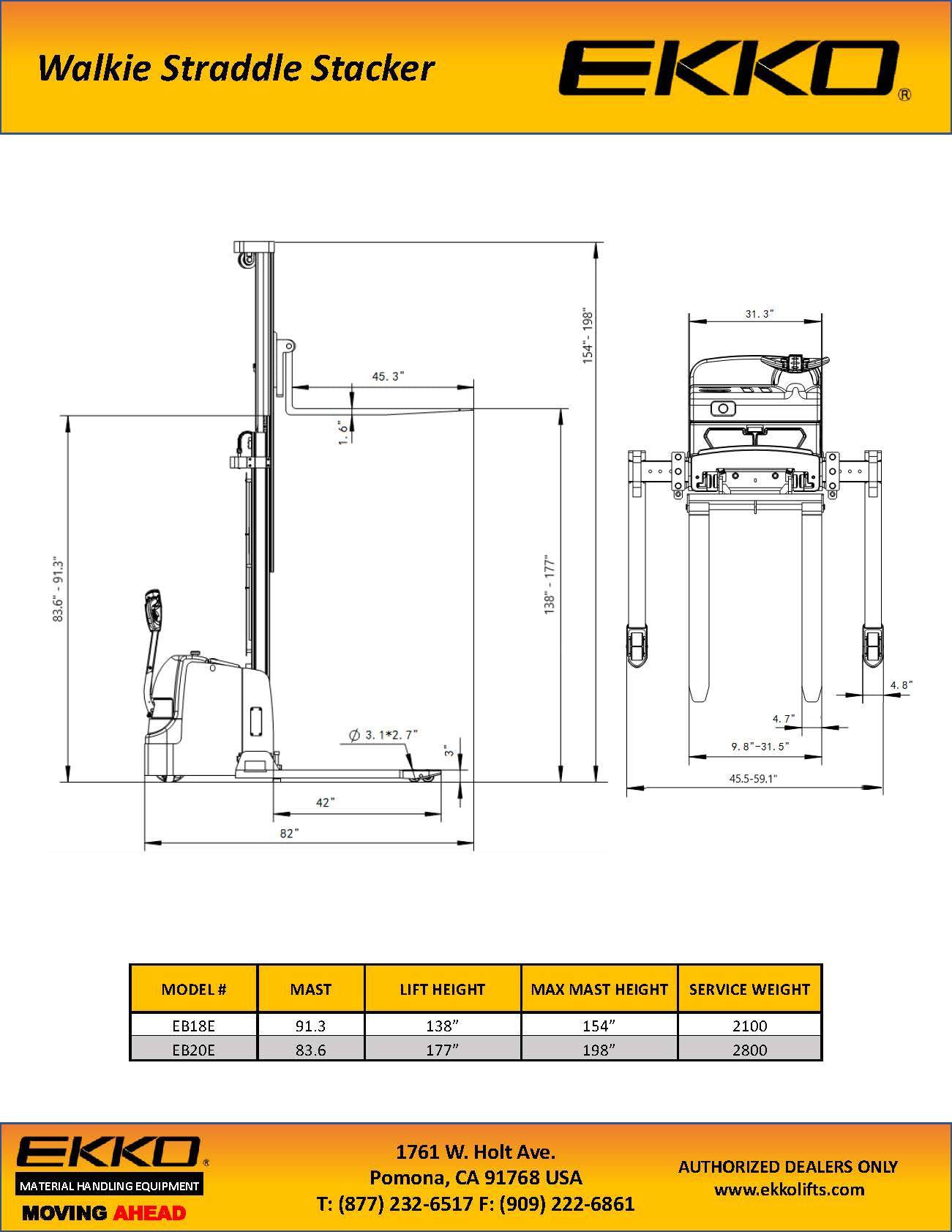

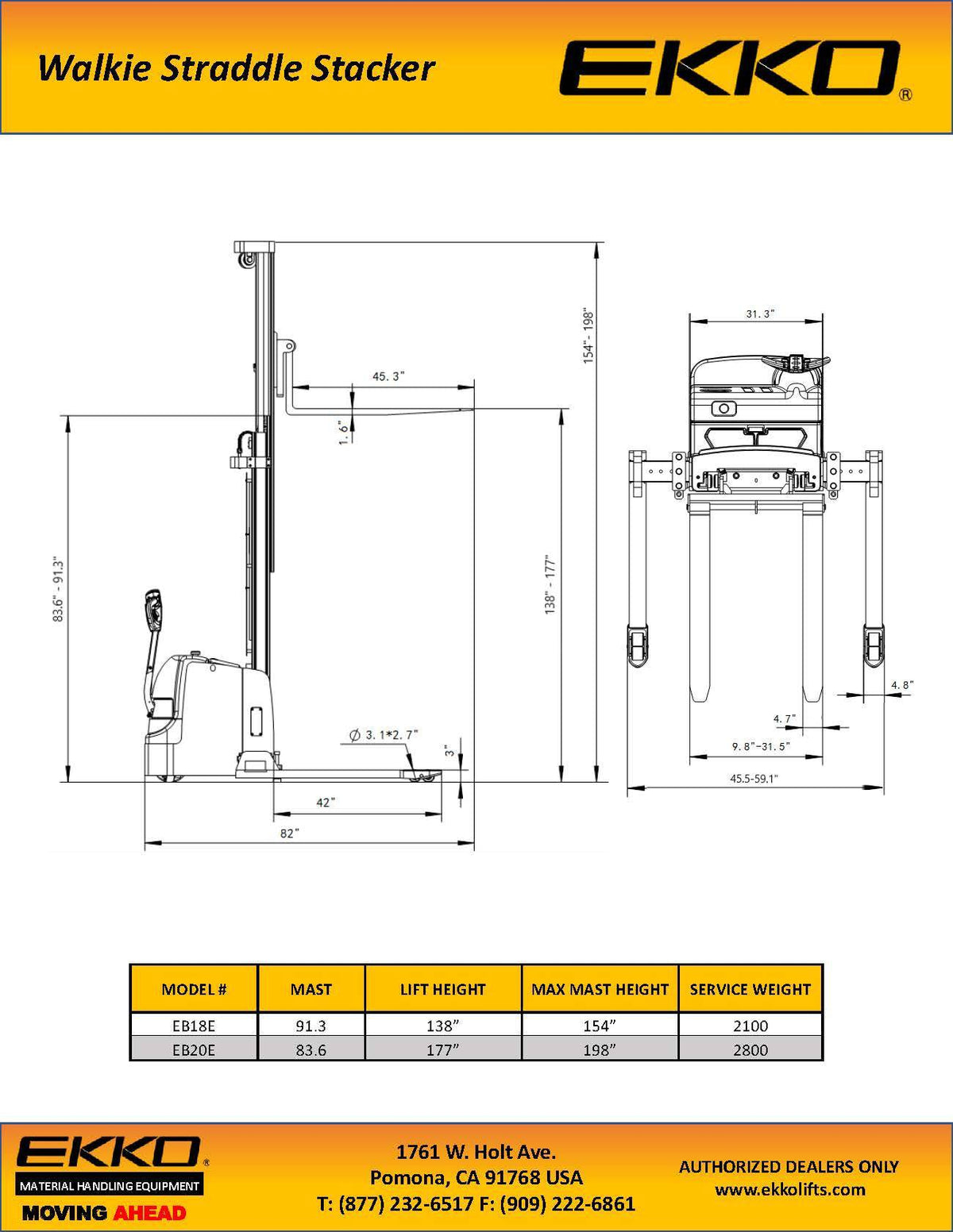

    Model



    EB18E

    Load Capacity

    (lb)

    4000

    The max. lifting height

    (in)

    138

    Load center distance

    (in)

    24

    Fork length

    (in)

    45.3

    Single fork width

    (in)

    4.7

    Overall fork width

    (in)

    9.8-31.5

    Lowered fork height

    (in)

    2.35

    Fixed leg length

    (in)

    36.5

    Adjustable legs

    (in)

    45.5-59.1

    Turning radius

    (in)

    60

    Overall length

    (in)

    82

    Max width

    (in)

    61

    Extended mast height

    (in)

    154

    Lowered mast height

    (in)

    91.3

    Battery voltage

    (V/Ah)

    2x12V/160Ah

    The charger

    (V/A)

    24V/20A

    Lifting Motor

    (W)

    3000 Watt, Lift speed, laden/unladen:92/136mm/s                                Lowering speed, laden/unladen:112/98mm/s

    Driving Motor

    (W)

    1500 Watt, Driving speed: laden/unladen:4.0/4.2km/h

    Service Weight

    (lb)

    2100
