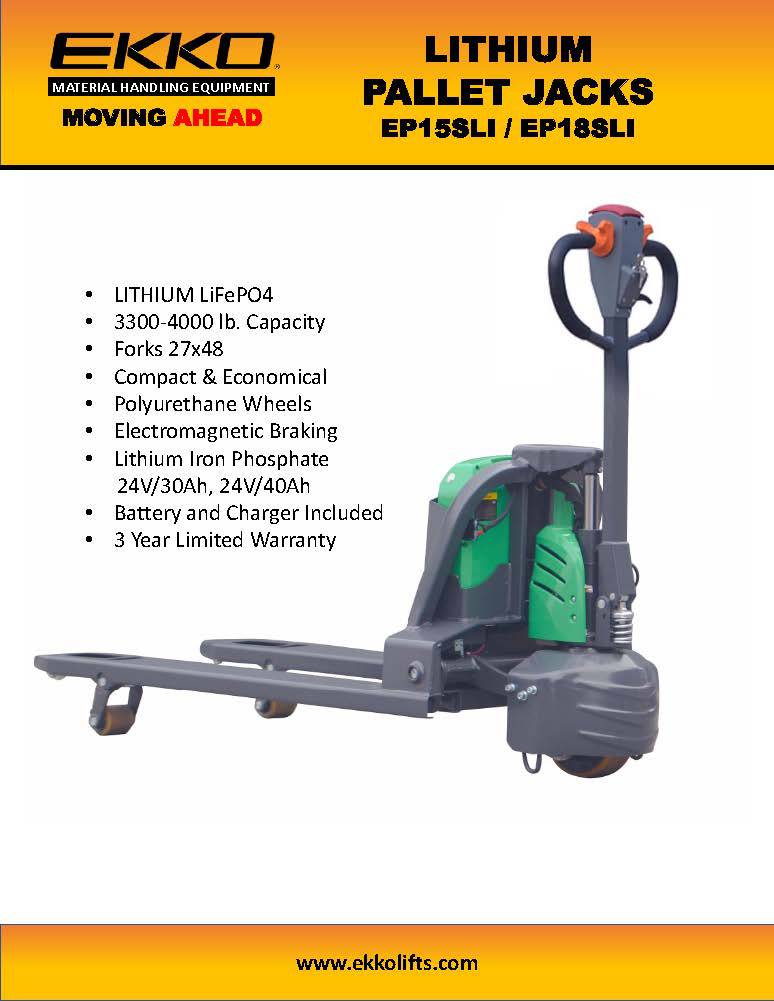

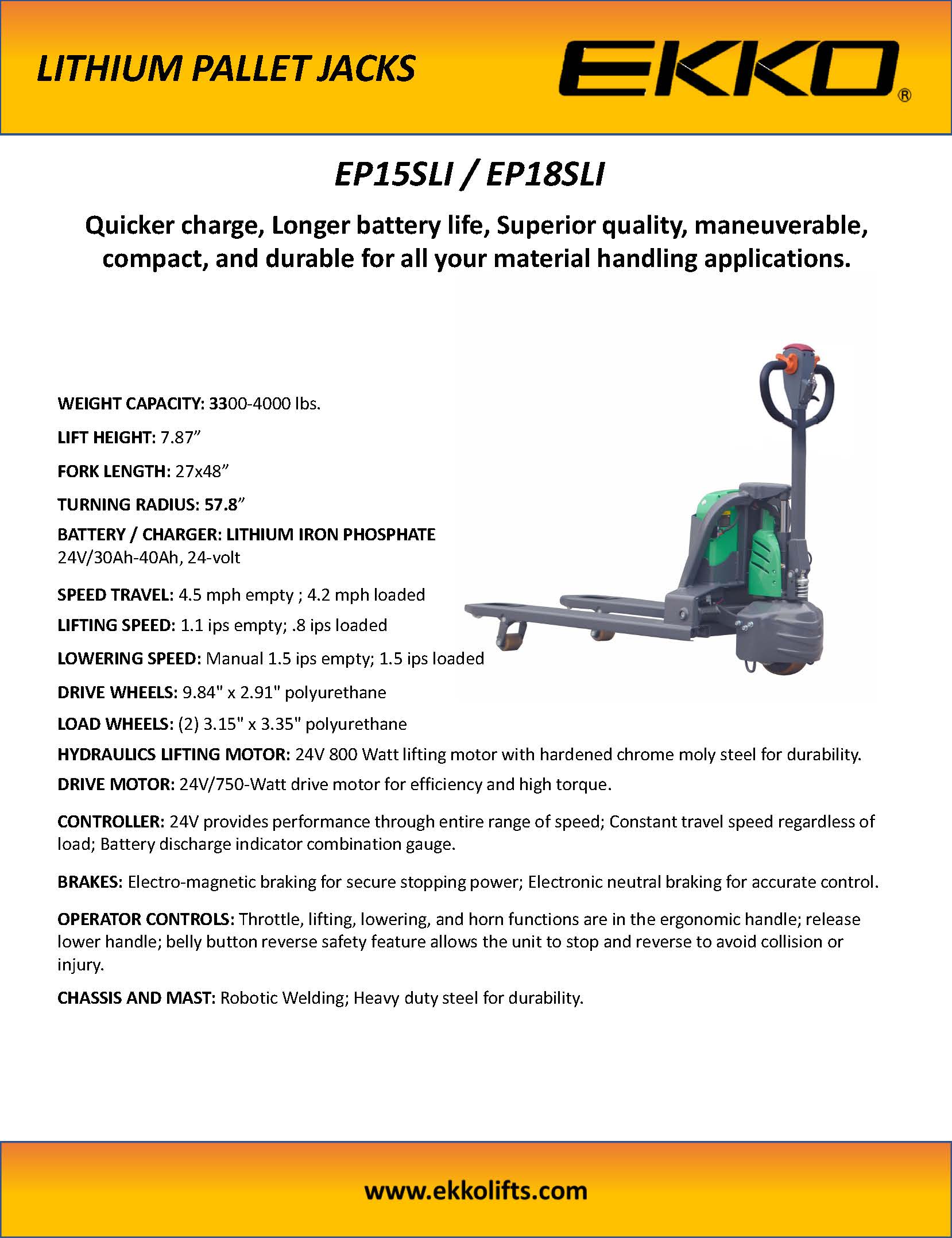

Product Brochure
Couldn't load pickup availability
Trusted By

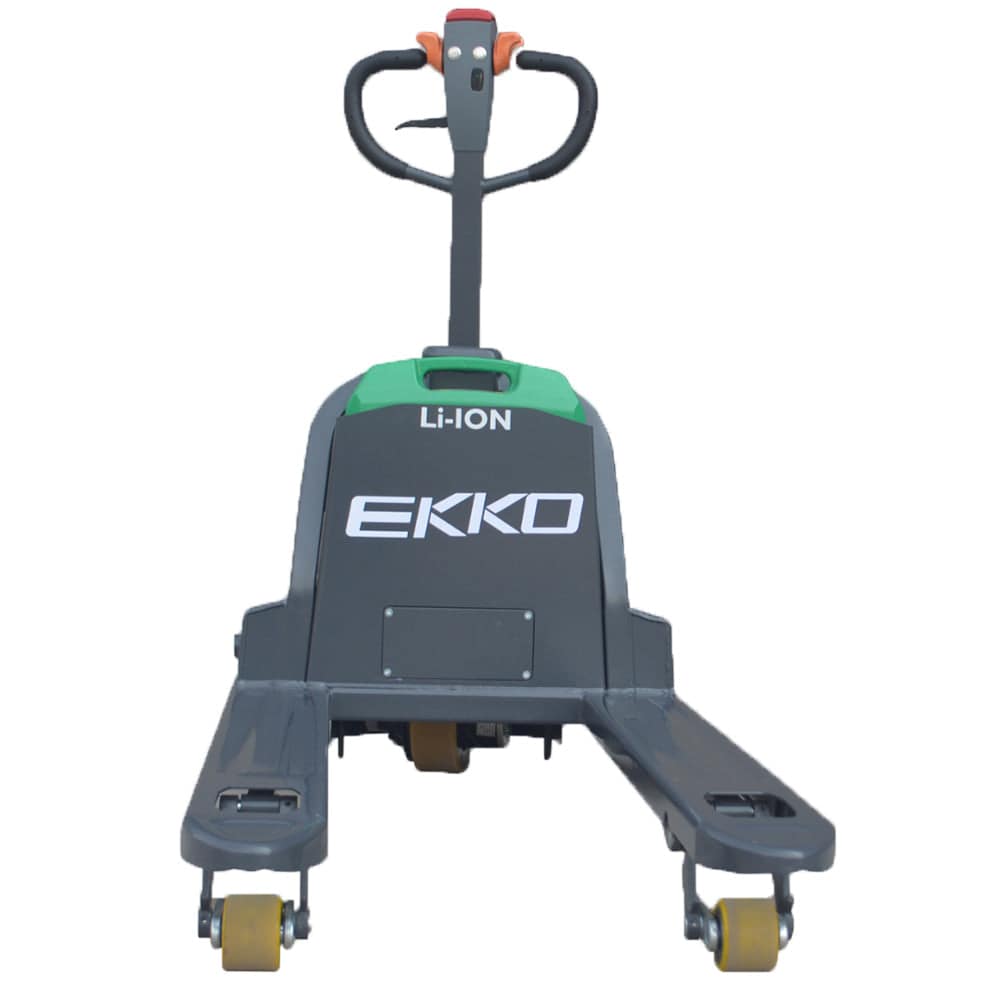

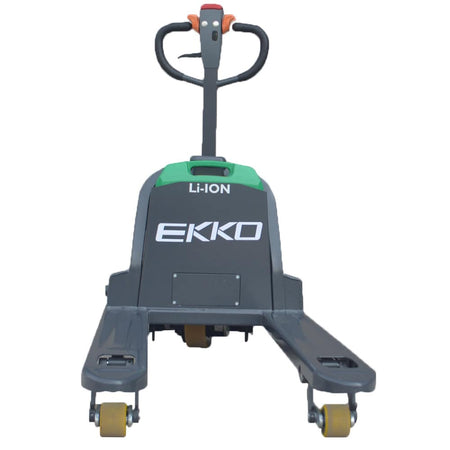

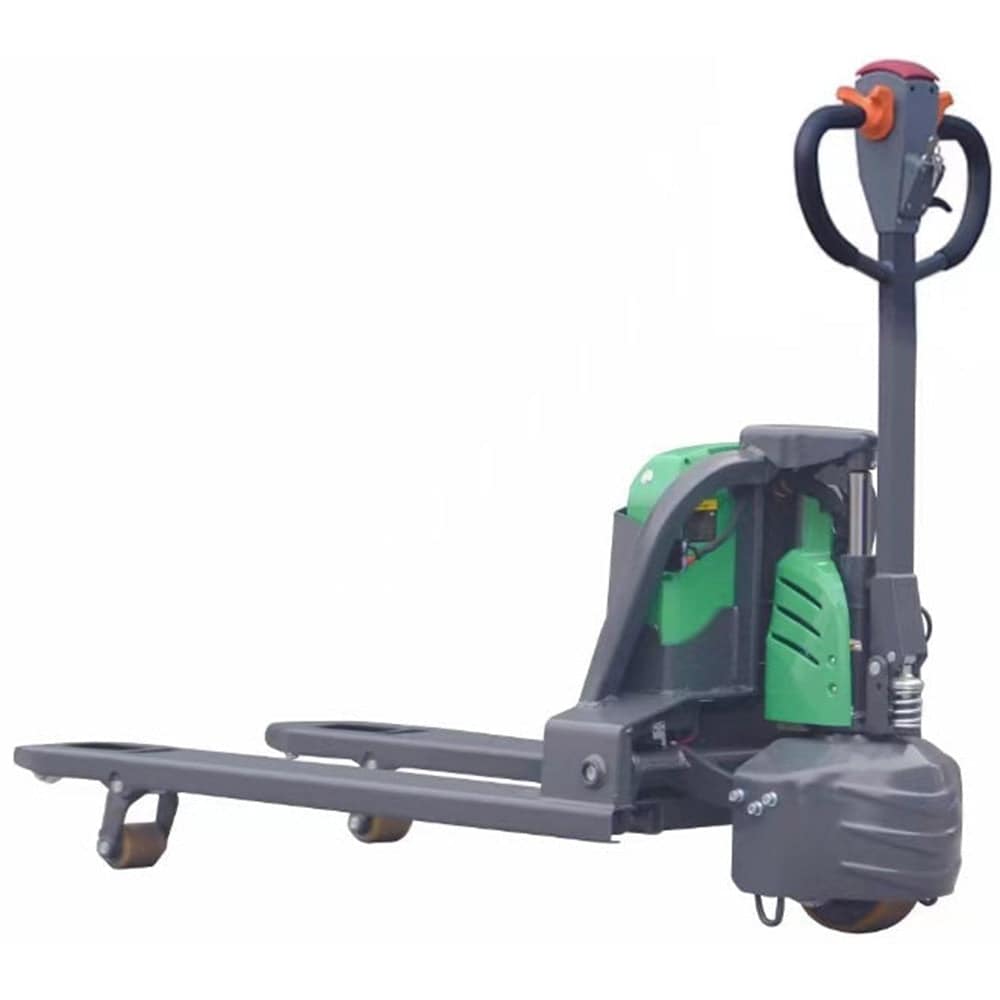

EKKO LIFTS Lithium-Ion Pallet Jack
Discover the efficiency and versatility of the EKKO EPF15LI Lithium Iron Phosphate Electric Walkie Pallet Jack, a modern solution for your material handling needs. Equipped with full powerlifting and driving capabilities, this pallet jack is perfect for various settings including loading docks, stock rooms, and more.
Key Features:
- Power Source: Lithium 24V for reliable and efficient operation.
- Capacity: Handles loads up to 3300 lbs, suitable for a broad range of applications.
- Fork Size: Comes with 27x48 inch forks, optimized for standard pallets.
- Maneuverability: Offers pinwheel capability for navigating tight spaces.
- Durability: Steel construction and robotic welding ensure a long service life.

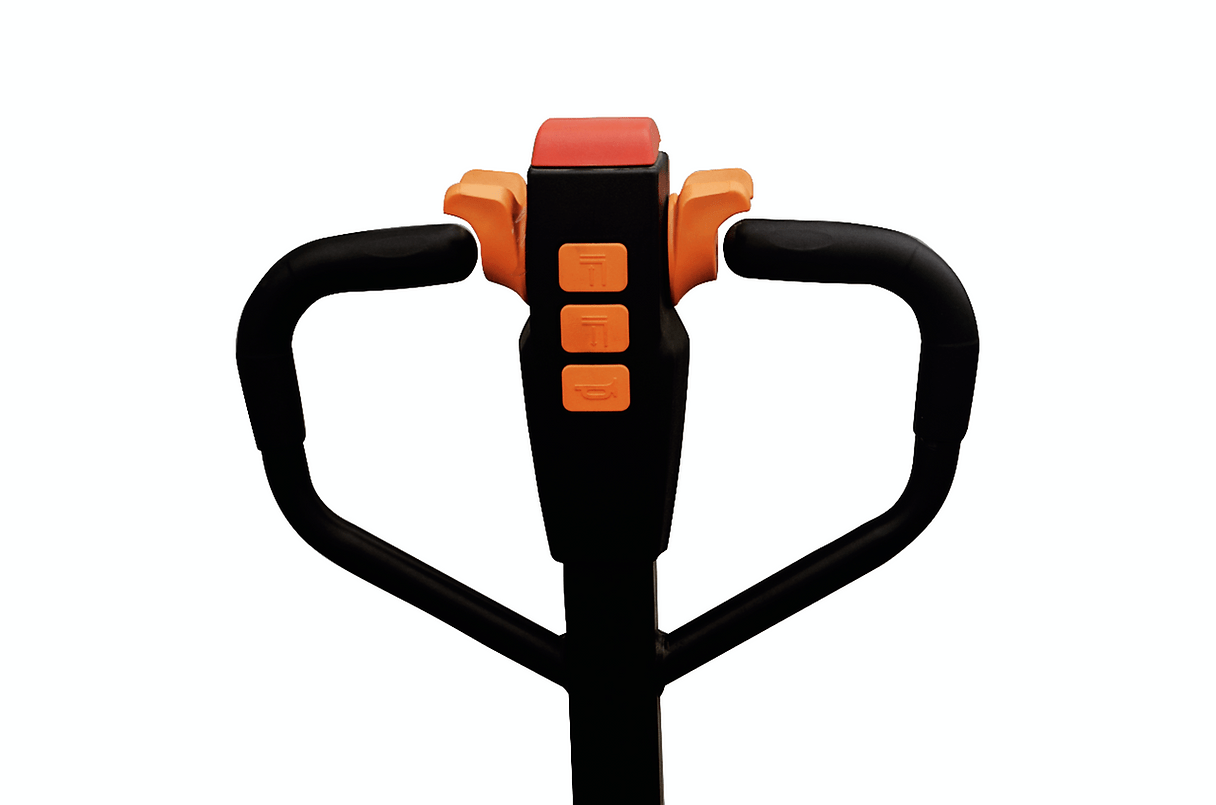

- Ergonomics: Designed with an ergonomic handle and controls for comfortable operation.
- Wheels: Polyurethane wheels provide smooth movement and durability.
- Battery: Includes a 24V/30Ah Lithium Iron Battery LiFePO4, ensuring long-lasting performance.
Specifications Overview:
- Model: EPF15LI
- Operation: Electric, Walkie
- Load Centre: 23.6 inches
- Tire Material: Polyurethane (PU)
- Driving Wheel Size: Φ8.27x2.76 inches
- Bearing Wheel Size: Φ3.15x3.35 inches
- Tread: 21.06 inches
- Lifting Height: 7.87 inches
- Overall Length: 65.86 inches
- Overall Width: 26.97 inches
- Minimum Ground Clearance: 1.38 inches
- Aisle Width for Pallets Crossways: 73.78 inches
- Aisle Width for Pallets Lengthways: 75.75 inches
- Turning Radius: 57.8 inches
- Service Weight: 345 lbs
Equipped with advanced features such as an electromagnetic brake, DC drive control, and a noise level of ≤70 dB(A), the EKKO EPF15LI is designed for safe and quiet operation. Whether you're moving goods in a warehouse or unloading trucks, this electric walkie-pallet jack offers the power and precision you need to get the job done efficiently.

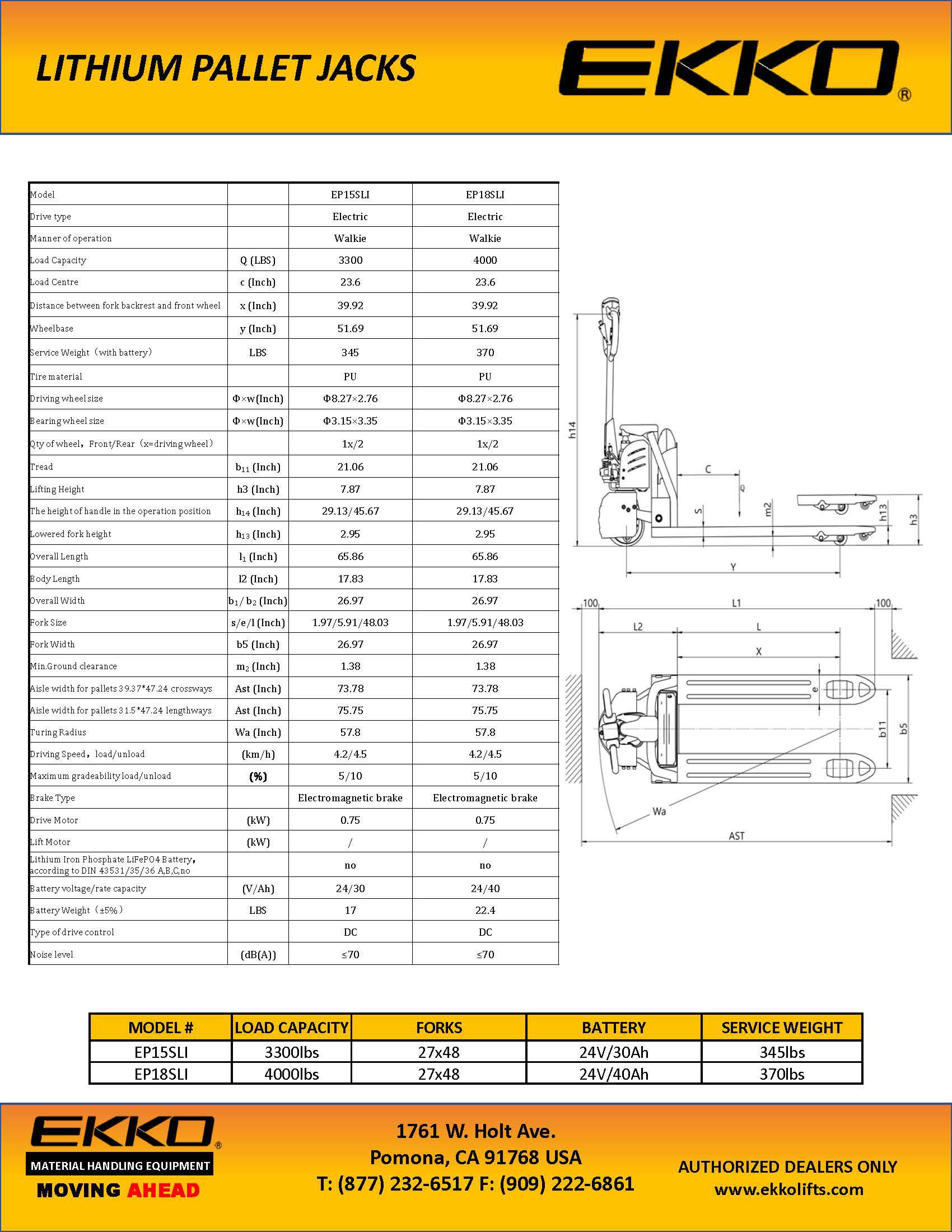

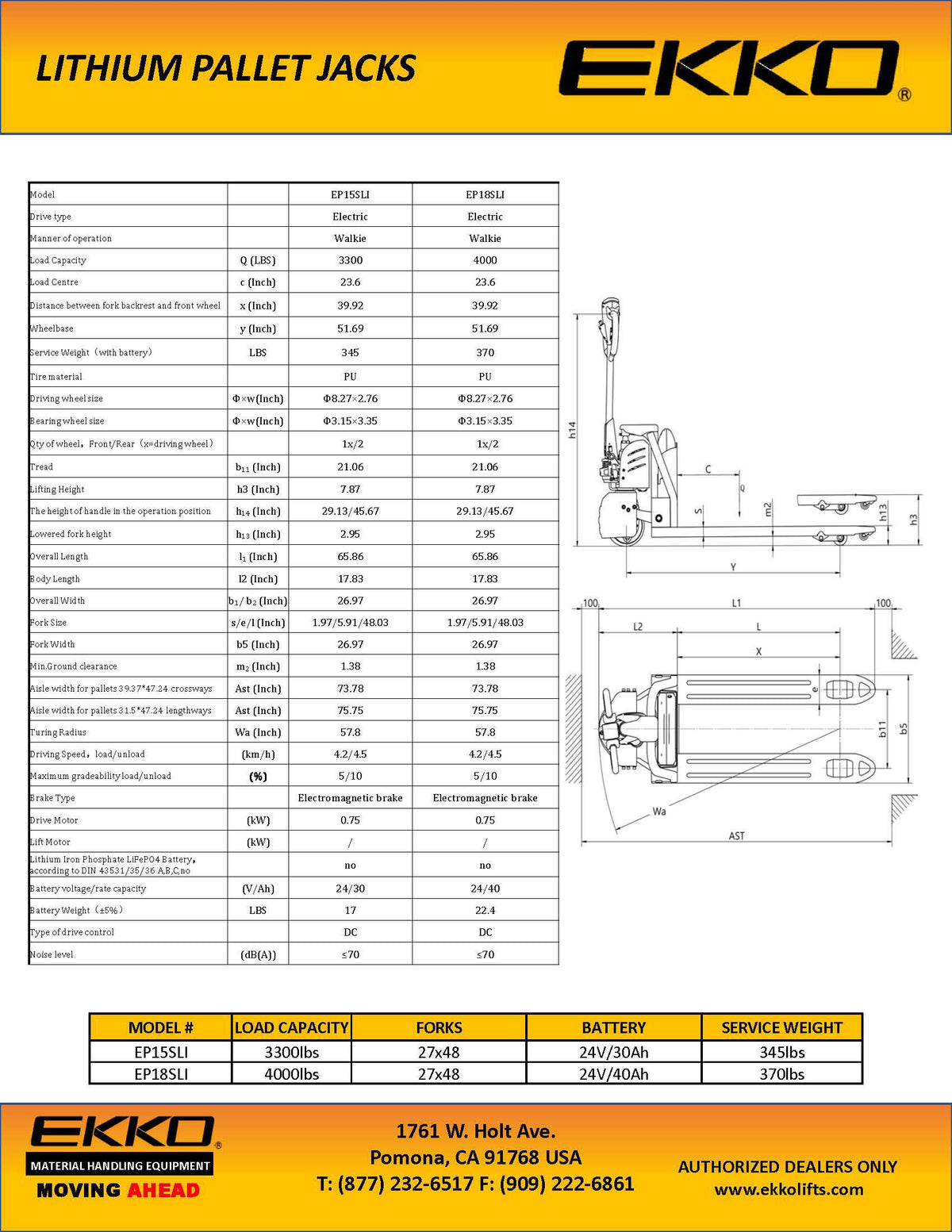

| Model | EPF15LI | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 3300 |
| Load Centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 39.92 |
| Wheel Base | y (Inch) | 51.69 |
| Tire material | PU | |
| Driving wheel size | Φ×w(Inch) | Φ8.27×2.76 |
| Bearing wheel size | Φ×w(Inch) | Φ3.15×3.35 |
| Qty of wheel, Front/Rear（x=driving wheel） | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| The height of handle in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 2.95 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/ b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min. Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turning Radius | Wa (Inch) | 57.8 |
| Driving Speed, load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/30 |
| Battery Weight（±5%） | LBS | 17 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | ≤70 |
| Service Weight（with battery） | LBS | 345 |
