Polima Wheel Swivel Caster

In stock
SKU: PL05PUBTLB6
Regular price $50.85

Attatchment
Wheel Base
Brake Option
Trusted By

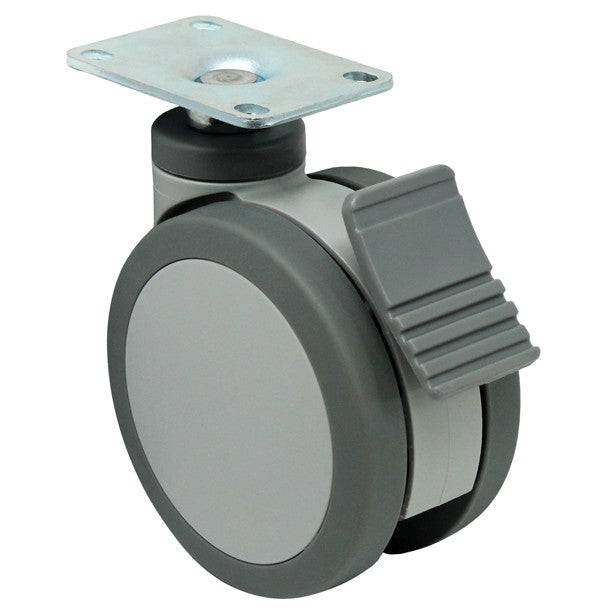

Polima Wheel Swivel Caster

Polima casters are double-wheel casters with a gray polyurethane elastomer tread. The dual-wheel design makes for easy swiveling. The core is polyolefin and the tread is Non-marking, corrosion, and chemical resistant. Sealed precision bearings in the raceway and wheel allow easy rolling and protect against hair, water, and debris contamination

Tread: Polyurethane elastomer

Core: Solid Polyolefin Core

Bearing: Ball Bearing




Model Number PL03PUBSWP5 PL04PUBSW67 PL05PUBDLB6 PL05PUBTLB6 PL05PUBSW67
Load Capacity 165 lbs 220 Lbs. 240 Lbs. 240 Lbs. 240 Lbs.
Wheel Diameter 3" 4" 5" 5" 5"
Tread Width 2-5/16" 2-39/64" 3" 3" 3"
Tread Type Polyurethane elastomer Polyurethane elastomer Polyurethane elastomer Polyurethane elastomer Polyurethane elastomer
Core Type Solid Polyolefin Core Solid Polyolefin Core Solid Polyolefin Core Solid Polyolefin Core Solid Polyolefin Core
Bearing Type Ball Bearing  Ball Bearing  Ball Bearing  Ball Bearing  Ball Bearing
Wheel Color Gray on Gray  Gray on Gray  Gray on Gray  Gray on Gray  Gray on Gray
Overall Height 4-1/8" 5-3/8" 6-3/8" 6-3/8" 6-3/8"
Swivel Radius 2-5/16" 3-1/8" 4" 4" 4"
Plate/Stem Size 2-5/8" x 3" 1/2" NC13 x 1" 2- 1/2" x 3-5/8" 2- 1/2" x 3-5/8" 1/2" NC13 x 1"
Bolt Hole Pattern 1-5/8" x 1-31/32" tp 2" x 2-13/32" N/A 1-3/4" x 2-13/16" to 3-1/16" 1-3/4" x 2-13/16" to 3-1/16" N/A
Bolt Hole Diameter 5/16" N/A 5/16" 5/16" N/A
Durometer 75 Shore A (+/-5) 75 Shore A (+/-5) 75 Shore A (+/-5) 75 Shore A (+/-5) 75 Shore A (+/-5)
Temp. Range -40° F to 180° F -40° F to 180° F -40° F to 180° F -40° F to 180° F -40° F to 180° F
