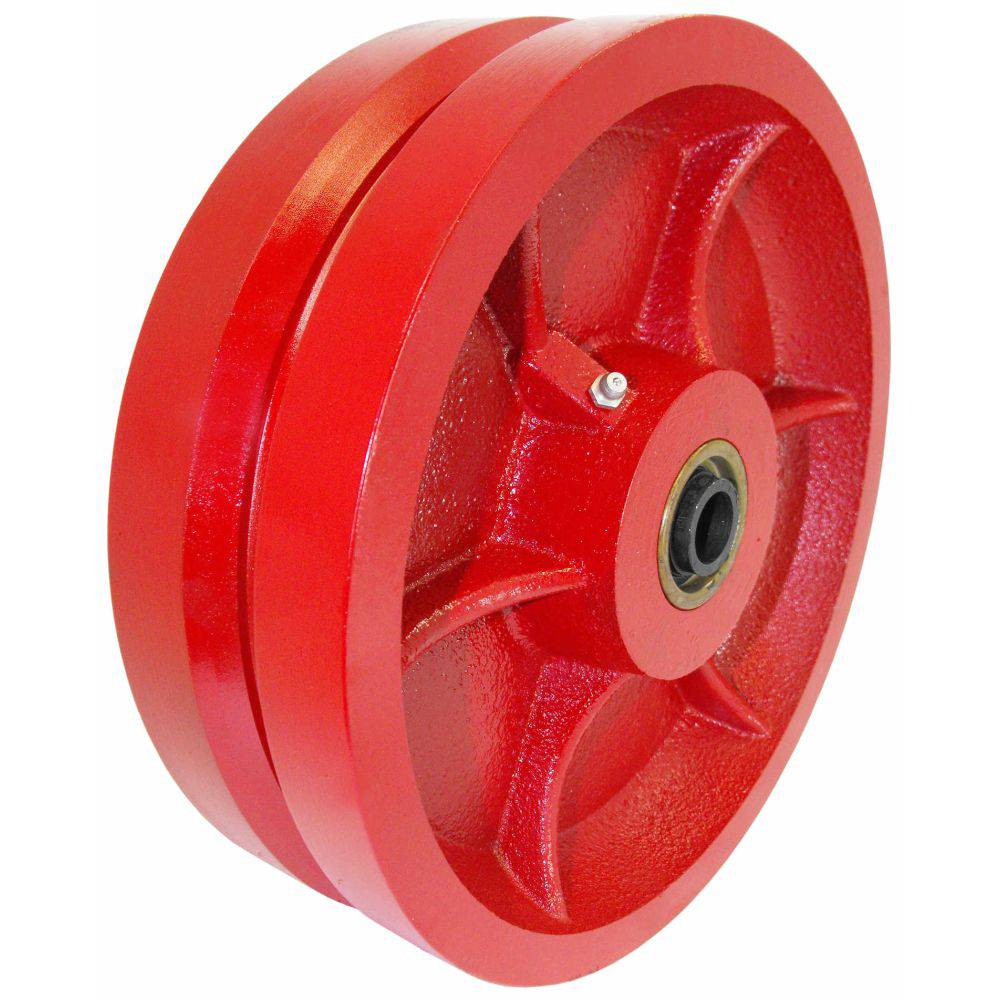

10" x 3" Ductile Steel V-Groove Wheel

The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you'll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to travel along integrated tracks easily.

Tread: Solid Cast Ductile Steel with 7/8" V-Groove

Core: Solid Cast Ductile Steel

Bearing: Multiple Bearing Options

  • Capacity: 7,000 Lbs.
  • Color: Red
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 250° F
Load Capacity 7000 Lbs.
Wheel Diameter 10"
Tread Width 3"
Tread Type
Solid Cast Ductile Steel with 7/8" V-Groove
Core Type
Solid Cast Ductile Steel
Axle / Bore Diameter
-3/4" (Sealed Precision, Tapered Roller, and Roller Bearing)
-1" (Roller and Tapered Bearing
-1-1/4" (Roller Bearing)
Hub Length
Bearing Type
- Sealed Precision Ball Bearing
-Roller Bearing
-Tapered Roller Bearing
Wheel Color
Durometer  Shore D 85 (+/-5)
Temperature Range  -45° F to 250° F
