10" x 3" Ultra Poly on Cast Wheel - 4000 lbs. Capacity

In stock
SKU: EX10LG71
Regular price $337.05

Bearing Type
Trusted By

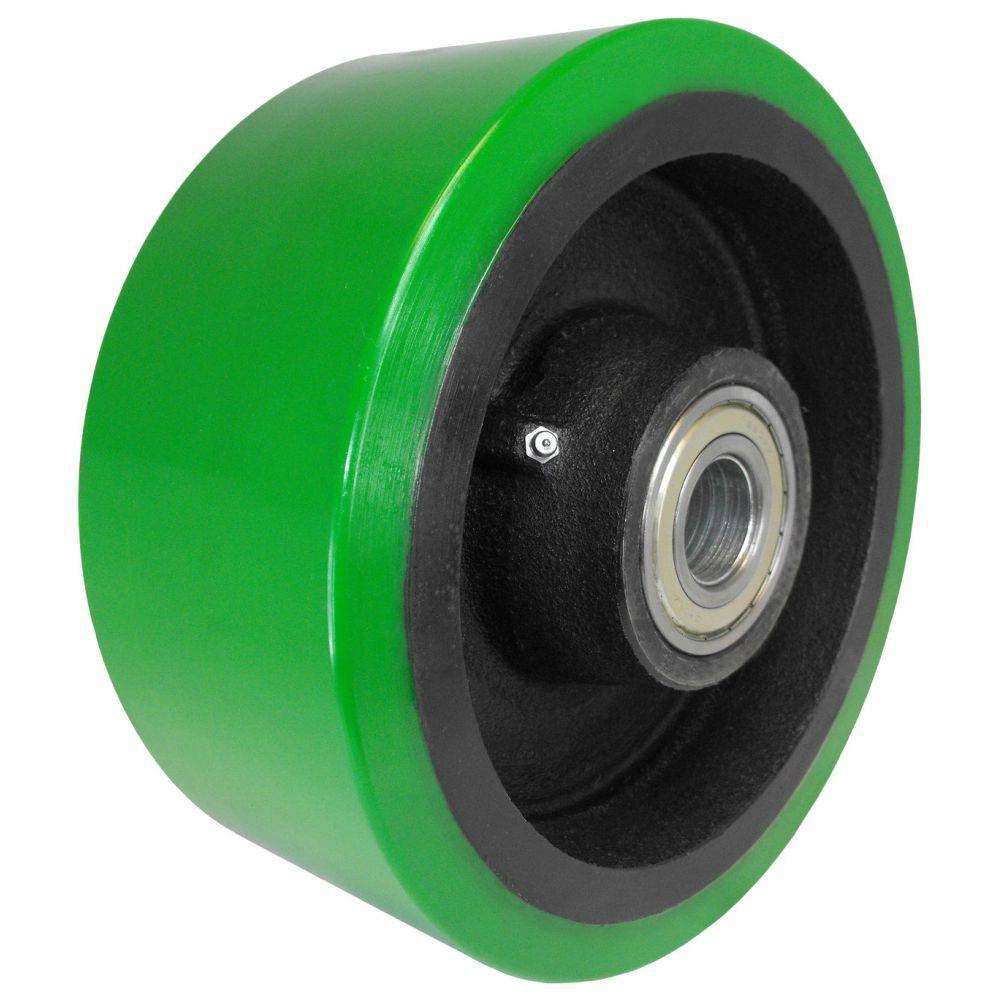

10" x 3" Ultra Poly on Cast Wheel

The Ultra-Poly wheel is a higher-capacity alternate to our standard Polyon Cast wheels. Boasting a 3/4" thick, non-marking polyurethane tread and stronger cast iron core, this wheel provides a longer life under very heavy loads.

Tread: 3/4" Thick Polyurethane Elastomer, Non-Marking

Core: Heavy Duty Cast Iron Core

Bearing: Multiple Bearing Options

  • Capacity: 4,000 Lbs.
  • Color: Green and Black
  • Durometer: Shore D 60 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity 4,000 Lbs.
Wheel Diameter
10"
Tread Width 3"
Tread Type 3/4" Thick Polyurethane Elastomer, Non-Marking
Core Type Heavy Duty Cast Iron Core
Axle / Bore Diameter
-3/4" (Sealed Precision Bearing)
-3/4" (Tapered Roller Bearing)
-1" (Sealed Precision Bearing)
-1" (Tapered Roller Bearing)
Hub Length
3-1/4"
Bearing Type  -Sealed Precision Bearing
-Tapered Roller Bearing
Wheel Color
Green and Black
Durometer  Shore D 60 (+/-5)
Temperature Range  -40° F to 180° F
