3" x 1-13/16" MaxRok Heavy Duty Machine Rigid Caster - 1000 lbs. Capacity

In stock
SKU: 06MA30IB6317YY
Regular price $23.53
Est. Ship Date: Monday, March 11th
Trusted By

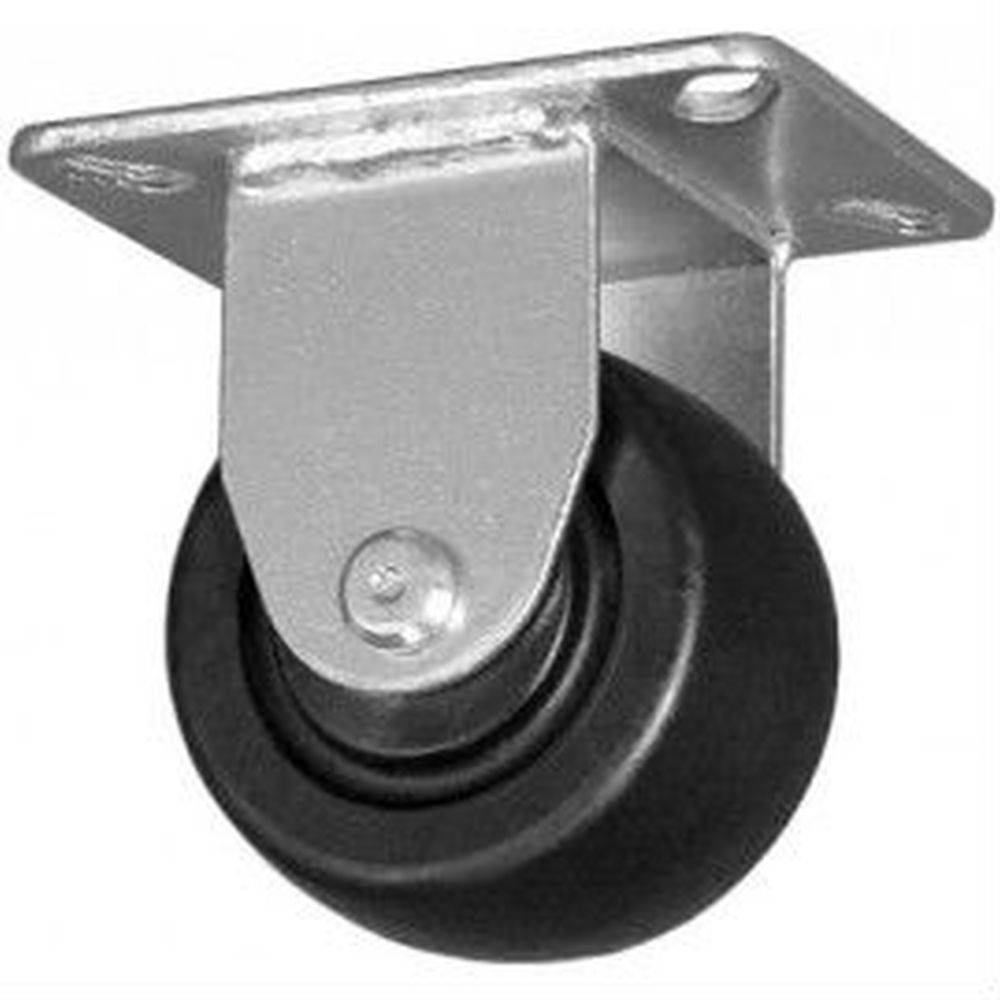

3" x 1-13/16" MaxRok Wheel Heavy Duty Machine Rigid Caster

Maxrok wheels are made from glass-filled nylon, providing incredible impact strength and a fairly high load capacity for the weight and price. The hard tread does not provide floor protection, but these wheels excel in outdoor applications. The nylon compound is resistant to grease, oil, and most chemical and cleaning solutions.

Tread & Core: Glass-Filled Nylon

Bearing: Sealed Precision Bearing

Rig: Zinc-plated Rigid Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,000 Lbs.
  • Color: Black
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45°F to 250°F
Load Capacity 1000 Lbs.
Wheel Diameter 3"
Tread Width 1-13/16"
Tread Type
Glass-Filled Nylon
Core Type
Glass-Filled Nylon
Bearing Type
Sealed Precision Bearing
Wheel Color
Black
Overall Height
4-5/32"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer
Shore D 85 (+/-5)
Temperature Range  -45°F to 250°F
