3" x 1-13/16" MaxRok Heavy Duty Machine Swivel Caster 1200 lbs. Cap.

In stock
SKU: 05MA30IB6317YY
Regular price $37.77

Trusted By

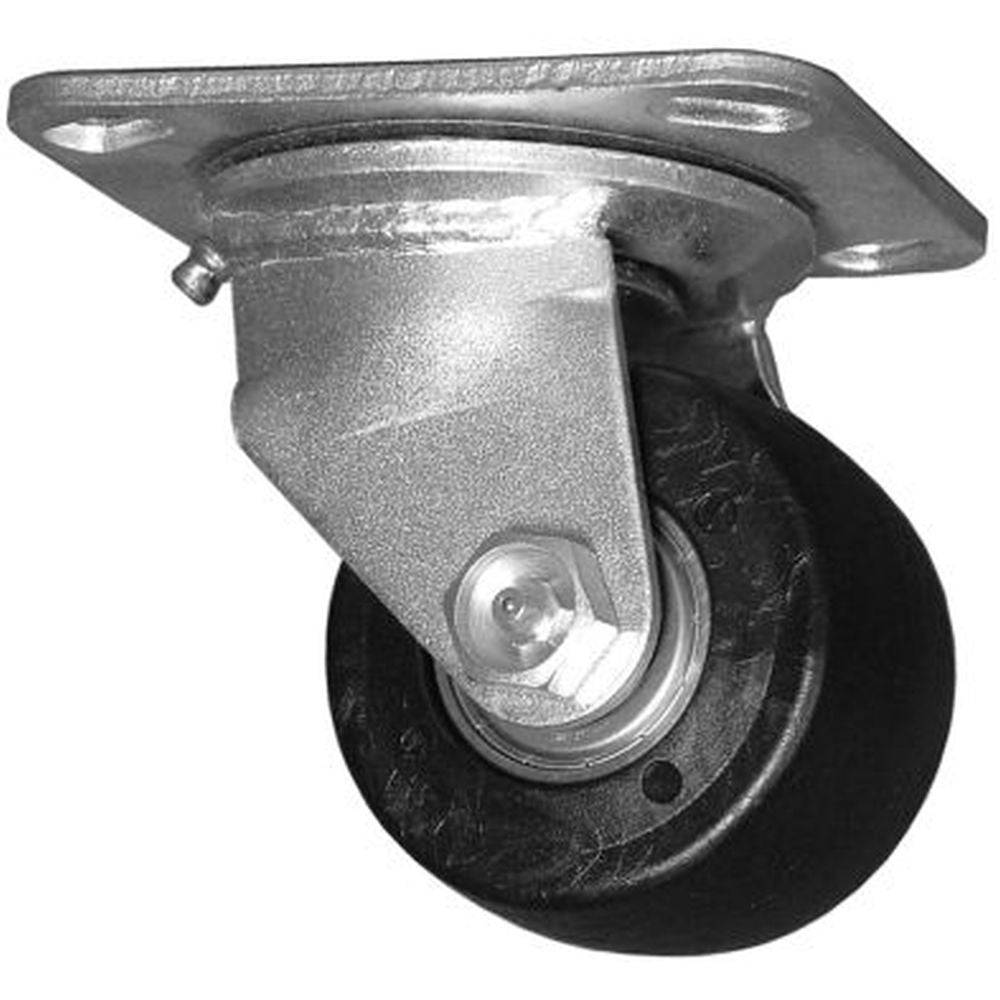

3" x 1-13/16" MaxRok Wheel Heavy Duty Machine Swivel Caster

Maxrok wheels are made from glass-filled nylon, providing incredible impact strength and a fairly high load capacity for the weight and price. The hard tread does not provide floor protection, but these wheels excel in outdoor applications. The nylon compound is resistant to grease, oil, and most chemical and cleaning solutions.

Tread & Core: Glass-Filled Nylon

Bearing: Sealed Precision Bearing

?Rig: ?Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,200 Lbs.
  • Wheel Color is Black
  • Durometer: 85 Shore D (+/-5)
  • Temperature Range: -45°F to 250°F
Load Capacity 1,200 Lbs.
Wheel Diameter 3"
Tread Width 1-13/16"
Tread Type  Glass-Filled Nylon
Core Type  Glass-Filled Nylon
Bearing Type Sealed Precision Bearing
Wheel Color Black
Overall Height 4"
Swivel Radius 2-3/8"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter 3/8"
Durometer
Shore D 85 (+/-5)
Temperature Range -45°F to 250°F
