3" x 1-1/4" Polyon Aluminum Wheel Swivel Caster - 350 lbs. Capacity

In stock
SKU: 75PA30GL4306YY
Regular price $24.63
Est. Ship Date: Friday, May 3rd
Trusted By

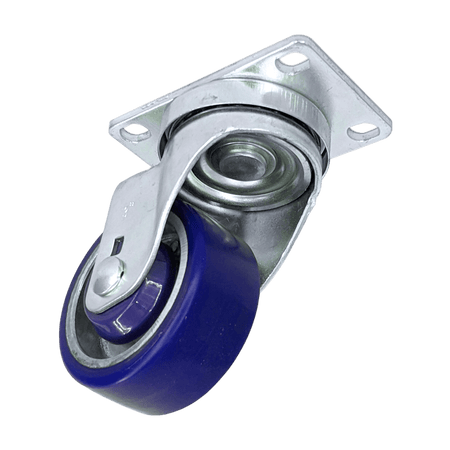

3" x 1-1/4" Polyon Aluminum Wheel Swivel Caster

Polyurethane elastomer tread is chemically bonded to an aluminum core. The aluminum core has a strong attractive appearance, is lightweight, and is resistant to rust and corrosion.

Tread: Polyurethane Elastomer

Core: Aluminum

Bearing: Annular Ball Bearing

Rig: Zinc-Plated Swivel Caster, 2-3/8" x 3-5/8" Mounting Plate

  • Capacity: 350 Lbs.
  • Color: Blue and Silver
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity 350 Lbs.
Wheel Diameter 3"
Tread Width 1-1/4"
Tread Type
Polyurethane Elastomer
Core Type Aluminum
Bearing Type 3/8" Annular Bearing W/ Bearing Guards
Wheel Color Blue/Silver
Overall Height 4-1/8"
Swivel Radius 3"
Plate Size 2-3/8" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter
5/16"
Durometer
Shore A 95 (+/-5)
Temperature Range -40° F to 180° F
