3" x 1-1/4" Thermo-Pro Wheel Swivel Caster w/ Swivel Dust Cap - 210 lbs. Cap.

In stock
SKU: 75TP30GI4406YY
Regular price $13.03
Est. Ship Date: Monday, June 3rd
Mounting Plate Size
Trusted By

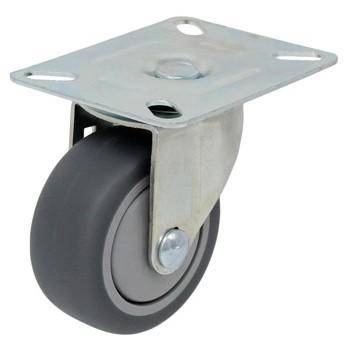

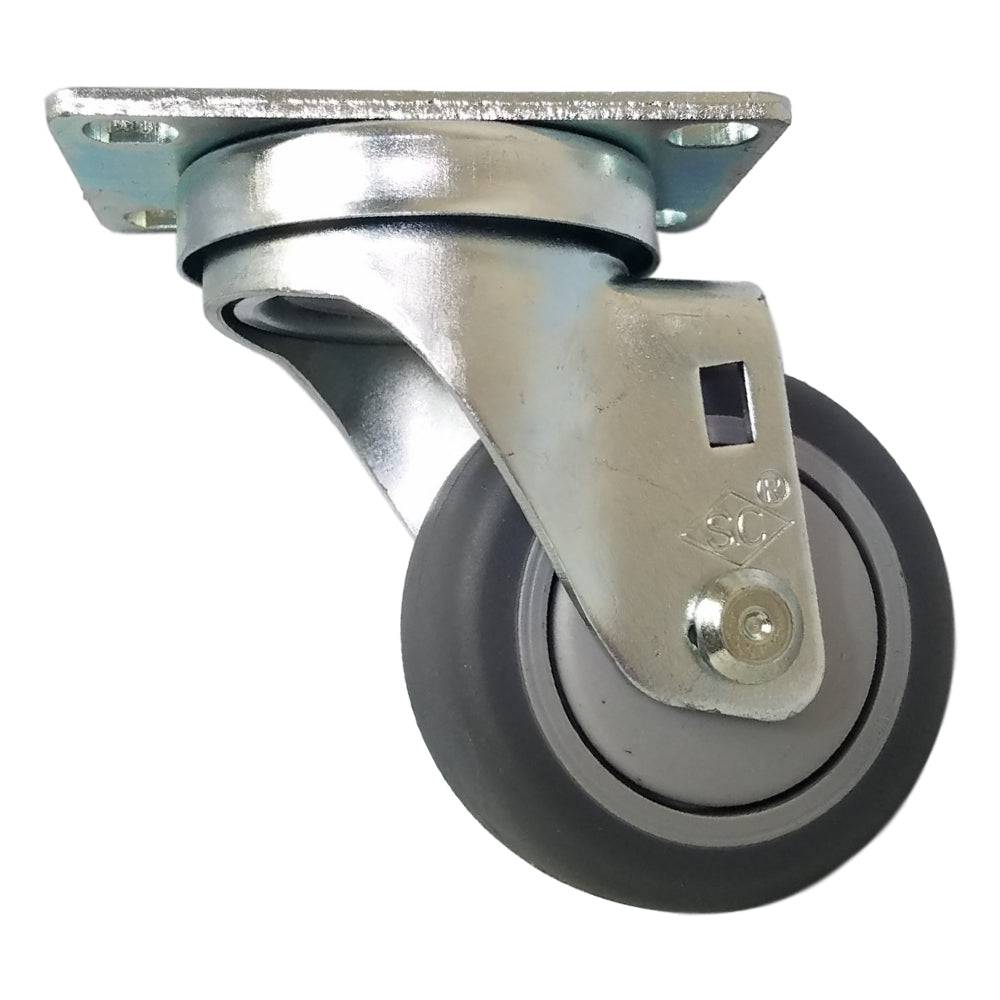

3" x 1-1/4" Thermo-Pro Wheel Swivel Caster with Swivel Dust Cap

The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.

Tread: Non-Marking Thermoplastic Rubber

Core: Solid Polyolefin

Bearing: Precision Ball Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, Multiple Mounting Plate Sizes

  • Capacity: 210 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore A 75 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 210 Lbs.
Wheel Diameter 3"
Tread Width 1-1/4"
Tread Type Non-Marking Thermoplastic Rubber
Core Type Solid Polyolefin
Bearing Type Precision Ball Bearing W/ Full Thread Guards
Wheel Color Gray/Gray
Overall Height 4-1/8"
Swivel Radius 3"
Plate Size - 2-3/8" x 3-5/8"
- 3-1/8" x 4-1/8"
Bolt Hole Pattern - 1-3/4" x 2-7/8" slotted to 3"
- 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Bolt Hole Diameter 5/16"
Durometer Shore A 75 (+/-5)
Temperature Range
-20° F to 180° F
