3" x 1-1/4" Thermo-Pro Wheel Swivel Caster w/ Top Lock Brake - 210 lbs. Cap.

In stock
SKU: 75TP30GY4706TY
Regular price $13.77
Est. Ship Date: Monday, March 11th
Trusted By

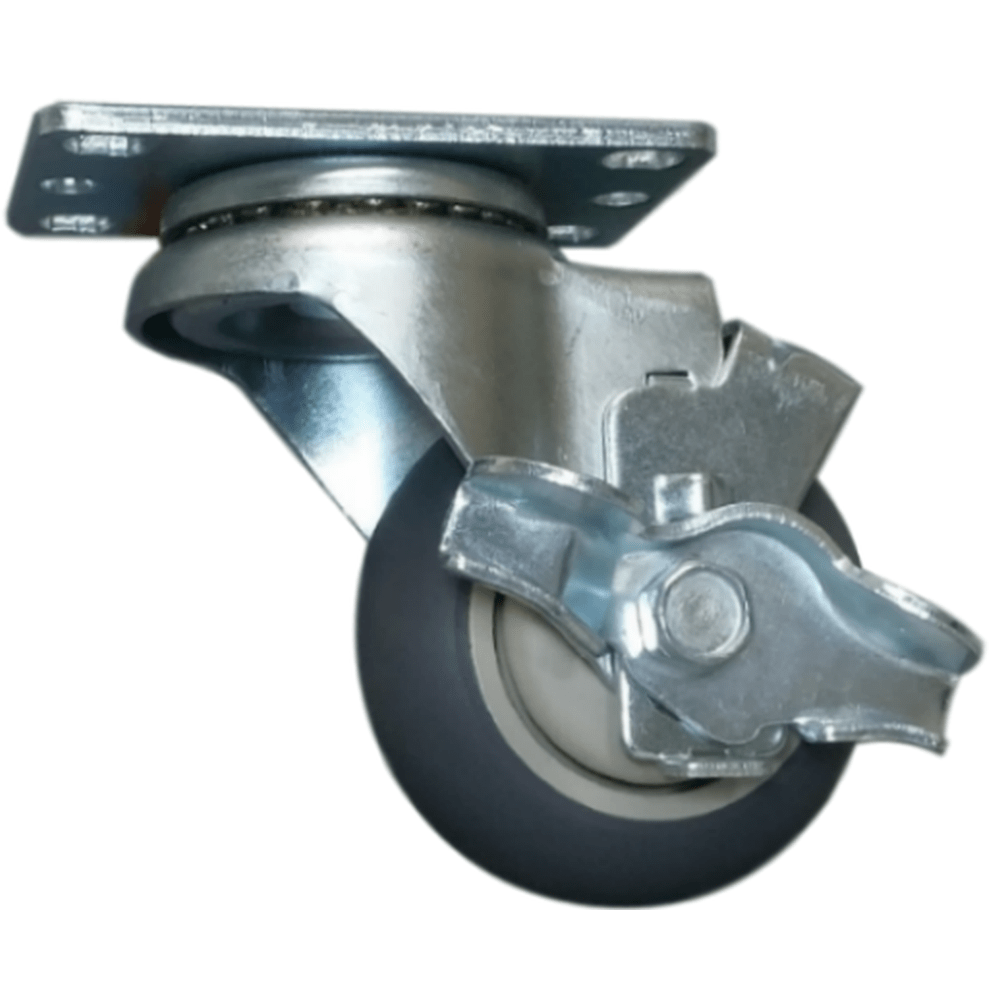

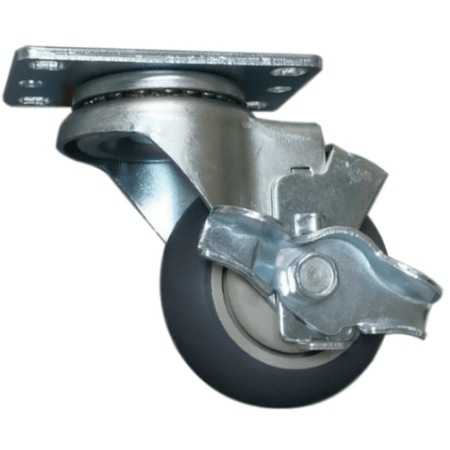

3" x 1-1/4" Thermo-Pro Wheel Swivel Caster with Top Lock Brake

The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.

Tread: Non-Marking Thermoplastic Rubber

Core: Solid Polyolefin

Bearing: Precision Ball Bearing

Rig: Zinc-Plated Swivel Caster, 2-3/8" x 3-5/8" Mounting Plate, Top Lock Brake

  • Capacity: 210 Lbs.
  • Color: Gray and Beige
  • Durometer: Shore A 75 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 210 Lbs.
Wheel Diameter 3"
Tread Width 1-1/4"
Tread Type Non-Marking Thermoplastic Rubber
Core Type Solid Polyolefin
Bearing Type Precision Ball Bearing W/ Full Thread Guards
Wheel Color Gray/Gray
Overall Height 4-1/8"
Swivel Radius 3"
Plate Size 2-3/8" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-7/8" to 3"
Bolt Hole Diameter
5/16"
Lock Type
Top Lock
Durometer
Shore A 75 (+/-5)
Temperature Range
-20° F to 180° F
