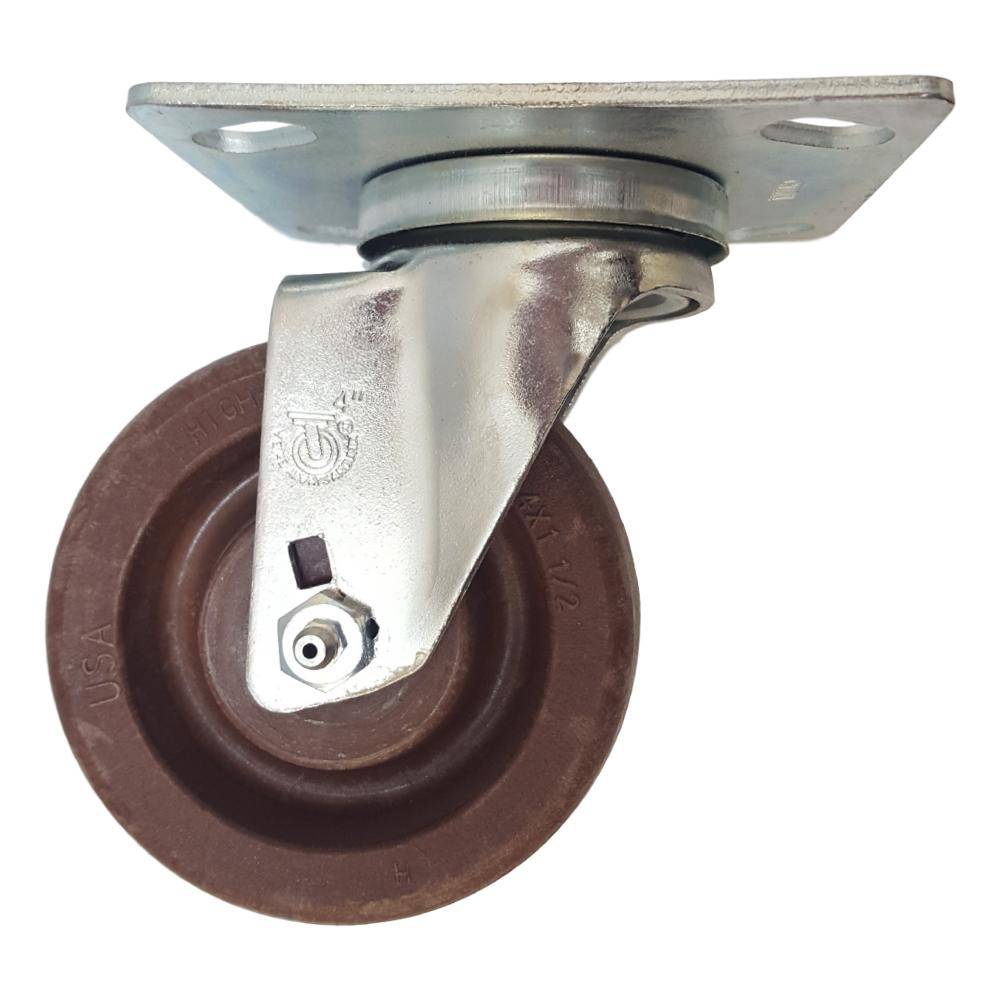

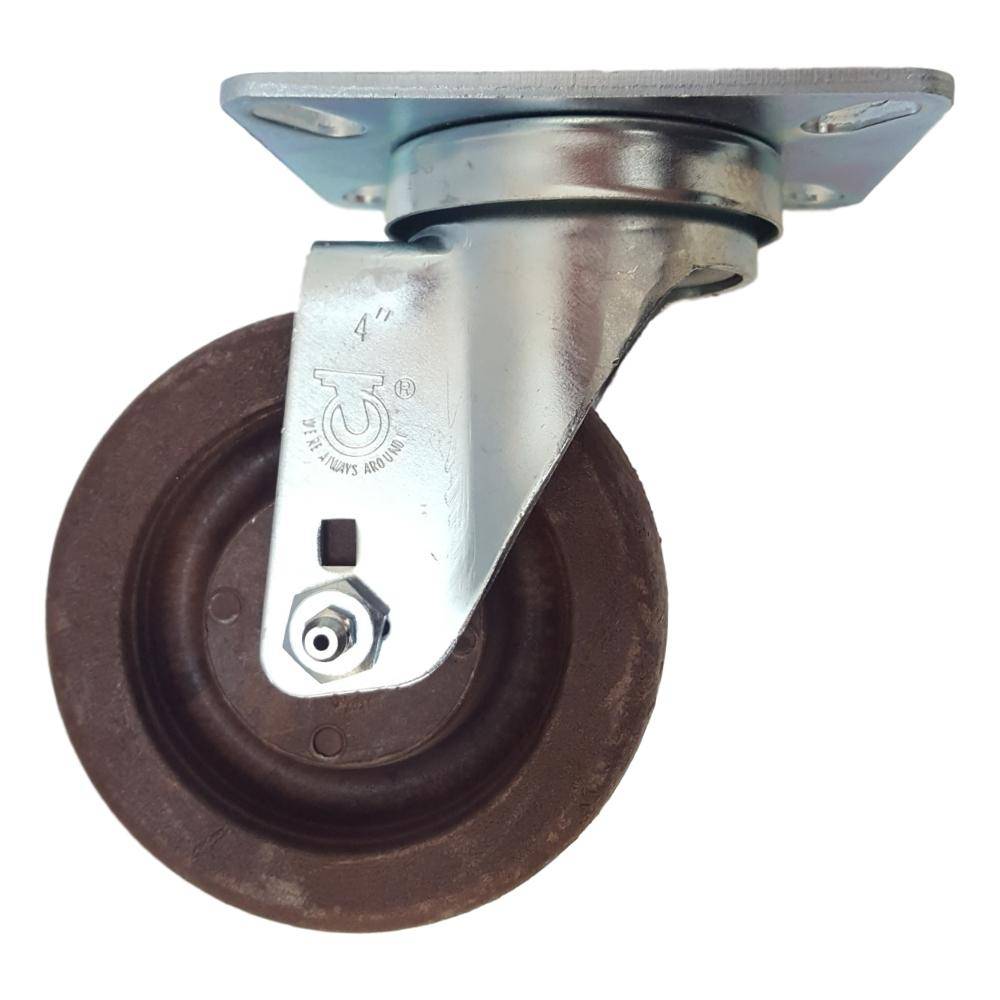

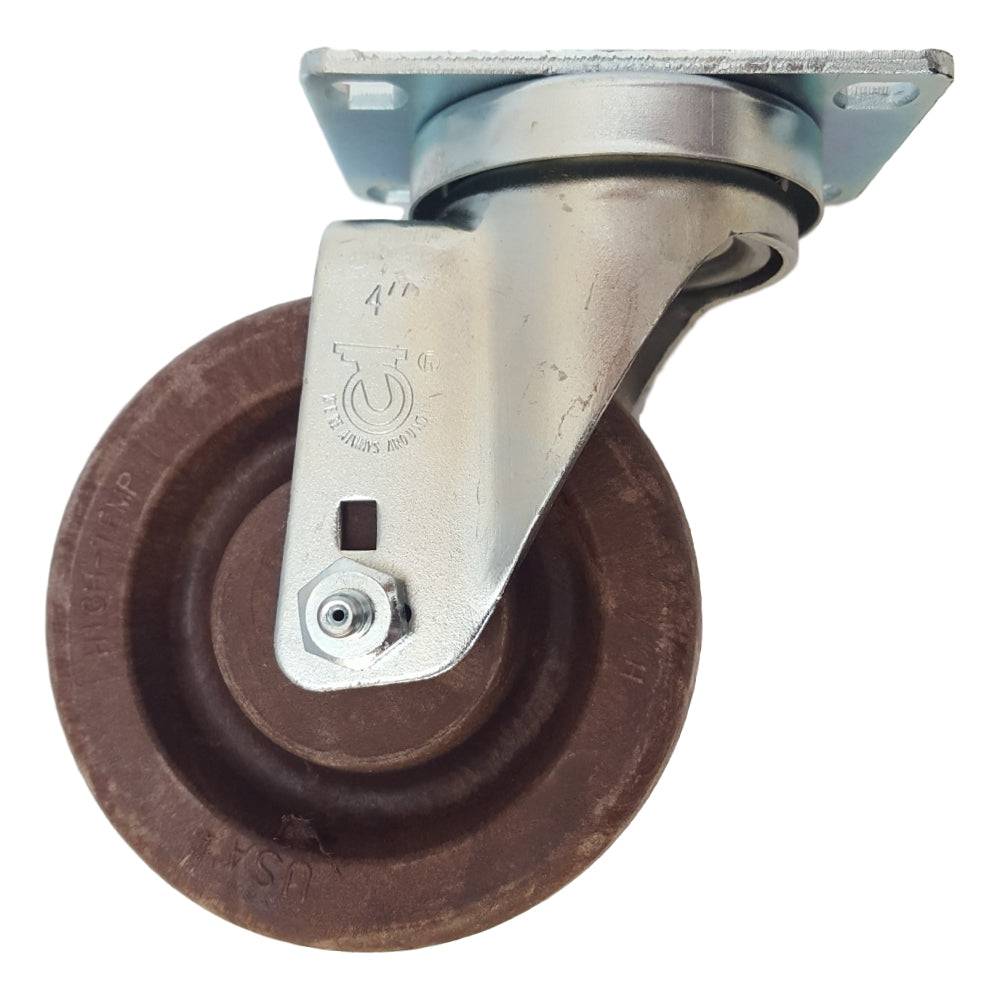

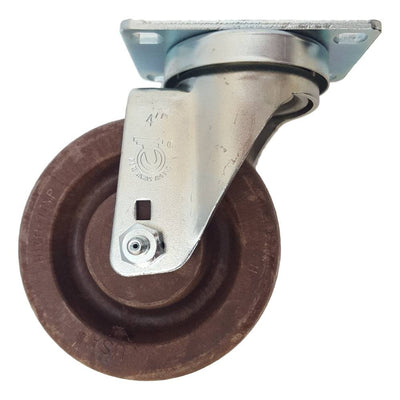

3" x 1-1/2" High Temp. Brimstone Wheel Swivel Caster - 350 lbs. capacity

In stock
SKU: 75GN30HQ9006YZ
Regular price $22.98
Est. Ship Date: Thursday, June 27th
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

3" x 1-1/2" High Temp. Brimstone Wheel Swivel  Caster

Brimstone wheels are made out of an exclusively engineered thermo compound designed for high temperature, autoclave, and steam cleaning wash-down applications.  They provide excellent resistance to oil, grease, salt, and most acids, chemicals, and cleaning solutions.

Tread & Core: Solid Cast Thermo Compound

Bearing: Sleeve Bearing/ also known as a bushing

From our Caster Expert: "These casters use a bushing and are ungreased. They can be left that way, but they may build up rolling resistance over time. It's recommended to add high-temp grease to make the casters last longer and roll more smoothly. These casters come with a zerk axle for adding grease. "

- Zinc-plated swivel caster with swivel dust cap, 2-3/8" x 3-5/8" mounting plate

  • Capacity: 350 Lbs.
  • Color: Brown
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45°F to 425°F continuous, up to 550°F intermittent
Load Capacity 350 Lbs.
Wheel Diameter 3"
Tread Width 1-1/2"
Tread Type Solid Cast Thermo Compound
Core Type
Solid Cast Thermo Compound
Bearing Type Sleeve Bearing
Wheel Color Brown
Overall Height 5-1/8"
Swivel Radius 3-13/32"
Plate Size - 2-3/8" x 3-5/8" (06 plate)
Bolt Hole Pattern - 1-3/4" x 2-7/8" to 1-3/4" x 3" (06 plate)
Bolt Hole Diameter - 5/16" (06 plate)
Durometer Shore D 85 (+/-5)
Temperature Range -45°F to 425°F continuous, up to 550°F intermittent
