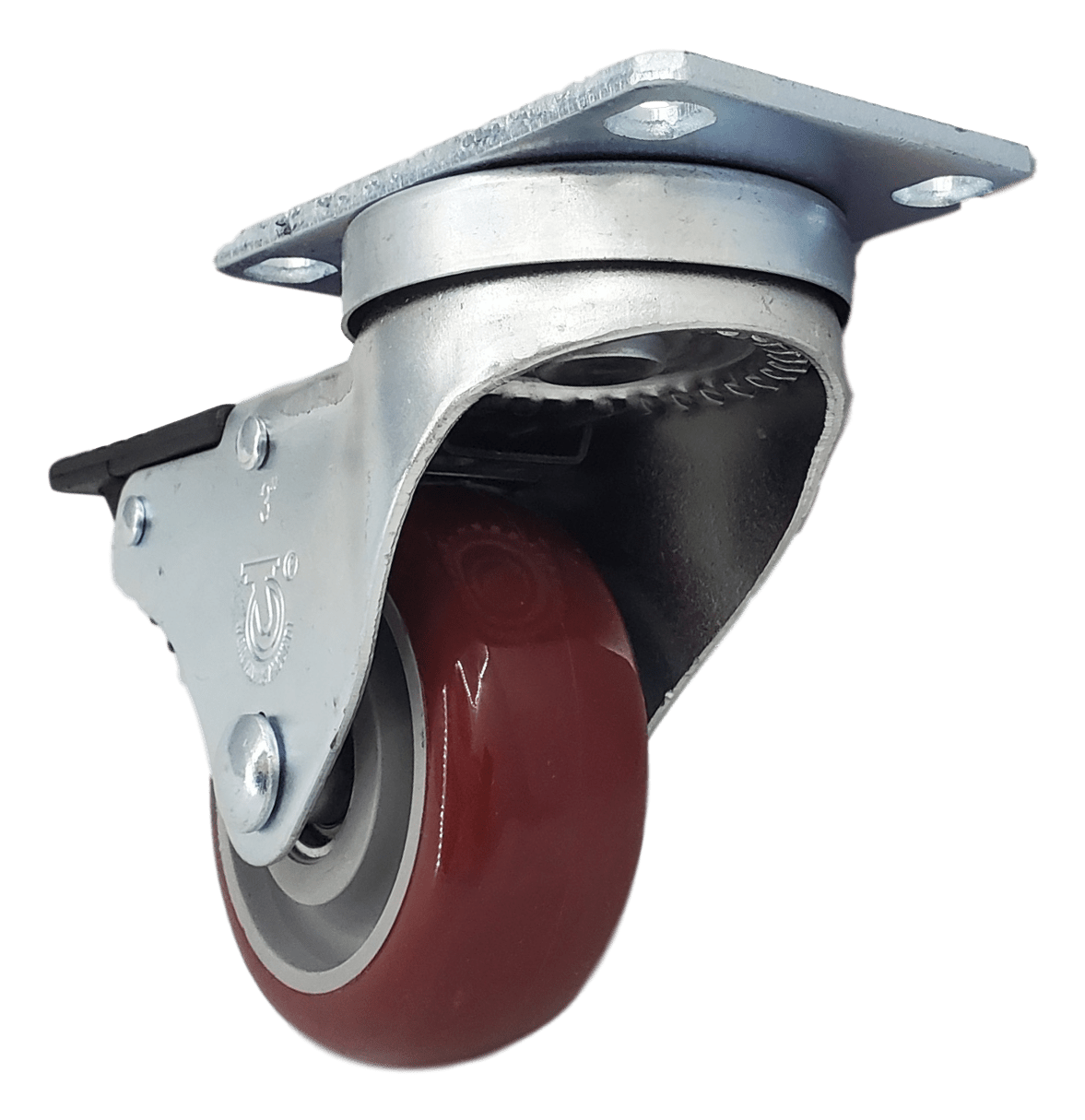

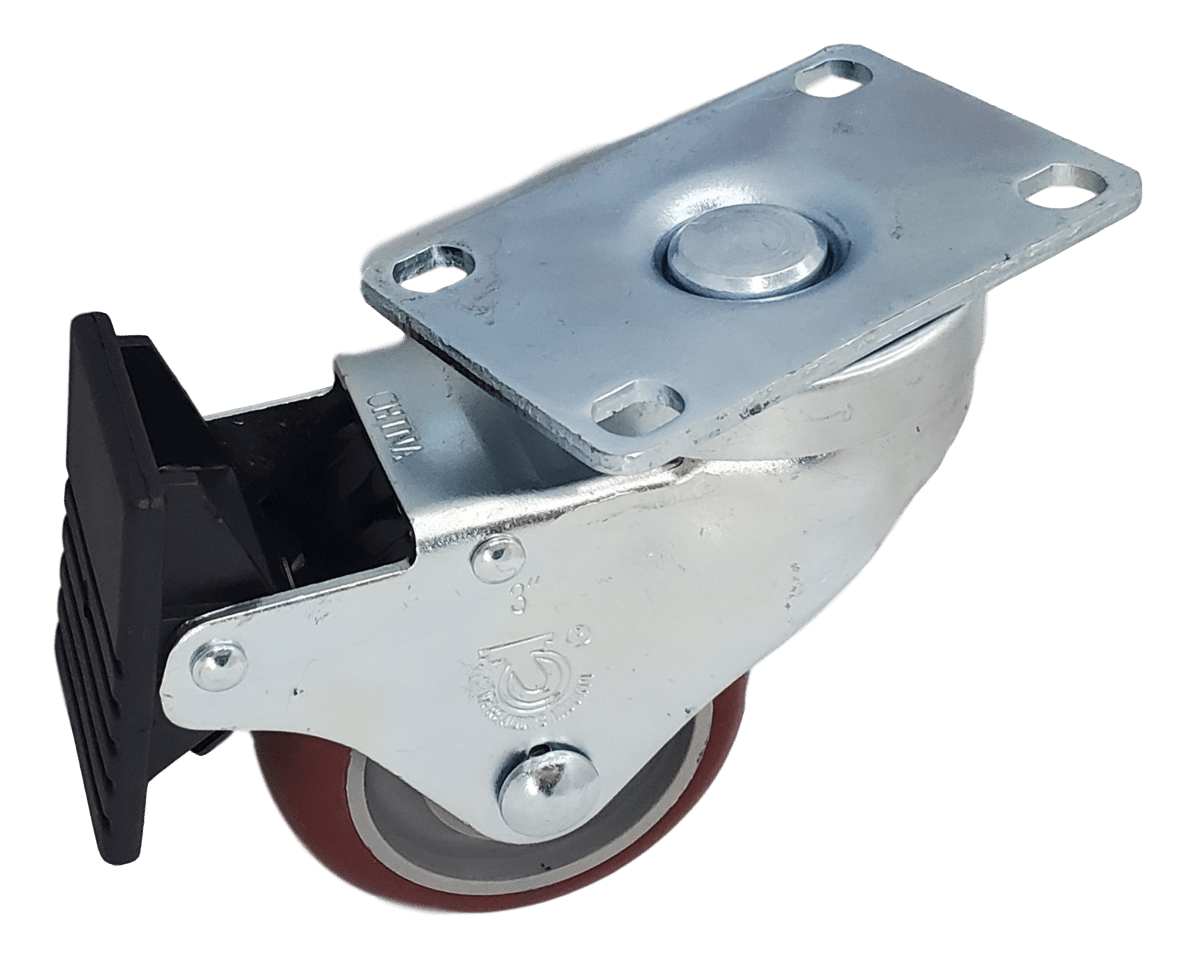

3" x 1-1/4" Polymadic Wheel Swivel Caster w/ Total Lock Brake - 300 Lbs. Capacity

In stock
SKU: T3PM30GM4306YY
Regular price $16.94

Trusted By

3" x 1-1/4" Polymadic Wheel Swivel Caster w/ Total Lock Brake 300 Lbs. Capacity

The polymadic wheel provides plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These wheels work well for most hard-floor applications due to the high-performance UV-resistant materials used.

Tread: High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core

Core: Polyolefin

Bearing: Annular Ball Bearing

?Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake

  • Capacity: 300 Lbs.
  • Color: Maroon Tread on Gray Core
  • Durometer: Shore A 60 (+/-5)
  • Temperature Range: -20° F to 180°F
Load Capacity 300 Lbs.
Wheel Diameter 3"
Tread Width 1-1/4"
Tread Type High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically To Core
Core Type Polyolefin
Bearing Type
Annular Ball Bearing
Wheel Color
Maroon Tread on Gray Core
Overall Height
4-9/16"
Swivel Radius
3-1/4"
Plate Size
2-3/8" x 3-5/8"
Bolt Hole Pattern
1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter
5/16"
Lock Type  Total Lock Brake
Durometer  Shore A 60 (+/-5)
Temperature Range -20°F to 180°F
