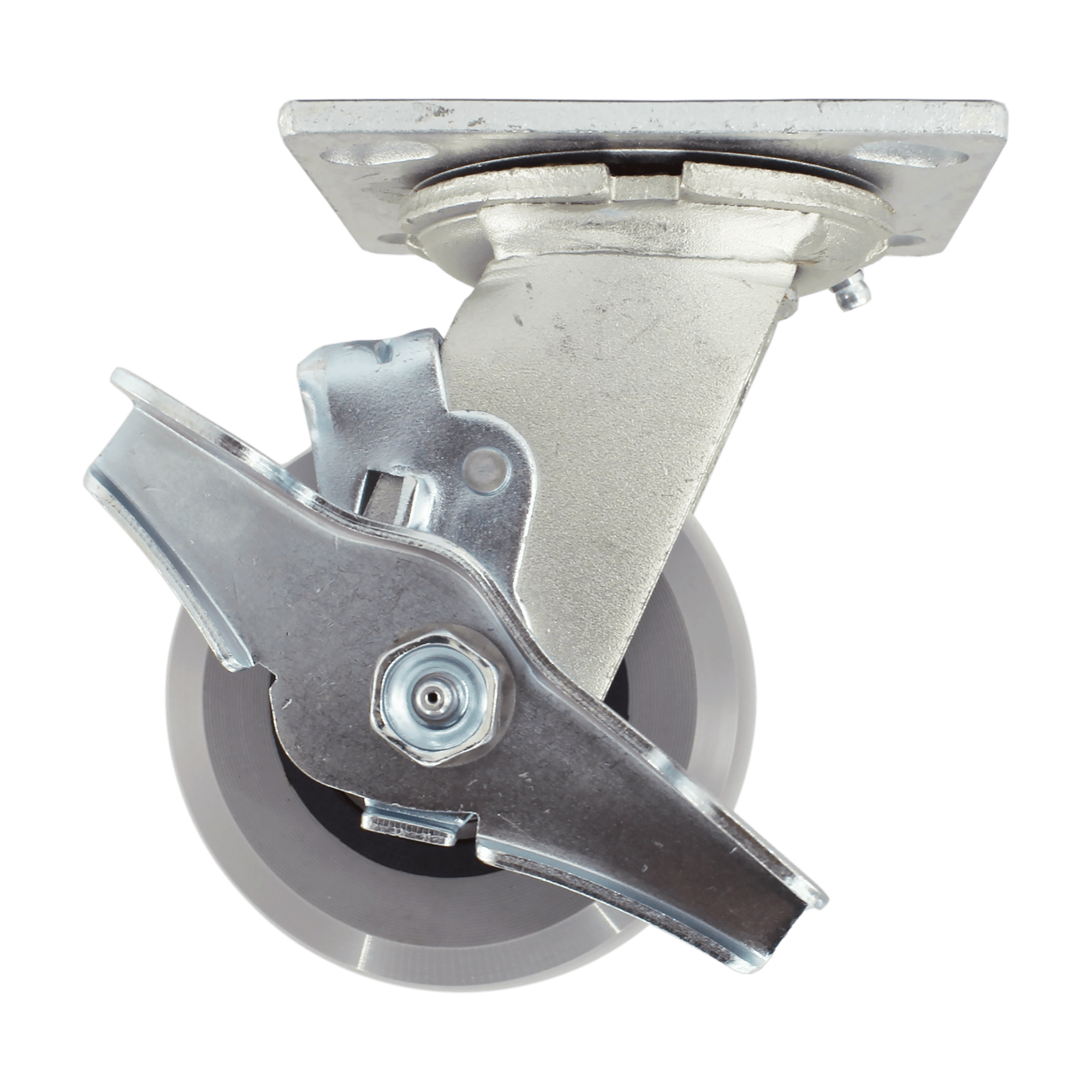

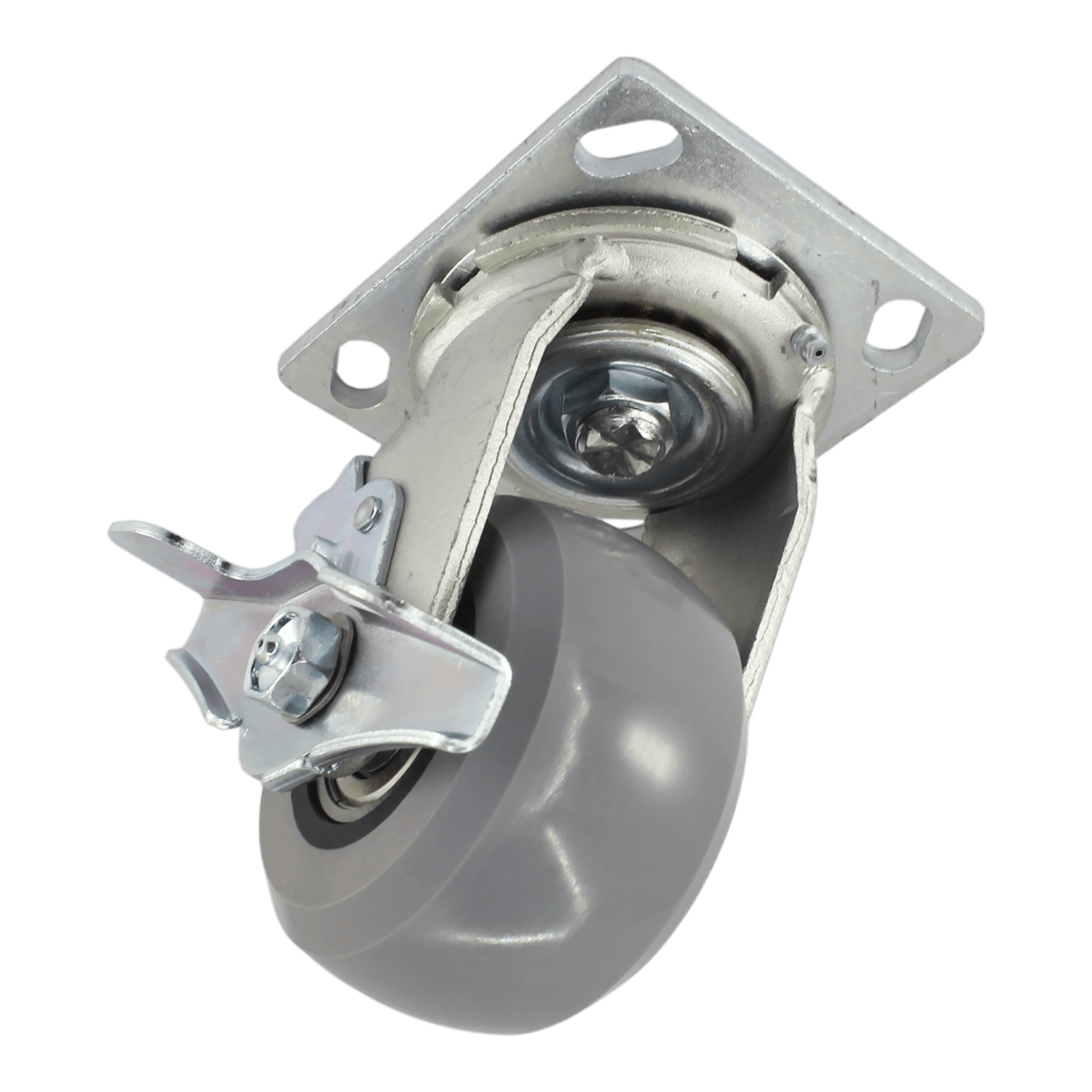

4" x 2" Ergolastomer Wheel Swivel Caster, Top Lock Brake, 1000 lb Cap.

In stock
SKU: 27HU40JI6317TY
Regular price $57.36
Est. Ship Date: Tuesday, December 19th
Four Position Swivel Lock
Trusted By

4" x 2" Ergolastomer Wheel Swivel Caster with Top Lock Brake

The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications.  These casters excel in harsh conditions, like rolling on asphalt.  They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.

Tread: Solid Cast Polyurethane Elastomer, Non-Marking

Core: Glass Filled Nylon Bearing Collar

Bearing: Sealed Precision Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 1000 Lbs.
  • Color: Gray Tread on Black Core
  • Durometer: Shore D 65 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity 1000 Lbs.
Wheel Diameter 4"
Tread Width 2"
Tread Type Solid Cast Polyurethane Elastomer, Non-Marking
Core Type Glass Filled Nylon Bearing Collar
Bearing Type Sealed Precision Bearing
Wheel Color Gray Tread on Black Core
Overall Height 5-5/8"
Swivel Radius 3-1/4"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter 3/8"
Lock Type Top Lock Brake
Durometer Shore D 65 (+/-5)
Temperature Range -50° F to 180° F
