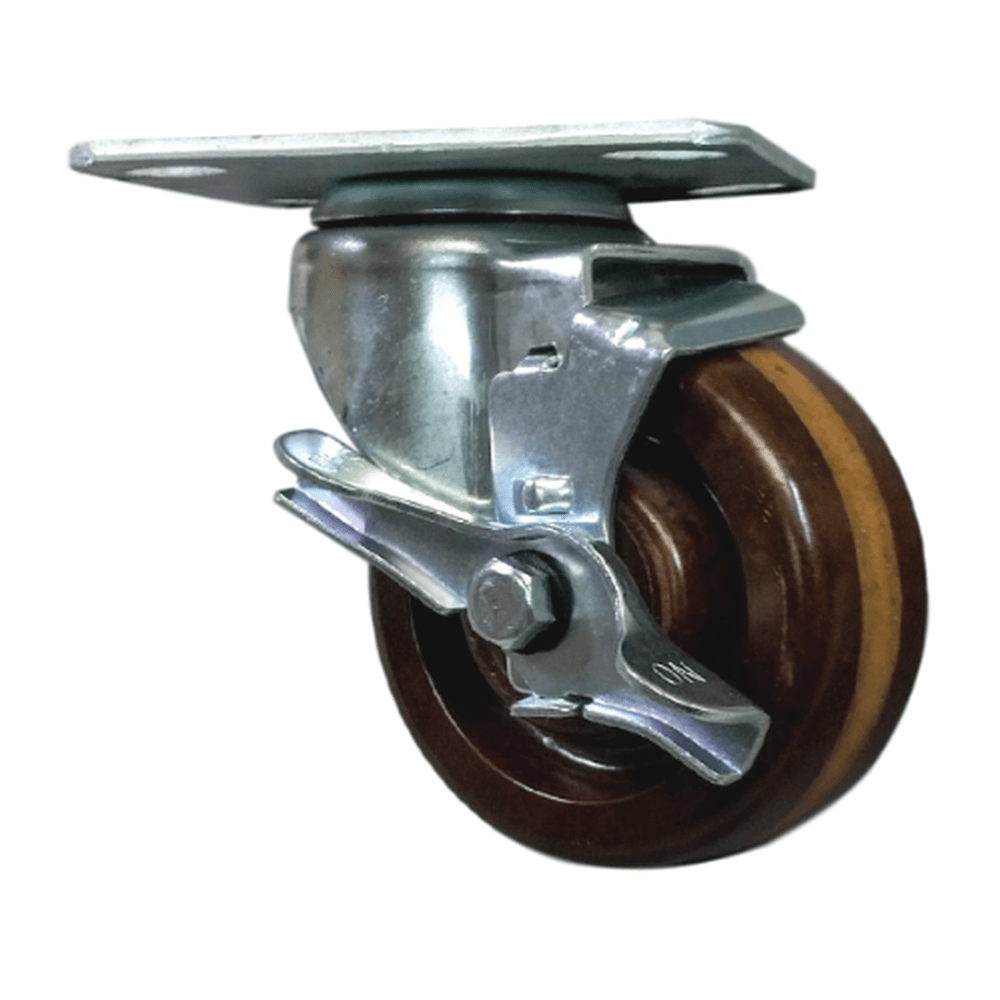

4" x 2" High Temp. Phenolic Swivel Caster, Top Lock Brake (Zinc Plated) - 600 lbs. Cap.

In stock
SKU: 27HT40JQ0417TY
Regular price $57.71
Est. Ship Date: Tuesday, April 30th
Four Position Swivel Lock
Trusted By

4" x 2" High Temp Phenolic Wheel Swivel Caster w/ Top Lock Brake

The high temp phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.

Tread & Core: Phenolic Resin With Macerated Canvas

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 600 Lbs.
  • Color: Brown
  • Durometer: Shore D 95 (+/-5)
  • Temperature Range: -40°F to 475°F continuous, 525°F intermittent
Load Capacity 600 Lbs.
Wheel Diameter
Tread Width
Tread Type
Phenolic Resin With Macerated Canvas
Core Type
Phenolic Resin With Macerated Canvas
Bearing Type Roller Bearing
Wheel Color Brown
Overall Height 5-5/8"
Swivel Radius 3-1/4"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter 3/8"
Durometer Shore D 95 (+/-5)
Temperature Range -40°F to 475°F continuous, 525°F intermittent
