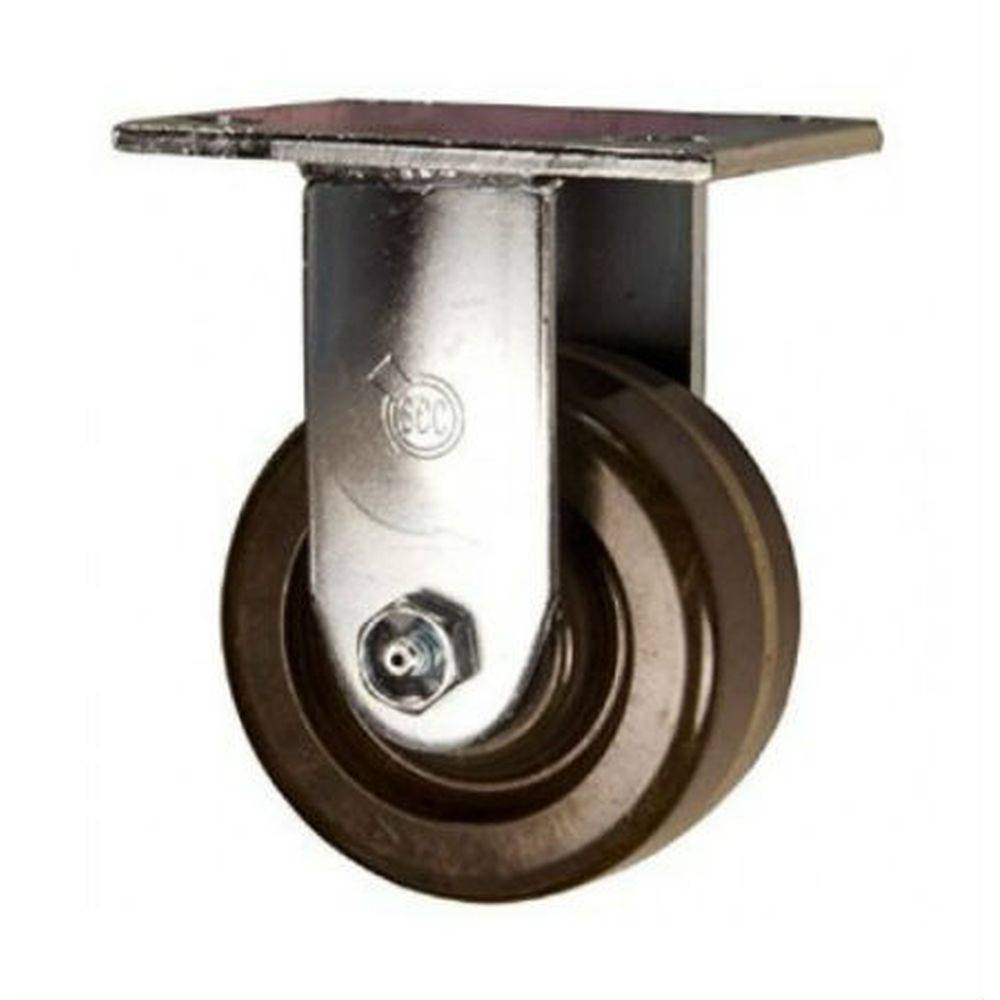

4" x 2" High Temp. Phenolic Rigid Caster (Zinc Plated) - 600 lbs. Cap.

In stock
SKU: 28HT40JQ0417YY
Regular price $47.91
Est. Ship Date: Tuesday, April 23rd
Trusted By

4" x 2" High Temp Phenolic Wheel Rigid Caster

The high temp phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.

Tread & Core: Phenolic Resin With Macerated Canvas

Bearing: Roller Bearing

Rig: Zinc-Plated Rigid Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 600 Lbs.
  • Color: Brown
  • Durometer: Shore D 95 (+/-5)
  • Temperature Range: -40°F to 475°F continuous, 525°F intermittent
Load Capacity 600 Lbs.
Wheel Diameter
4"
Tread Width
2"
Tread Type
Phenolic Resin With Macerated Canvas
Core Type
Phenolic Resin With Macerated Canvas
Bearing Type Roller Bearing
Wheel Color Brown
Overall Height 5-5/8"
Swivel Radius 3-1/4"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter 3/8"
Durometer Shore D 95 (+/-5)
Temperature Range -40°F to 475°F continuous, 525°F intermittent
