4" x 2" MaxRok Wheel Swivel Caster w/ Top Lock Brake - 800 lbs. Capacity

In stock
SKU: 27MA40JB6017TY
Regular price $35.76
Est. Ship Date: Monday, December 18th
Four Position Swivel Lock
Trusted By

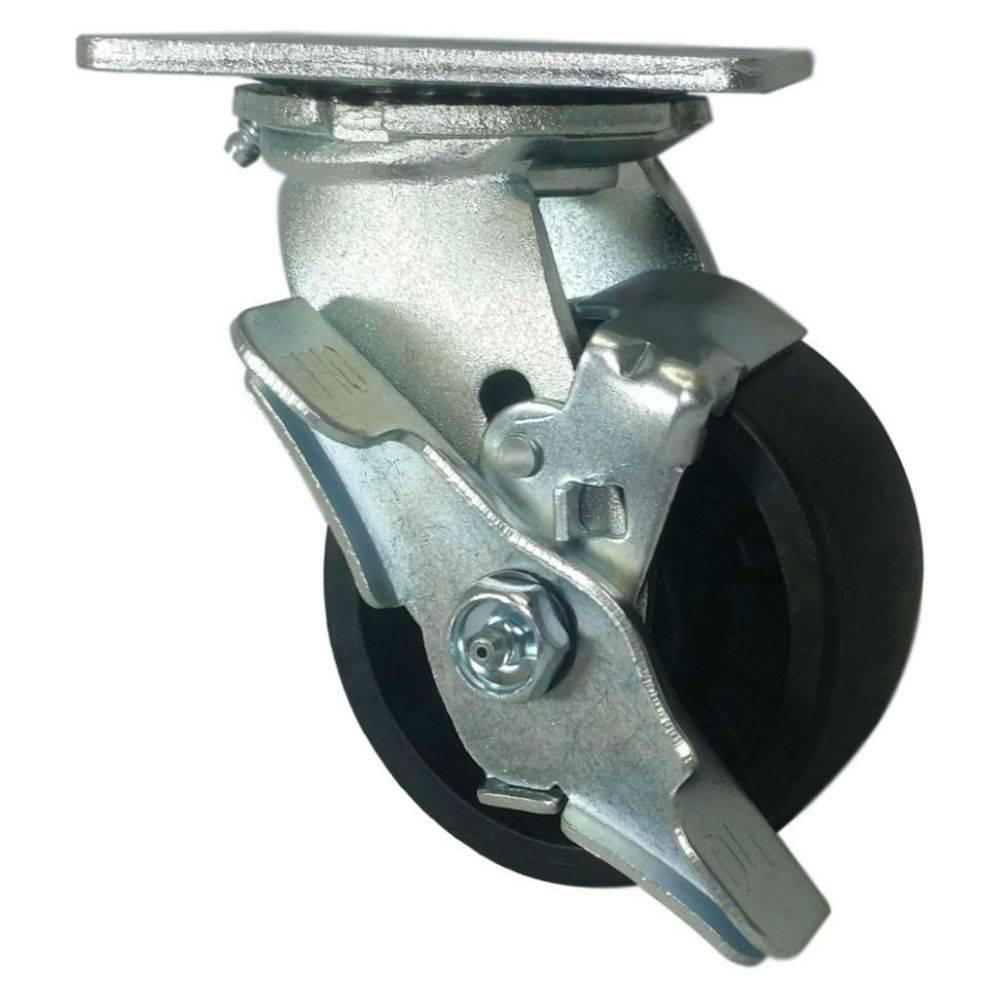

4" x 2" MaxRok Wheel Swivel Caster with Top Lock Brake

Maxrok wheels are made from glass-filled nylon, providing incredible impact strength and a fairly high load capacity for the weight and price. The hard tread does not provide floor protection, but these wheels excel in outdoor applications. The nylon compound is resistant to grease, oil, and most chemical and cleaning solutions.

Tread & Core: Glass-Filled Nylon

Bearing: Sealed Precision Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 800 Lbs.
  • Color: Black
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45° F to 425° F
Load Capacity 800 Lbs.
Wheel Diameter 4"
Tread Width 2"
Tread Type  Glass-Filled Nylon
Core Type  Glass-Filled Nylon
Bearing Type Sealed Precision Bearing
Wheel Color Black
Overall Height 5-5/8"
Swivel Radius 3-1/4"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
Lock Type
Top Lock Brake
Shore D 85 (+/-5)
Temperature Range
-45° F to 190° F
