4" x 2" Mold-On Rubber Cast Swivel Caster w/ Top Lock Brake - 400 lbs. Cap.

In stock
SKU: 27RS40JB0417TY
Regular price $39.48
Est. Ship Date: Tuesday, April 23rd
Four Position Swivel Lock
Trusted By

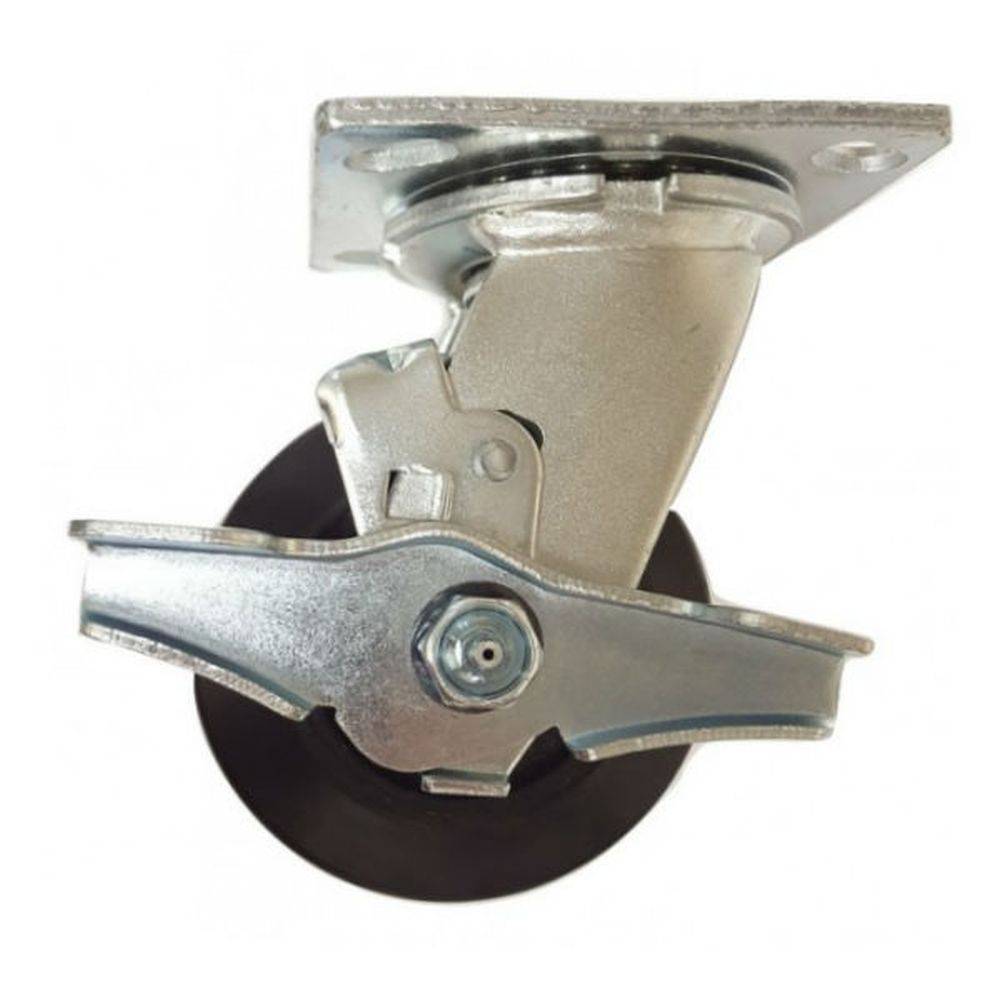

4" x 2" Mold-On Rubber Cast Wheel Swivel Caster with Top Lock Brake

The mold-on rubber cast wheel is an economic wheel, providing a cushion while rolling on a strong cast iron core. This wheel performs best in dry applications.

Tread: Rubber Vulcanized To Core

Core: Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 400 Lbs.
  • Color: Black
  • Durometer: Shore A 80 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity 400 Lbs.
Wheel Diameter 4"
Tread Width 2"
Tread Type
Rubber Vulcanized To Core
Core Type Cast Iron
Bearing Type Roller Bearing
Wheel Color Black
Overall Height 5-5/8"
Swivel Radius 3-1/4"
Plate Size 4"X4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Lock Type Top Lock Brake
Durometer Shore A 80 (+/-5)
Temperature Range
-40° F to 180° F
