4" x 1-1/4" Poly-Pro Wheel Swivel Caster - 350 lbs. capacity

In stock
SKU: 75PP40GA4417YY
Regular price $14.24

Mounting Plate Size
Trusted By

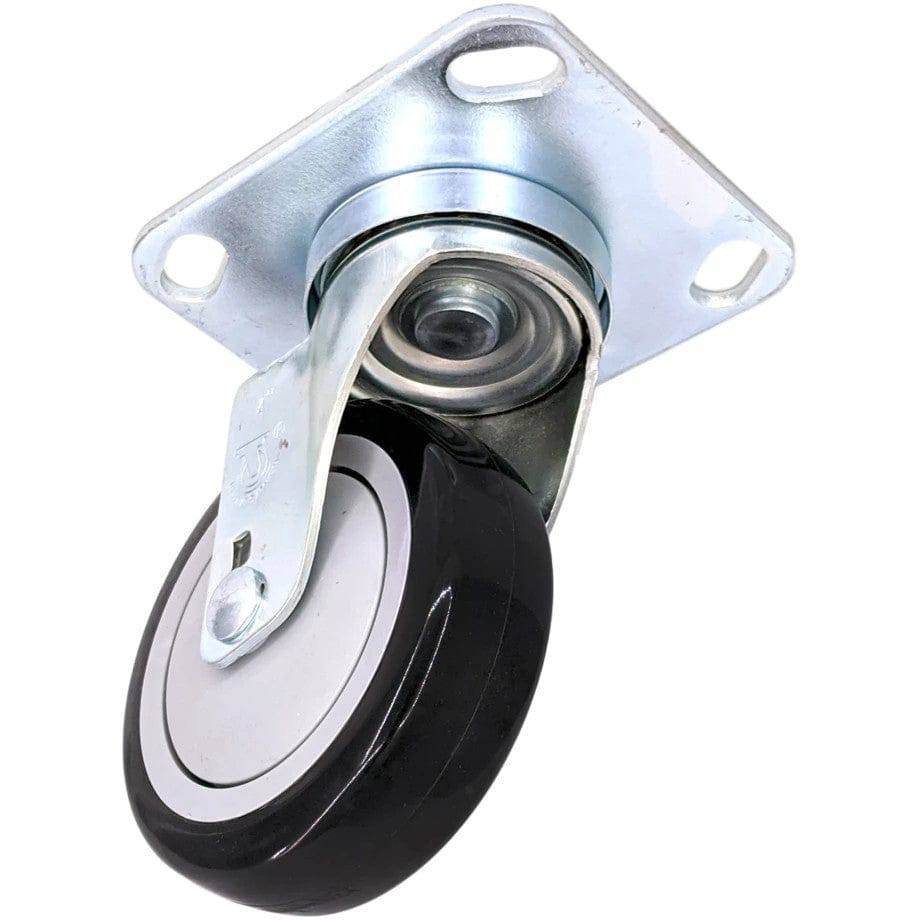

4" x 1-1/4" Poly-Pro Wheel Swivel Caster

The Poly-Pro wheel is one of our caster staples, providing plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These wheels work best for indoor applications; for outdoor use, please take a look at our Polymadic wheel casters with UV resistant materials.

Tread: Polyurethane, Non-Marking, Mechanically Locked To Core

Core: Polyolefin

Bearing: Precision Ball Bearing With Guards

Rig Options:
- Zinc-Plated Swivel Caster, 2-3/8" x 3-5/8" Mounting Plate
- Zinc-Plated Swivel Caster, 3-1/8" x 4-1/8" Mounting Plate
- Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 350 Lbs.
  • Color: Black on Gray
  • Durometer: Shore D 60 (+/-5)
  • Temperature Range: -20°F to 180°F
Load Capacity 350 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type
Polyurethane, Non-Marking, Mechanically Locked To Core
Core Type Polyolefin Core
Bearing Type Precision Ball Bearing With Guards
Wheel Color Black on Gray
Overall Height 5-1/8"
Swivel Radius 3-13/32"
Plate Size - 2-3/8" x 3-5/8"
- 3-1/8" x 4-1/8"
4" x 4-1/2"
Bolt Hole Pattern - 1-3/4" x 2-7/8" to 1-3/4" x 3"
- 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
- 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter - 5/16"
- 3/8"
- 3/8"
Durometer
Shore D 60 (+/-5)
Temperature Range
-20°F to 180°F
