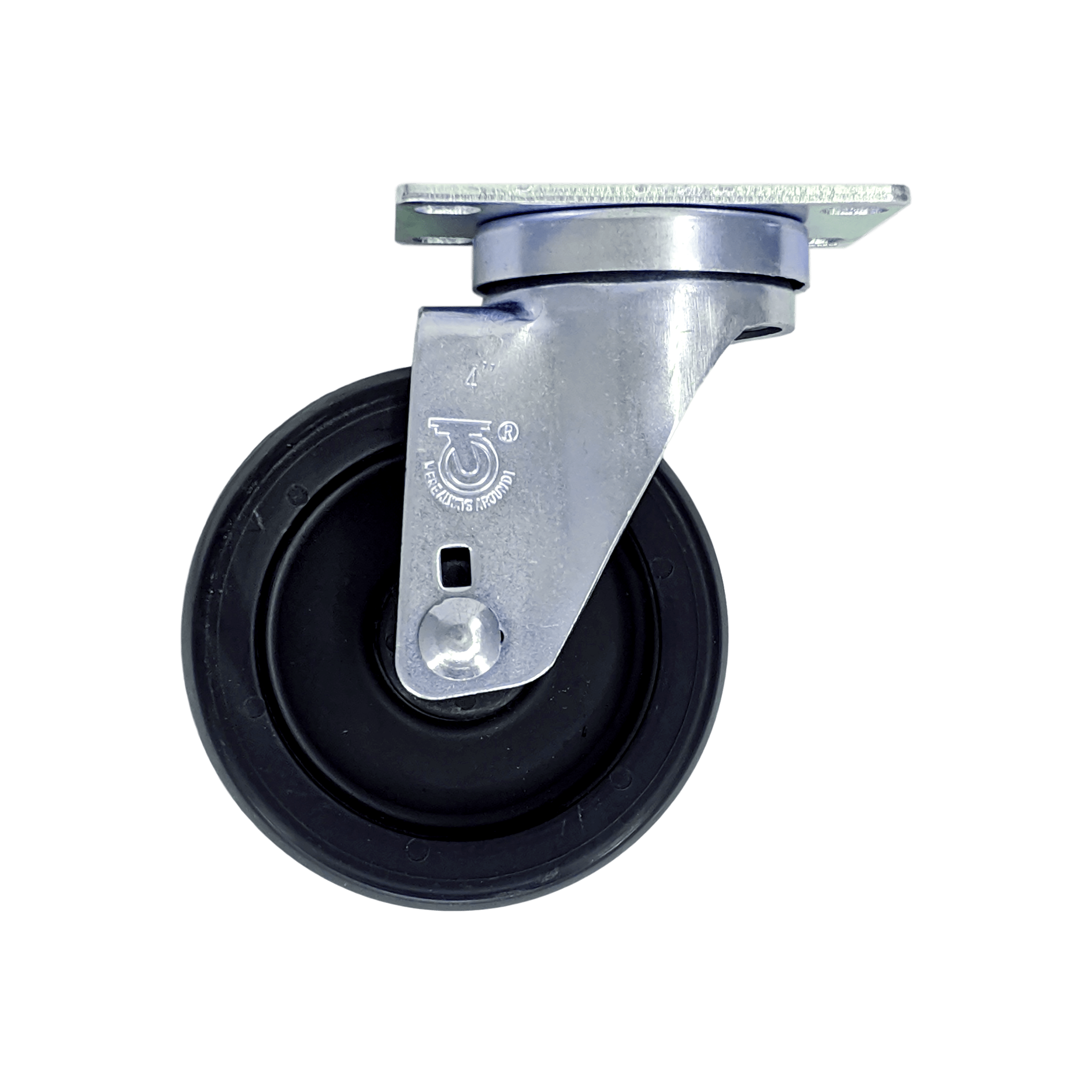

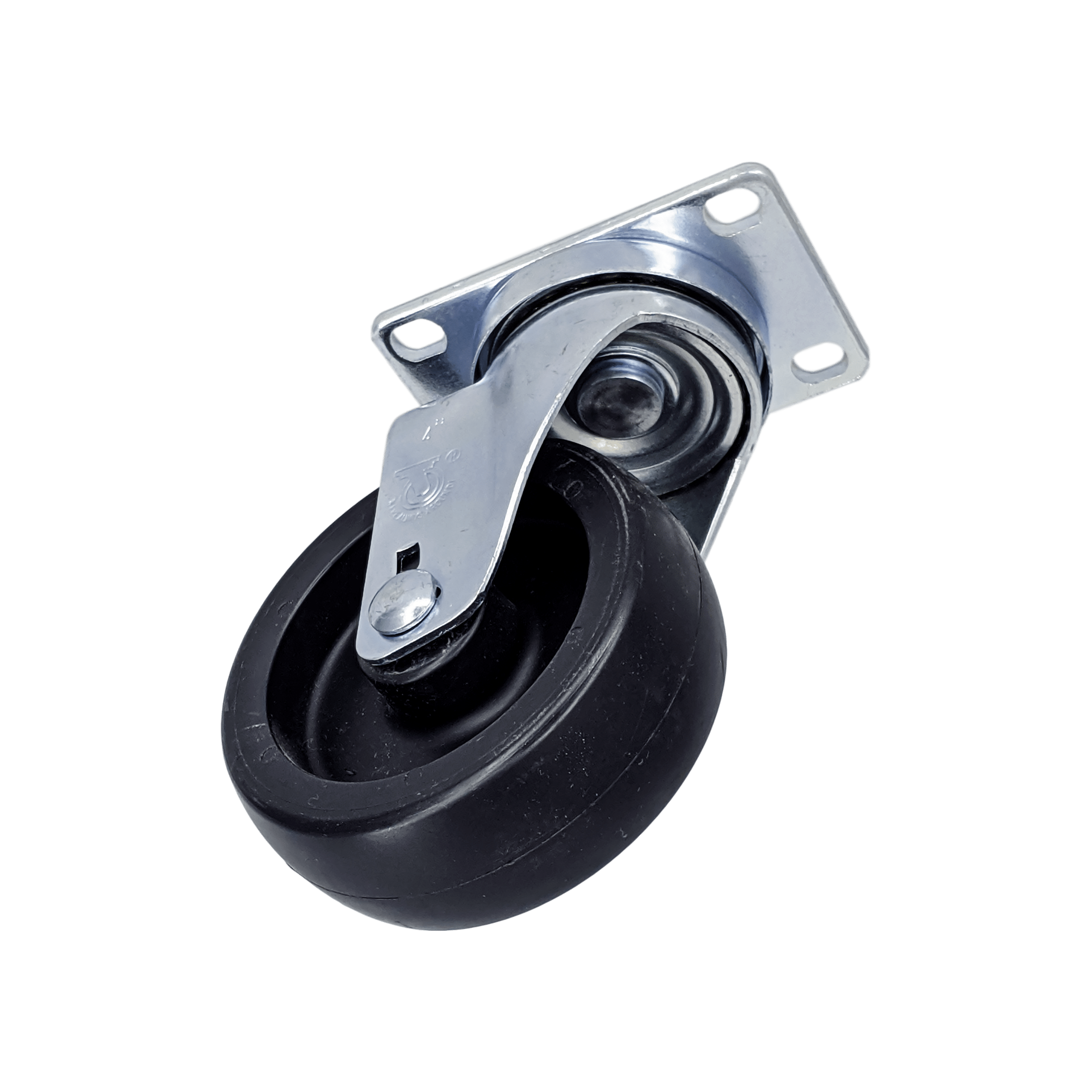

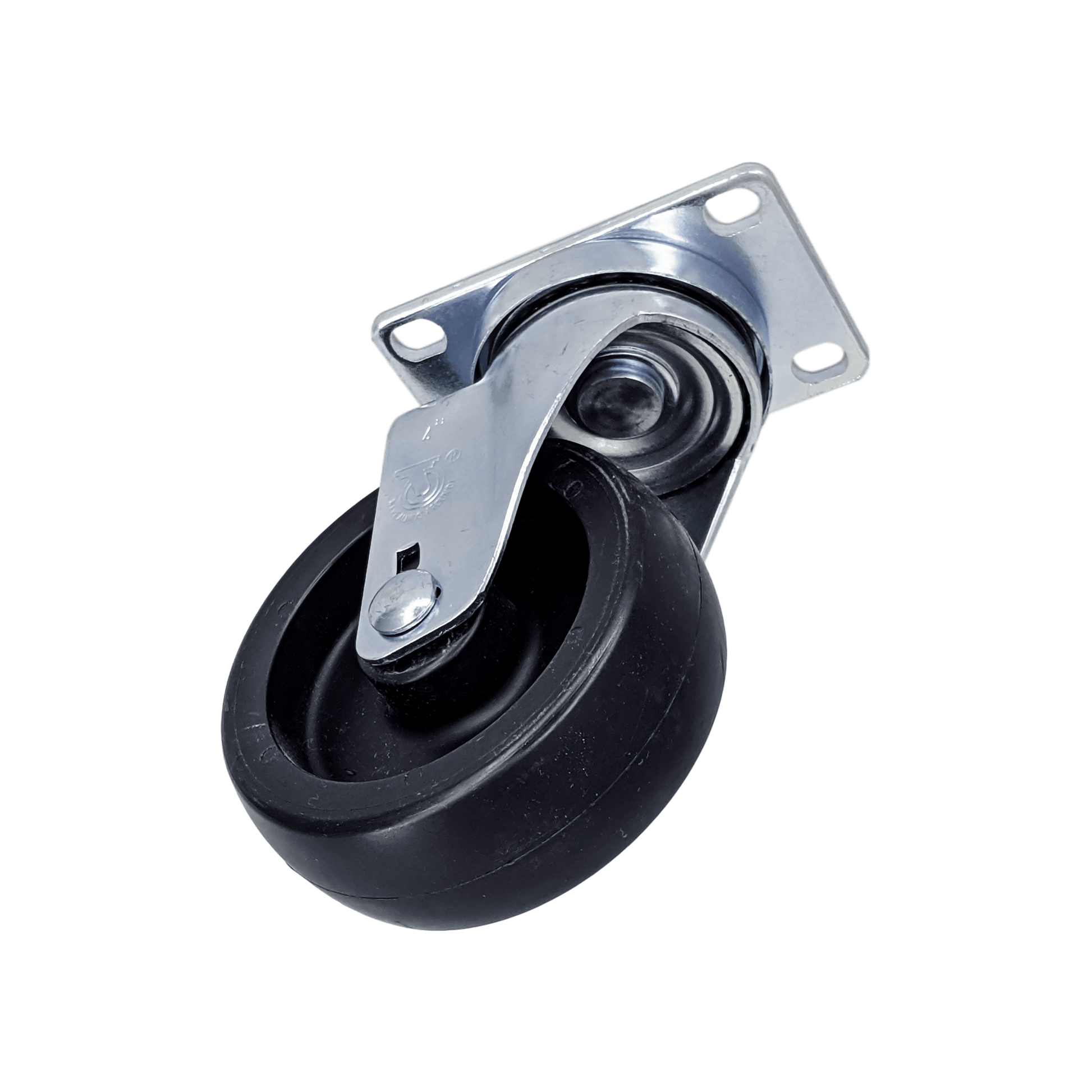

4" x 1-1/4" Polyolefin Wheel Swivel Caster w/ Swivel Dust Cap - 350 lbs. Cap.

In stock
SKU: 75PO40GB8217YY
Regular price $11.16
Est. Ship Date: Wednesday, April 24th
Mounting Plate Size
Trusted By

4" x 1-1/4" Polyolefin Wheel Swivel Caster with Swivel Dust Cap

The polyolefin wheel is economical and lightweight with a high load capacity. This hard wheel is highly resistant to organic solvents, oil, grease, and most chemicals, acids, and cleaning solutions.

Tread & Core: Solid Cast Polyolefin

Bearing: Plain Bore

Rig Options:
- Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate
- Zinc-Plated Swivel Caster With Swivel Dust Cap, 3-1/8" x 4-1/8" Mounting Plate
- Zinc-Plated Swivel Caster With Swivel Dust Cap, 4" x 4-1/2" Mounting Plate

  • Capacity: 350 Lbs.
  • Color: Black
  • Durometer: Shore D 70 (+/-5)
  • Temperature Range: -20°F to 180°F
Load Capacity 350 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type Solid Cast Polyolefin
Core Type Solid Cast Polyolefin
Bearing Type Plain Bore (no bearing)
Wheel Color
Black
Overall Height
5-1/8"
Swivel Radius 3-7/16"
Plate Size 2-3/8" x 3-5/8"
- 3-1/8" x 4-1/8"
- 4" x 4-1/2"
Bolt Hole Pattern - 1-3/4" x 2-7/8" to 1-3/4" x 3"
- 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"
- 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter - 5/16"
- 3/8"
- 3/8"
Durometer Shore D 70 (+/-5)
Temperature Range -20°F to 180°F
