3-1/4" x 2" Polyon Cast Wheel Swivel Caster - 500 lbs. Capacity

In stock
SKU: 27PU34JG0417YY
Regular price $45.34

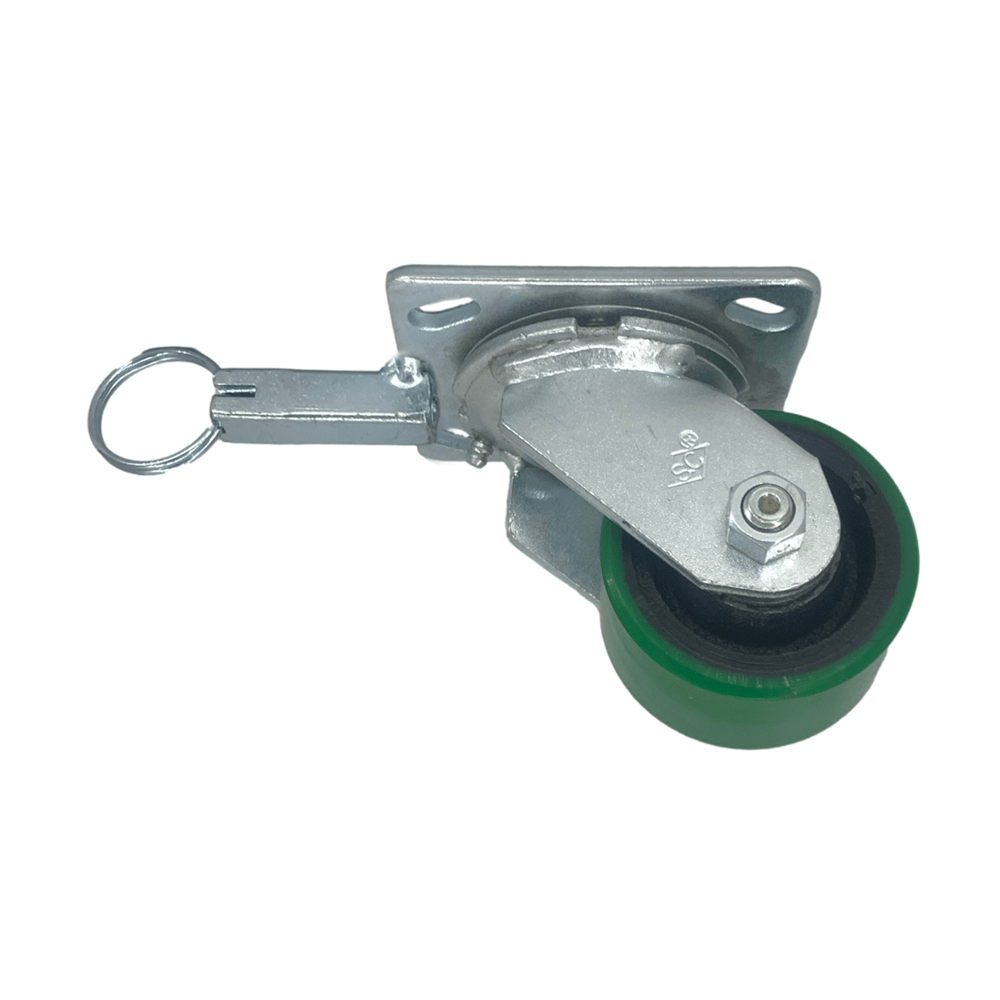

Four Position Swivel Lock
Trusted By

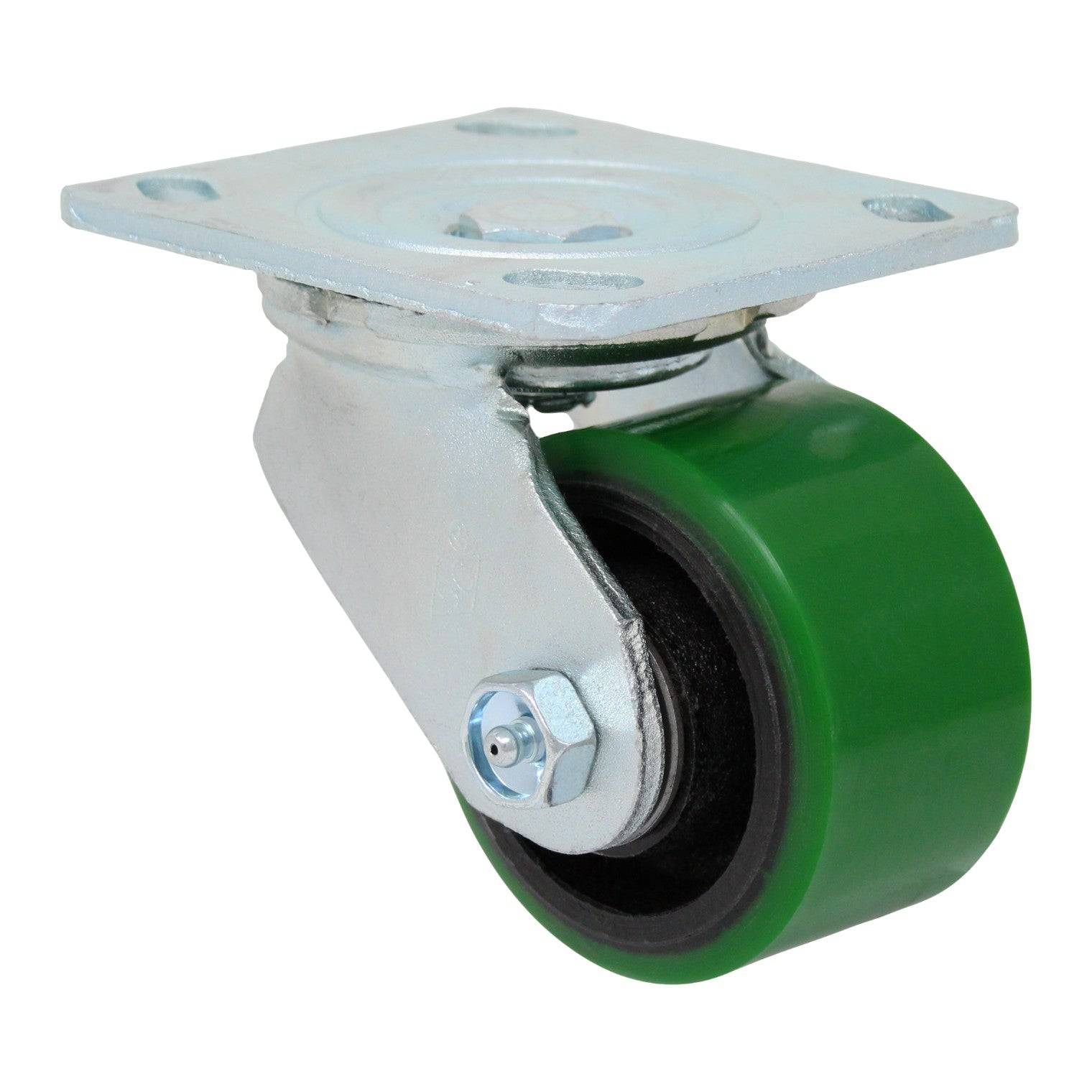

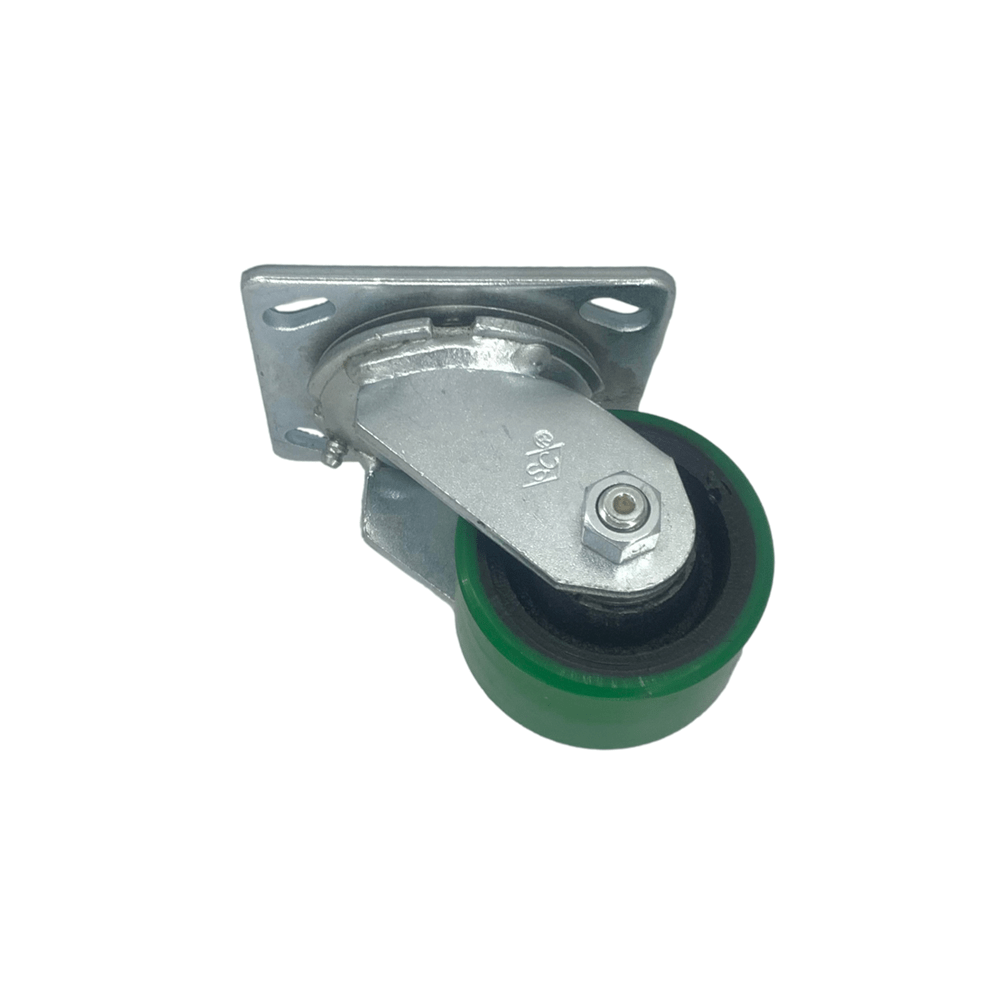

3-1/4" x 2" Polyon Cast Wheel Swivel Caster

Polyurethane elastomer tread chemically bonded to a cast iron core. These wheels are somewhat heavy and are ideal for warehouses with concrete and hardwood flooring.

Tread: Polyurethane Elastomer

Core: Cast Iron

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 500 Lbs.
  • Color: Green and Black
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -40° F to 180° F
Load Capacity 500 Lbs.
Wheel Diameter 3-1/4"
Tread Width 2"
Tread Type Polyurethane Elastomer
Core Type Cast Iron
Bearing Type Roller Bearing
Wheel Color Green/Black
Overall Height 4-1/4"
Swivel Radius 3-1/4"
Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
3/8"
Durometer
Shore A 95 (+/-5)
Temperature Range -40° F to 180° F
