4" x 1-1/4" Thermo-Pro Wheel Rigid Caster - 250 lbs. capacity

In stock
SKU: 76TP40GI4411YY
Regular price $11.07
Est. Ship Date: Monday, June 3rd
Mounting Plate Size
Trusted By

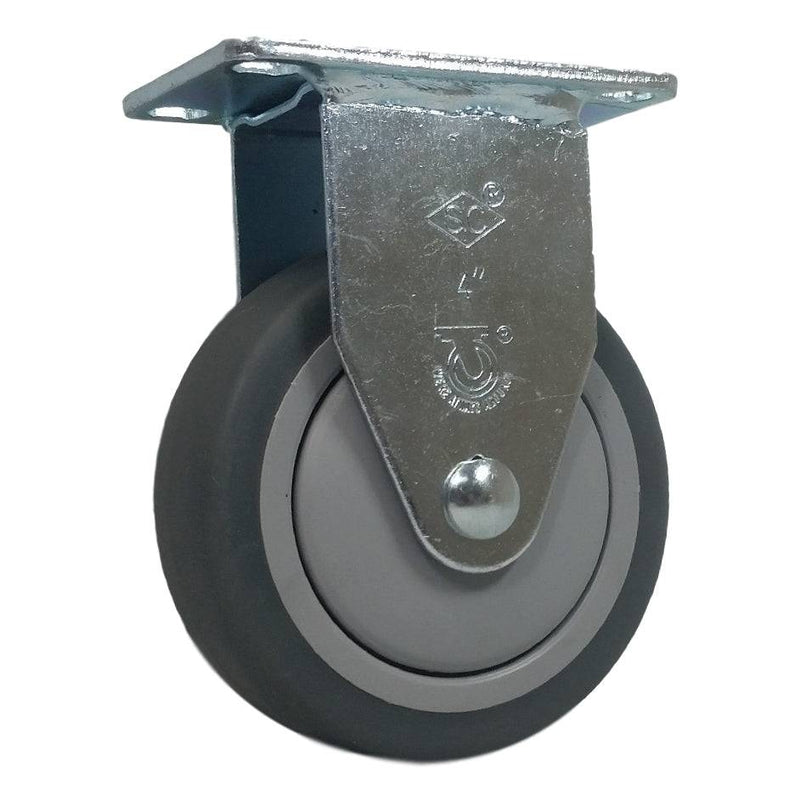

4" x 1-1/4" Thermo-Pro Wheel Rigid Caster

The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.

Tread: Non-Marking Thermoplastic Rubber

Core: Solid Polyolefin

Bearing: Ball Bearing

Rig: Zinc-Plated Rigid Caster, Multiple Mounting Plate Options

  • Capacity: 250 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore A 75 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 250 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type
Non-Marking Thermoplastic Rubber
Core Type Polyolefin Core
Bearing Type Sealed Precision Bearing
Wheel Color Gray/Gray
Overall Height 5-1/8"
2-3/8" x 3-5/8" Plate Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
3-1/8" x 4-1/8" Plate Bolt Hole Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Bolt Hole Diameter 3/8"
Durometer Shore A 65 (+/-5)
Temperature Range
-45° F to 180° F
