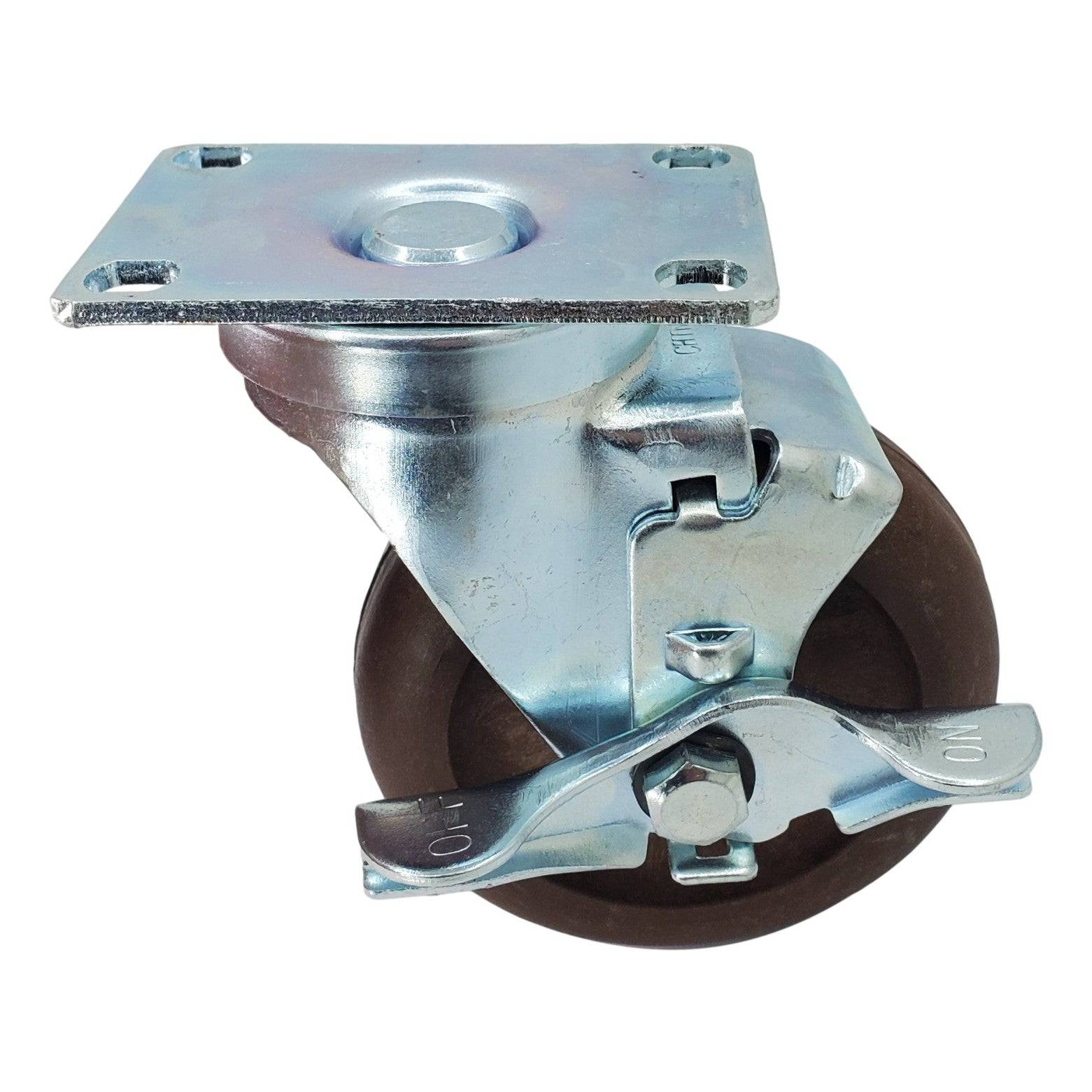

4" x 1-1/2" High Temp. Brimstone Wheel Swivel Caster w/ Top Lock Brake - 350 Lbs. Capacity

In stock
SKU: 75GN40HQ9006TZ
Regular price $25.92

Trusted By

4" x 1-1/2" High Temp. Brimstone Wheel Swivel Caster with Top Lock Brake

Brimstone wheels are made out of an exclusively engineered thermo compound designed for high temperature, autoclave, and steam cleaning wash-down applications. They provide excellent resistance to oil, grease, salt, and most acids, chemicals, and cleaning solutions.

Tread & Core: Solid Cast Thermo Compound

Bearing: Sleeve Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate

  • Capacity: 300 Lbs.
  • Color: Brown
  • Durometer: Shore D 85 (+/-5)
  • Temperature Range: -45°F to 425°F continuous, up to 550°F intermittent
Load Capacity 300 Lbs.
Wheel Diameter 4"
Tread Width 1-1/2"
Tread Type Solid Cast Thermo Compound
Core Type
Solid Cast Thermo Compound
Bearing Type
Sleeve Bearing
Wheel Color
Brown
Overall Height
5"
Swivel Radius
3-13/32"
Plate Size
2-3/8" x 3-5/8"
Bolt Hole Pattern
1-3/4" x 2-15/16" slotted to 3"
Bolt Hole Diameter  5/16"
Lock Type Top Lock
Durometer  Shore D 85 (+/-5)
Temperature Range  -45°F to 425°F continuous, up to 550°F intermittent
