4" x 1-1/4" Conductive Thermo Rubber Wheel Swivel Caster 200 lbs. Capacity

In stock
SKU: 23CN40GH4406YY
Regular price $23.94
Est. Ship Date: Thursday, May 2nd
Trusted By

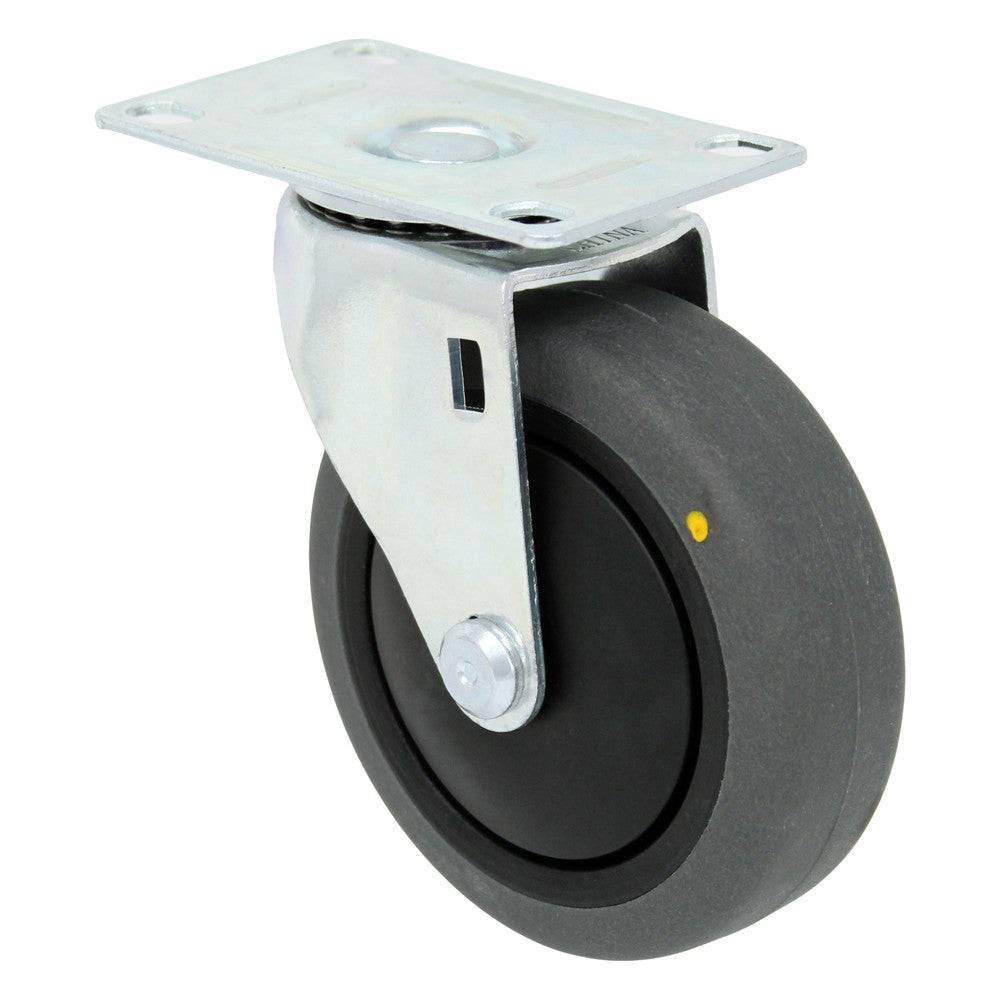

4" x 1-1/4" Conductive Thermo Rubber Wheel Swivel Caster

The Conductive thermo-rubber wheel is made with special metal fiber to ensure sufficient conductivity throughout the life of the wheels. Thermo rubber is shock absorption and protects floors. Surface resistance > 1 x 103 but < 1 x 10which exceeds Federal ESD Standard. The thermoplastic rubber tread is non-marking.

Tread: Non-Marking Conductive Thermoplastic Rubber

Core: Solid Polyolefin

Bearing: Ball Bearing

Rig: Zinc-Plated Swivel Caster, 2-3/8" x 3-5/8" Mounting Plate

  • Capacity: 200 Lbs.
  • Color: Gray on Black
Load Capacity 200 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type Non-Marking Thermoplastic Rubber
Core Type Solid Polyolefin
Bearing Type Ball Bearing
Wheel Color Black/Gray
Overall Height 5-3/16"
Plate Size 2-3/8" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
