4" x 1-1/4" High Temp. Brimstone Wheel Swivel Caster w/ Total Lock Brake- 300 Lbs. Capacity
Couldn't load pickup availability
Trusted By

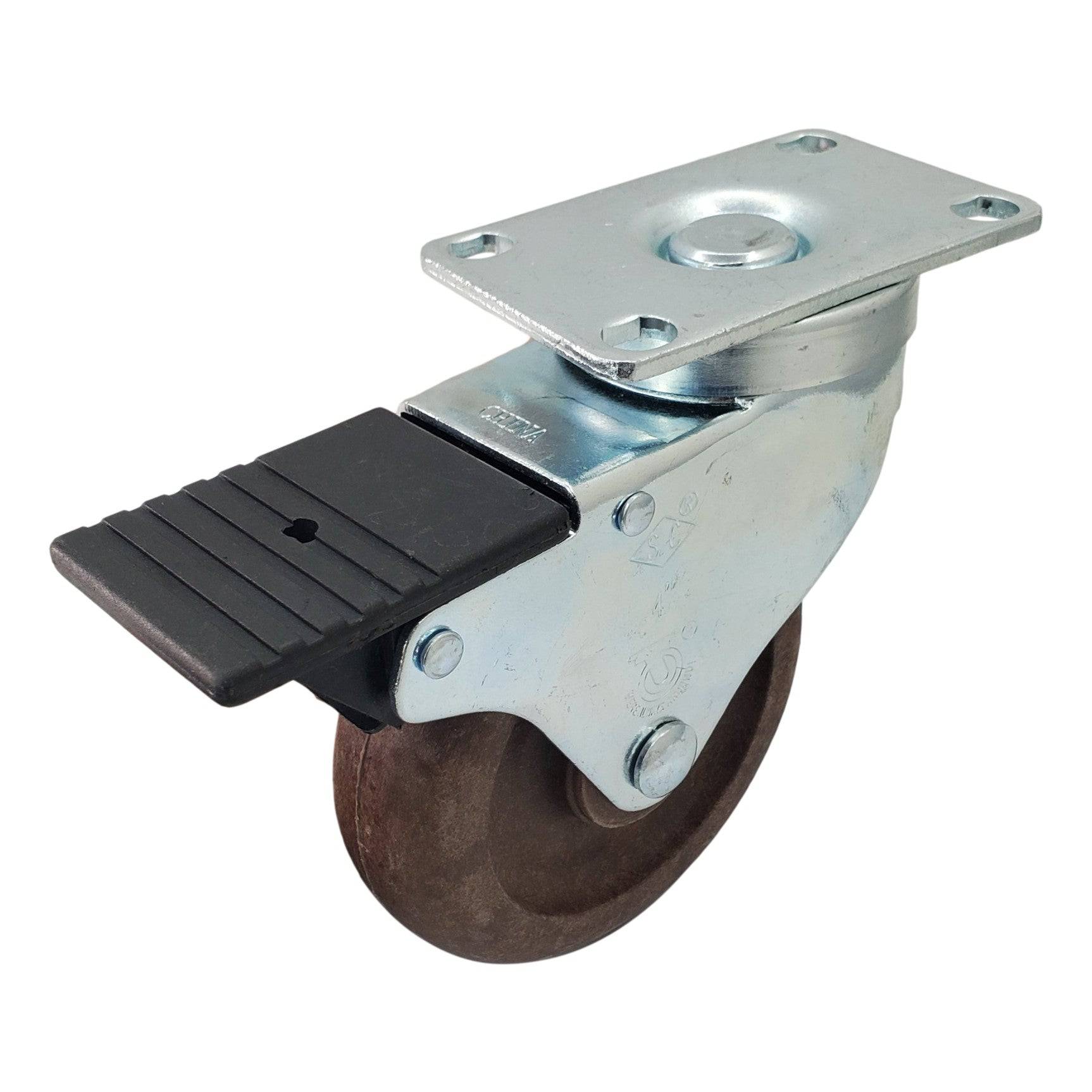

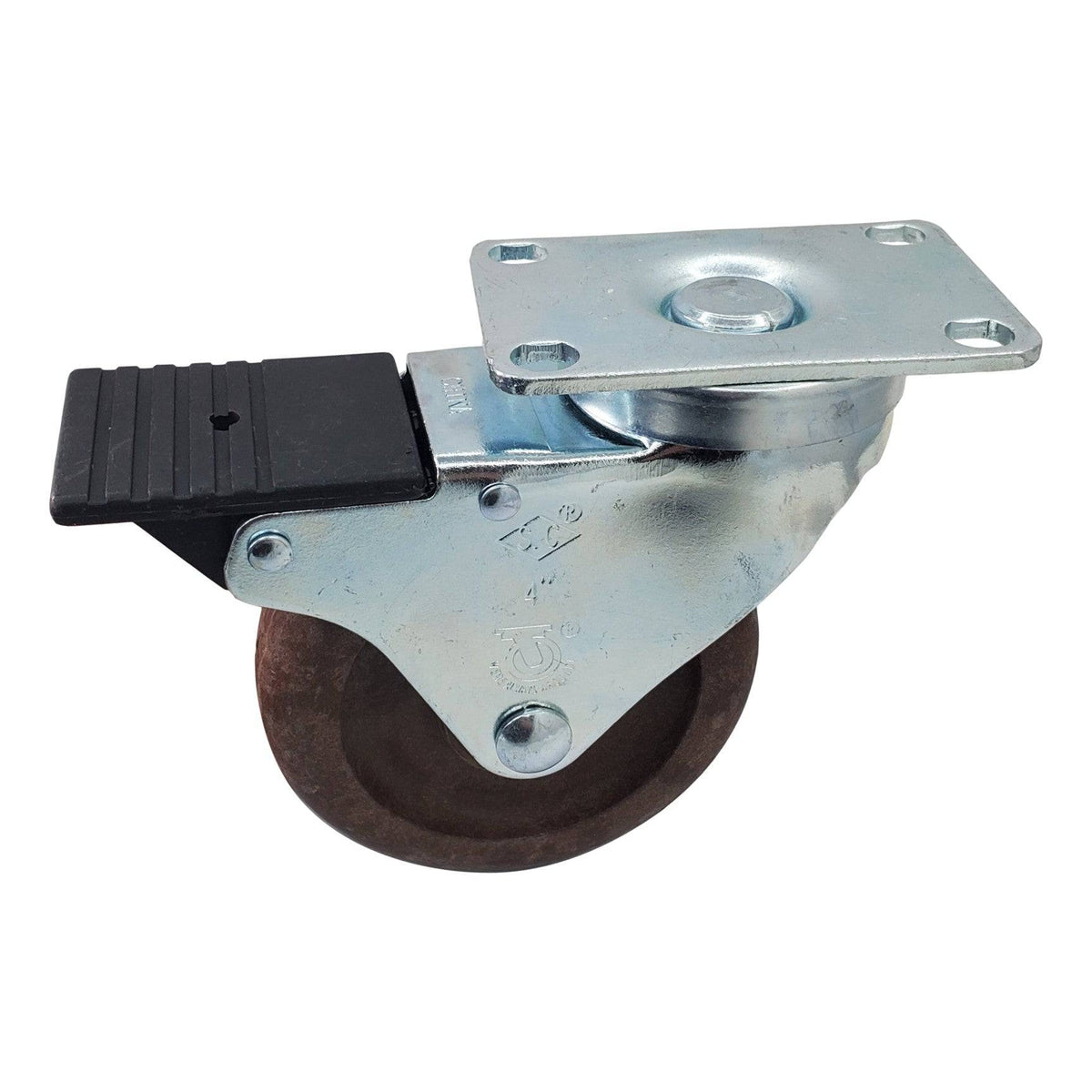

4" x 1-1/4" High Temp. Brimstone Wheel Swivel Caster with Total Lock Brake
Brimstone wheels are made out of an exclusively engineered thermo compound designed for high temperature, autoclave, and steam cleaning wash-down applications. They provide excellent resistance to oil, grease, salt, and most acids, chemicals, and cleaning solutions.
Tread & Core: Solid Cast Thermo Compound
Bearing: Plain Bore
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake
- Capacity: 300 Lbs.
- Color: Brown
- Durometer: Shore D 85 (+/-5)
- Temperature Range: -45°F to 425°F continuous, up to 550°F intermittent
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | Solid Cast Thermo Compound |
| Core Type |
Solid Cast Thermo Compound |
| Bearing Type |
Plain Bore |
| Wheel Color |
Brown |
| Overall Height |
5" |
| Swivel Radius |
3-13/32" |
| Plate Size |
2-3/8" x 3-5/8" |
| Bolt Hole Pattern |
1-3/4" x 2-15/16" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Total Lock Brake |
| Durometer | Shore D 85 (+/-5) |
| Temperature Range | -45°F to 425°F continuous, up to 550°F intermittent |
