4" x 1-1/4" Nomadic Wheel Swivel Caster w/ Top Lock Brake - 300 lbs. Capacity

In stock
SKU: 75NM40GI4311TY
Regular price $18.32
Est. Ship Date: Wednesday, March 13th
Mounting Plate Size
Trusted By

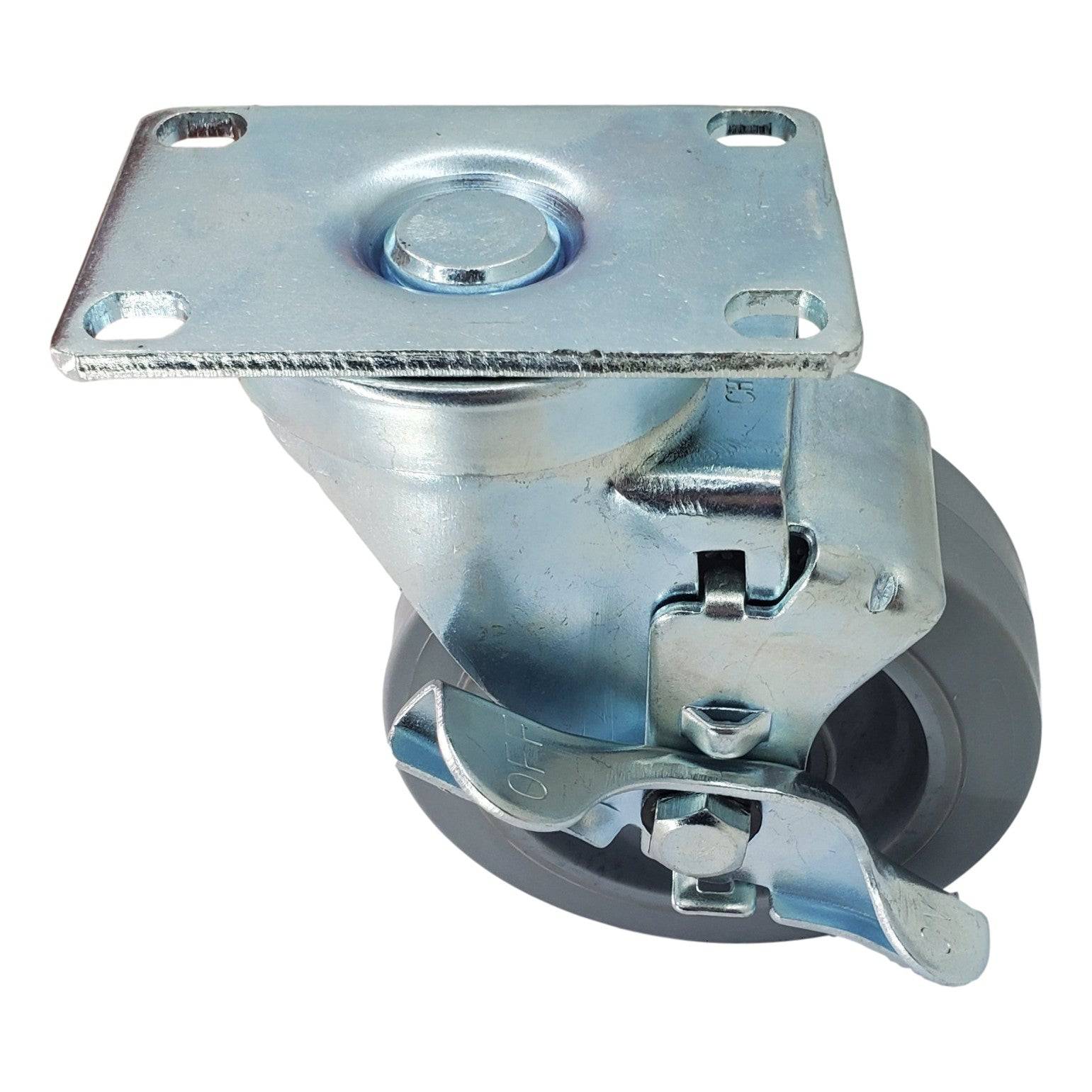

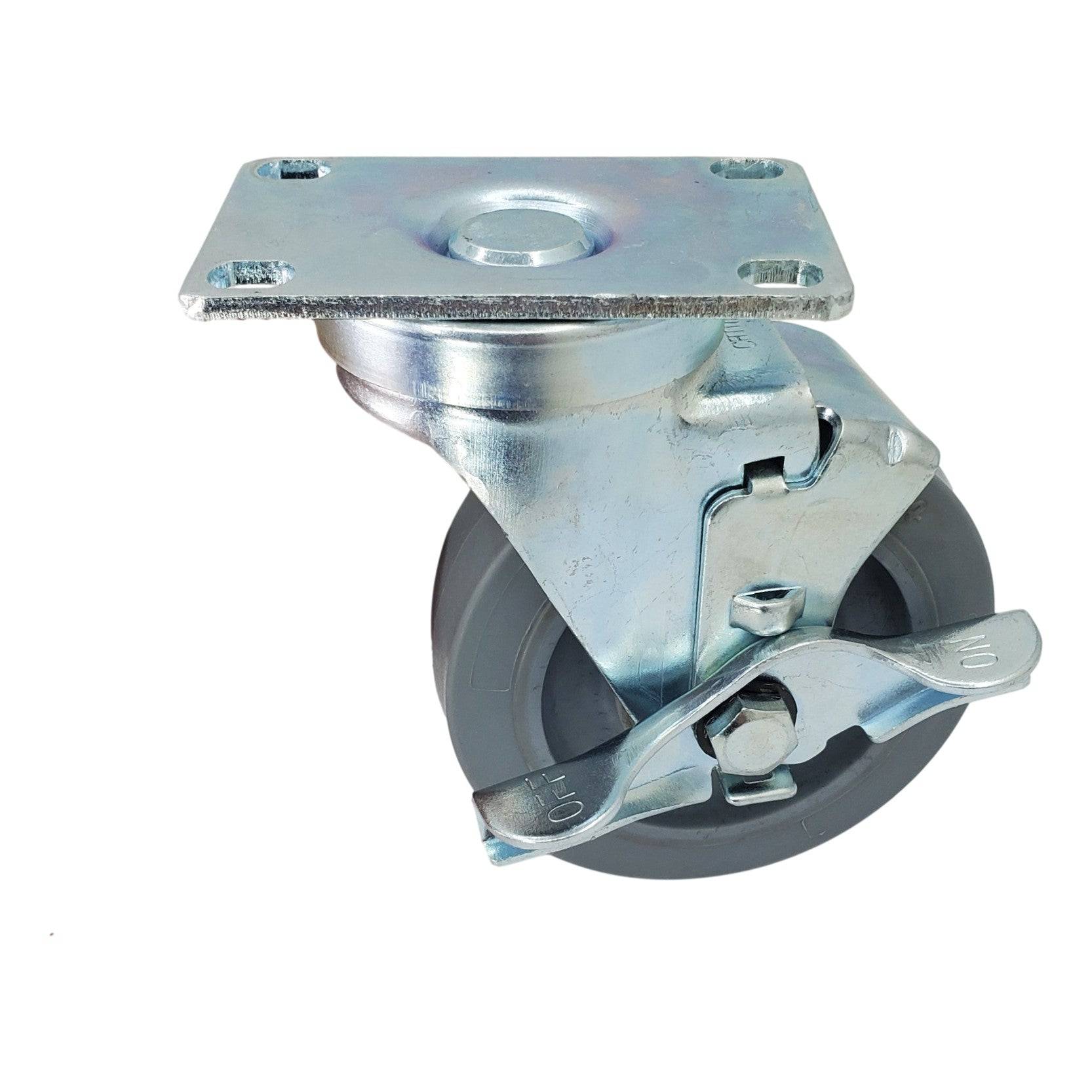

4" x 1-1/4" Nomadic Wheel Swivel Caster with Top Lock Brake

The Nomadic wheel is quiet rolling, provides a cushioned ride, and is impact-resistant, making it a great wheel for carts that carry sensitive cargo. With a flat tread, this wheel works well on hard floors, and the high-performance thermo-elastomer tread works great over bumps and thresholds.

Tread: High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core

Core: Polyolefin Core

Bearing: Annular Ball Bearing

Rig: Zinc-Plated Swivel Caster, Multiple Mounting Plate Sizes

  • Capacity: 300 Lbs.
  • Color: Gray and Non-Marking
  • Durometer: Shore A 65 (+/-5)
  • Temperature Range: -45° F to 180° F
Load Capacity 300 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type
High-Performance Thermo-Elastomer, Non-Marking, Chemically Bonded To Core
Core Type Polyolefin Core
Bearing Type Annular Ball Bearing
Wheel Color Gray/Gray
Overall Height 5-1/8"
Swivel Radius 3-7/16"
2-3/8" x 3-5/8" Plate Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
3-1/8" x 4-1/8" Plate Bolt Hole Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Bolt Hole Diameter 3/8"
Lock Type Top Lock Brake
Durometer Shore A 65 (+/-5)
Temperature Range
-45° F to 180° F
