4" x 1-1/4" Polyon Aluminum Wheel Swivel Caster w/ Total Lock Brake - 380 lbs. Capacity

In stock
SKU: T3PA40GL4306YY
Regular price $28.24
Est. Ship Date: Monday, December 18th
Trusted By

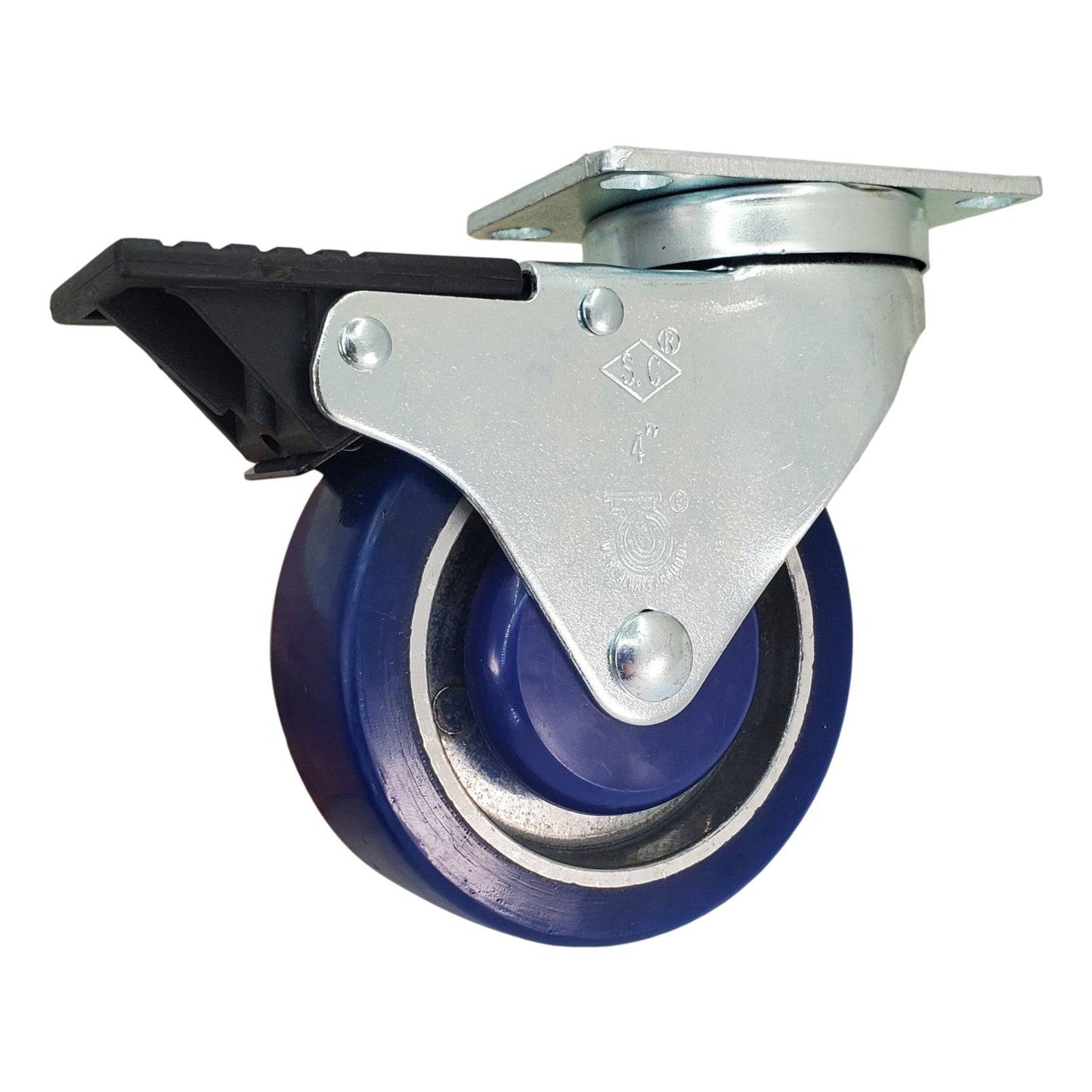

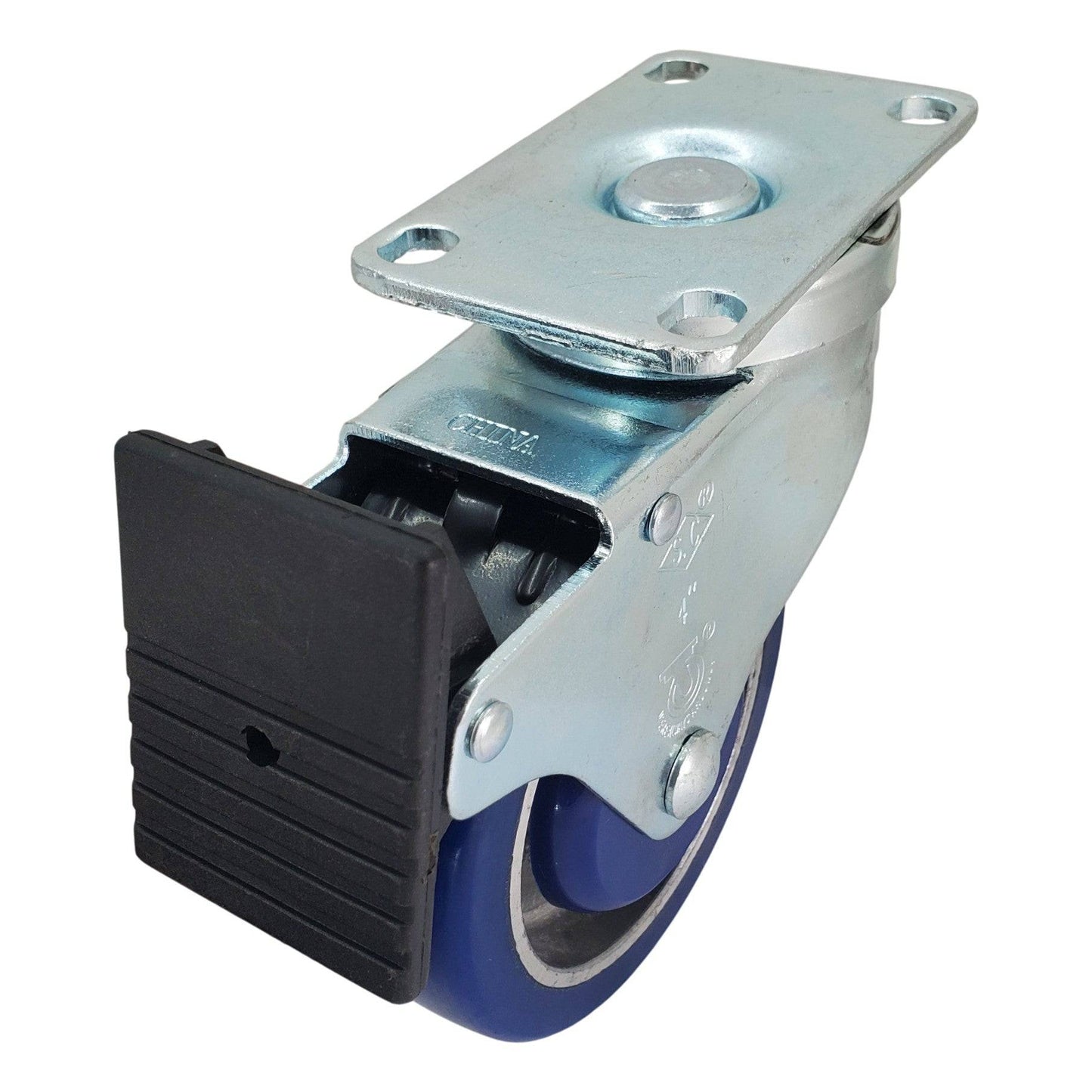

4" x 1-1/4" Polyon Aluminum Wheel Swivel Caster with Total Lock Brake

Polyurethane elastomer tread is chemically bonded to an aluminum core. The aluminum core has a strong attractive appearance, is lightweight, and is resistant to rust and corrosion.

Tread: Polyurethane Elastomer

Core: Aluminum

Bearing: Annular Ball Bearing

Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake

  • Capacity: 380 Lbs.
  • Color: Blue and Silver
  • Durometer: Shore A 95 (+/-5)
  • Temperature Range: -45° F to 180° F
Load Capacity 380 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type Polyurethane Elastomer
Core Type Aluminum
Bearing Type
Annular Ball Bearing
Wheel Color
Blue and Silver
Overall Height
5"
Swivel Radius
3-13/32"
Plate Size
2-3/8" x 3-5/8"
Bolt Hole Diameter
1-3/4" x 2-7/8" slotted to 3"
Lock Type  Total Lock Brake
Durometer  Shore A 95 (+/-5)
Temperature Range  -45°F to 180°F
