4" x 1-1/4" Semi-Steel Wheel Swivel Caster w/ Total Lock Brake - 300 lbs. Capacity

In stock
SKU: T3SS40GS8206YY
Regular price $21.79
Est. Ship Date: Monday, April 29th
Trusted By

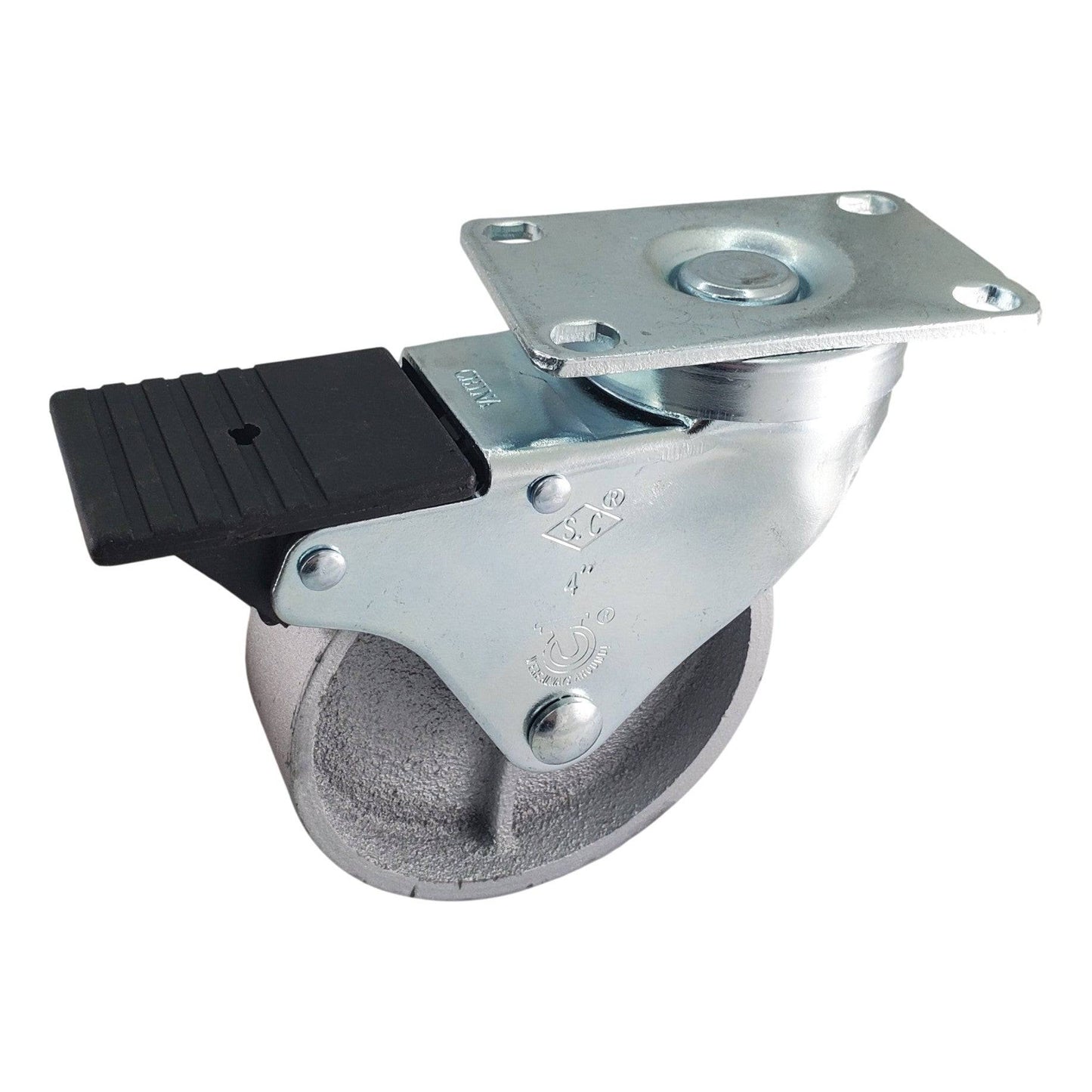

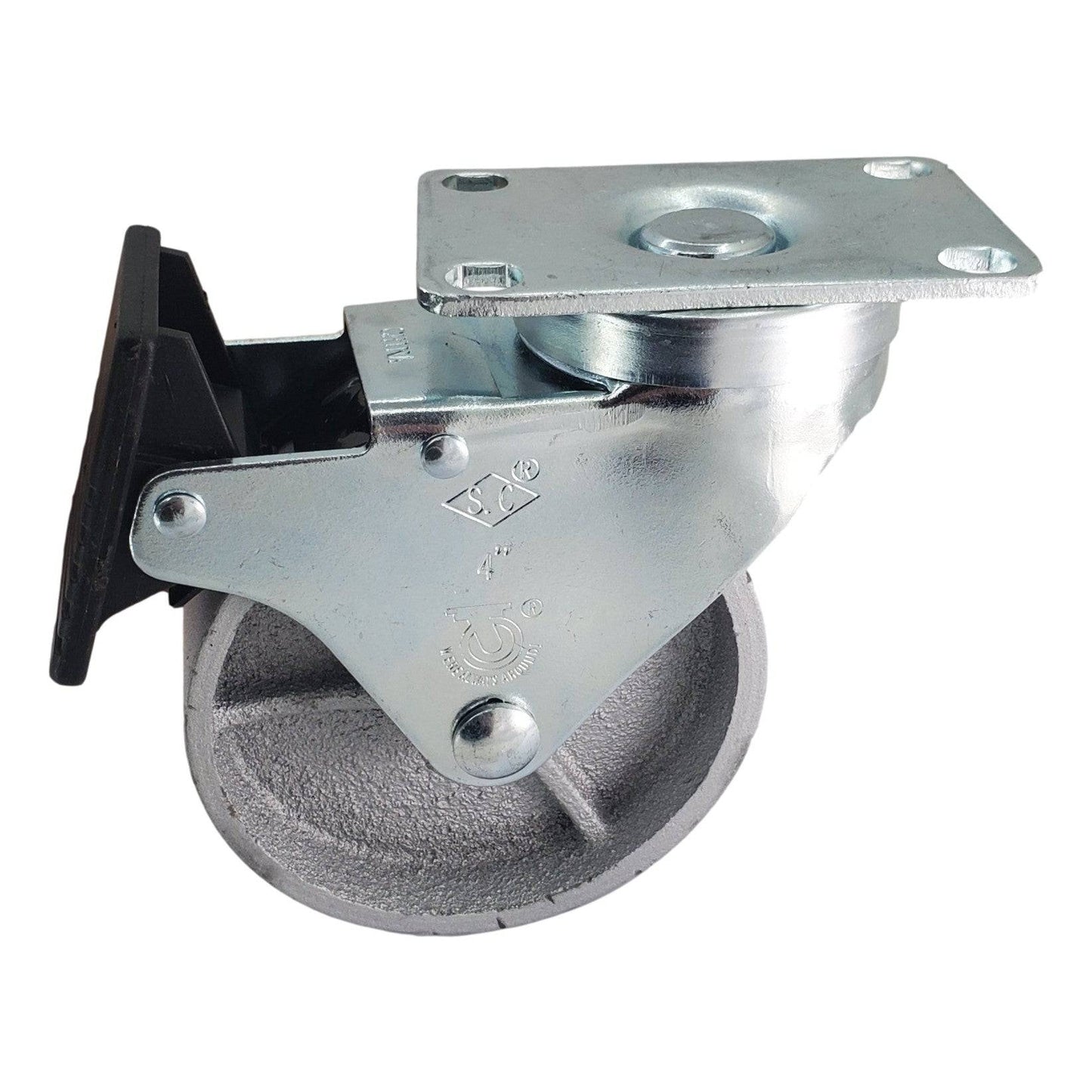

4" x 1-1/4" Semi-Steel Wheel Swivel Caster with Total Lock Brake

Semi-Steel offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. The Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.

Tread & Core: Steel Alloy

Bearing: Plain Bore

Rig: Zinc-Plated Rigid Caster, 2-3/8" x 3-5/8" Mounting Plate, Total Lock Brake

*Not ideal for high temp applications.

  • Capacity: 300 Lbs.
  • Hardness: Brinell 145
  • Tensile Strength of 30,000 PSI
  • Temperature Range: -45° F to 600° F
Load Capacity 300 Lbs.
Wheel Diameter 4"
Tread Width 1-1/4"
Tread Type  Steel Alloy
Core Type  Steel Alloy
Bearing Type Plain Bore
Wheel Color Silver
Overall Height 5-1/4"
Plate Size 2-3/8" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter
5/16"
Lock Type  Total Lock Brake
Tensile Strength
30,000 PSI
Temperature Range -45° F to 600° F
