5" Ductile Steel Wheel Kingpinless Swivel Caster - 1500 lbs. capacity

Regular price $67.15 Sale

1 - 3 Business Days

45DS50JR0417YY

Durable Superior Casters

Four Position Swivel Lock

$67.15

Category:

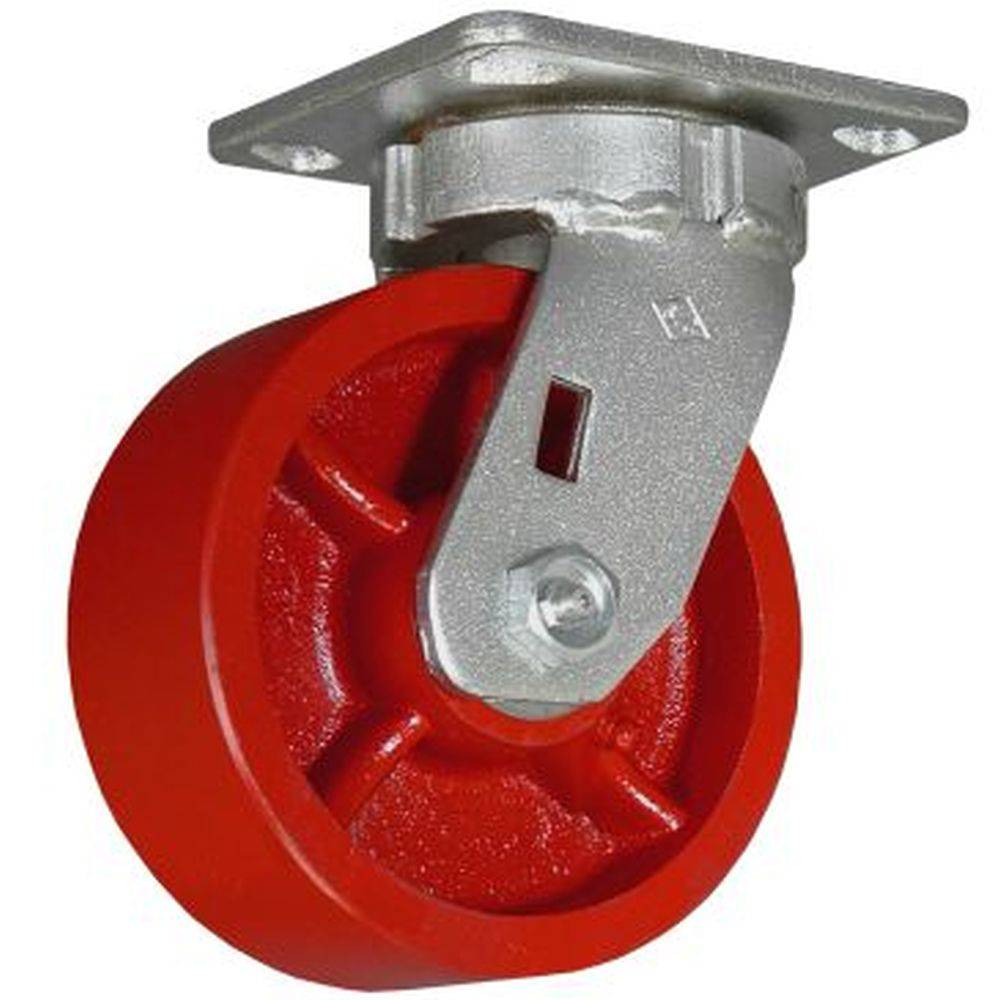

5" Ductile Steel Wheel Kingpinless Swivel Caster

5" x 2" Ductile Steel wheel (high strength steel alloy), Kingpinless swivel mounting plate dimensions 4" x 4-1/2", and overall height of 5-5/8". Medium heavy duty.

Ductile steel is a combination of special alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel; also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load.

Extra thick walled, heavy-duty core, hub & tread face.

  • 1,500 lbs. Capacity
  • Tensile Strength of 45,000 PSI
  • Wheel Color is Red
  • Temperature Range: -45° F to 800° F
Model No. 45DS50JR0417YY
Wheel Type Ductile steel alloy
Wheel Diameter 5"
Tread Width 2"
Load Capacity 1,500 lbs
Bearing Roller bearing
Mounting Plate Size 4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Overall Height 6-1/2"
Swivel Radius 3-3/4"
Wheel Type Swivel
Wheel Color Red
