Product Overview

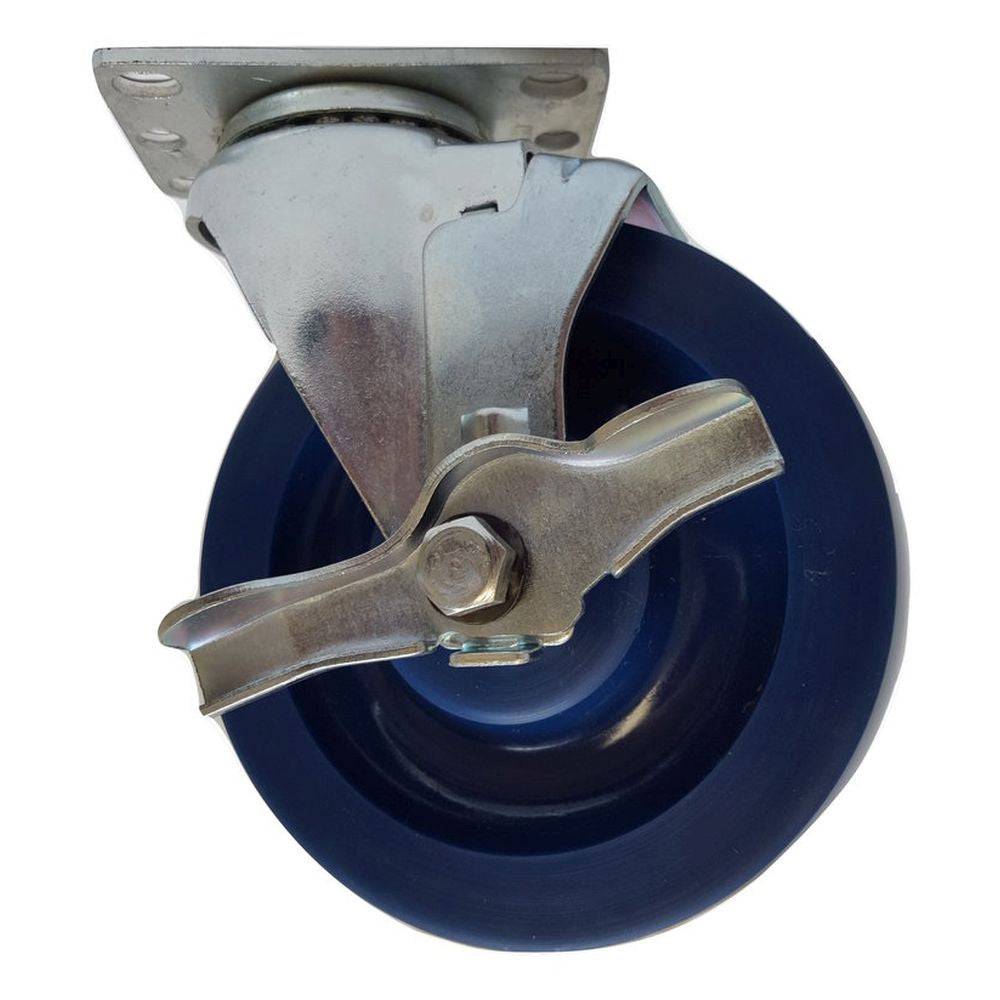

The Duralastomer wheel is corrosion-resistant, making it a great choice for applications that are frequently washed down.
Tread & Core: Solid Cast Polyurethane Elastomer, Non-Marking This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 350 Lbs., tread type Solid Cast Polyurethane Elastomer, Non-Marking, and bearing type Sleeve Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Solid Cast Polyurethane Elastomer, Non-Marking
- Bearing: Sleeve Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3 bolt-hole pattern
- Loads within the listed 350 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3 bolt-hole pattern
- Applications needing the listed Solid Cast Polyurethane Elastomer, Non-Marking wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3 bolt-hole pattern, or a different brake or lock style is required instead of Top Lock (Wheel Lock).
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Wheel Color | Blue |
| Load Capacity | 350 Lbs. |
| Overall Height | 6-1/8" |
| Bearing Type | Sleeve Bearing |
| Plate Size | 2-3/8" x 3-5/8" |
| Lock Type | Top Lock (Wheel Lock) |
| Model / MPN | 75SU50GL9006TY |
| Tread Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Core Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Swivel Radius | 4" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3 |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore D 60 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3 bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Top Lock (Wheel Lock).
