5" x 2" Ergolastomer Kingpinless Swivel Caster, Top Lock Brake, 1400# Cap

In stock
SKU: 45HU50JI6417TY
Regular price $117.77
Est. Ship Date: Friday, October 25th
Reliability Over 50 years in the industry, demonstrating reliability.
Serving customers Serving customers across all 50 states.
Heavy-duty Products designed for heavy-duty use.
Return Policy 30 Days Return Policy*
Trusted By

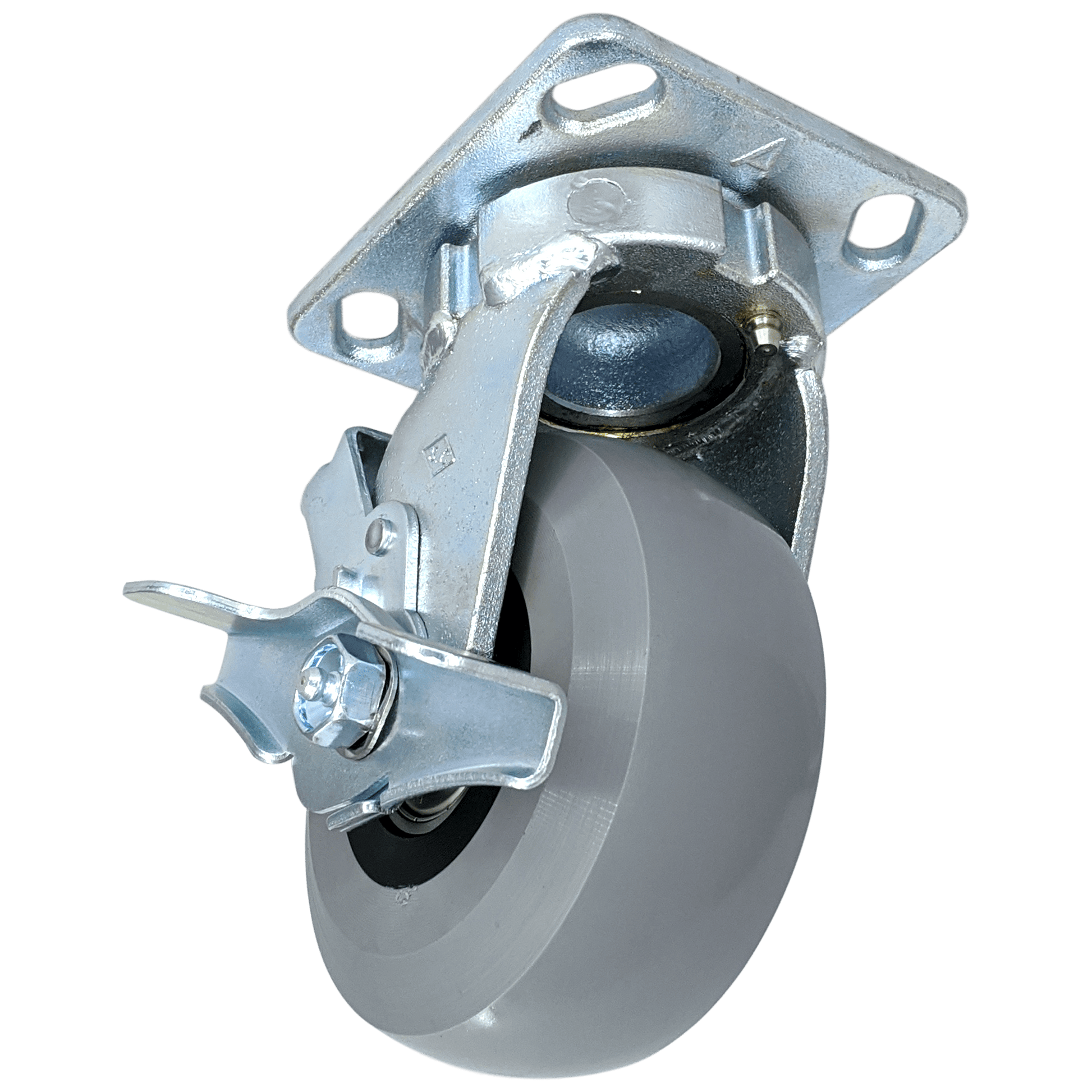

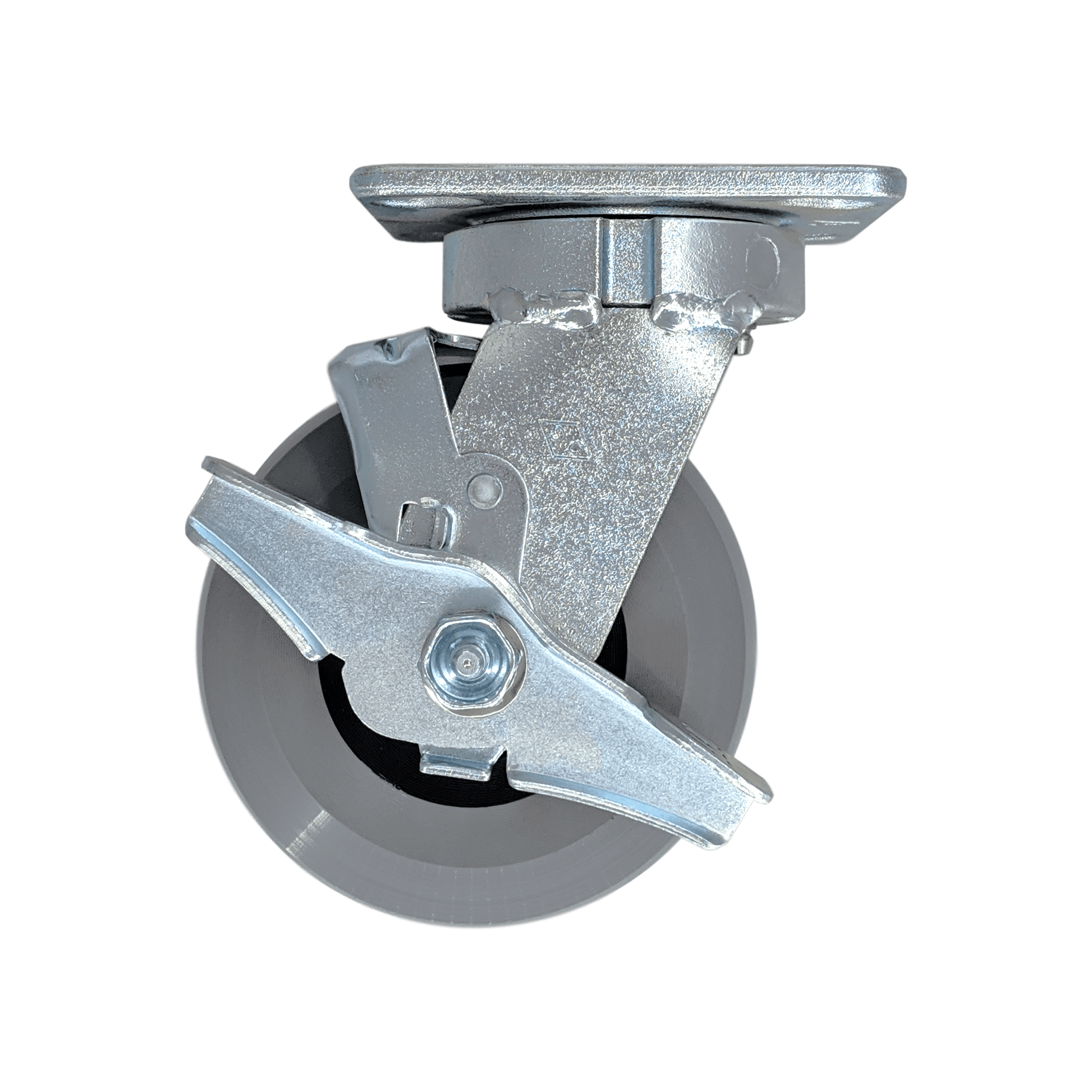

5" x 2" Ergolastomer Wheel Kingpinless Swivel Caster with Top Lock Brake

The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.

Tread: Solid Cast Polyurethane Elastomer, Non-Marking

Core: Glass Filled Nylon Bearing Collar

Bearing: Sealed Precision Bearing

Rig: Kingpinless Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 1,400 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore D 65 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity  1,400 Lbs.
Wheel Diameter 5"
Tread Width 2"
Tread Type  Solid Cast Polyurethane Elastomer, Non-Marking
Core Type  Glass Filled Nylon Bearing Collar
Bearing Type  Sealed Precision Bearing
Wheel Color  Gray on Gray
Overall Height  6-1/2"
Swivel Radius  3-3/4"
Plate Size  4" x 4-1/2"
Bolt Hole Pattern  2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type  Top Lock (Wheel Lock)
Durometer  Shore D 65 (+/-5)
Temperature Range -50° F to 180° F
