5" x 2" Ergolastomer Swivel Caster w/ Dual-Pedal Lock Brake - 1,250 lbs. Cap.

In stock
SKU: DTHU50JI6417YY
Regular price $84.55

Trusted By

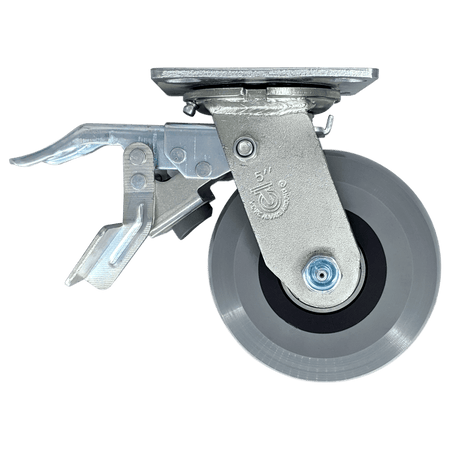

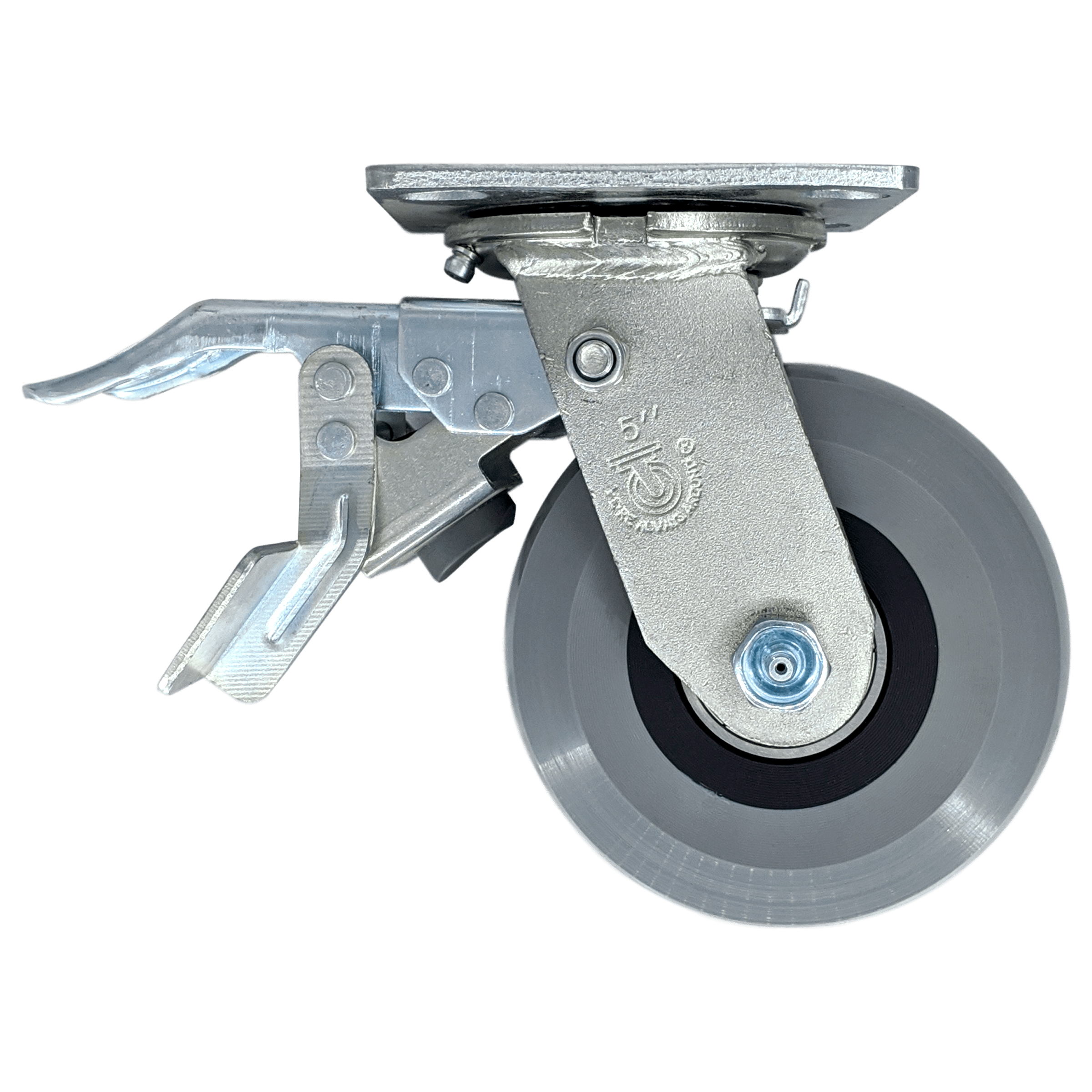

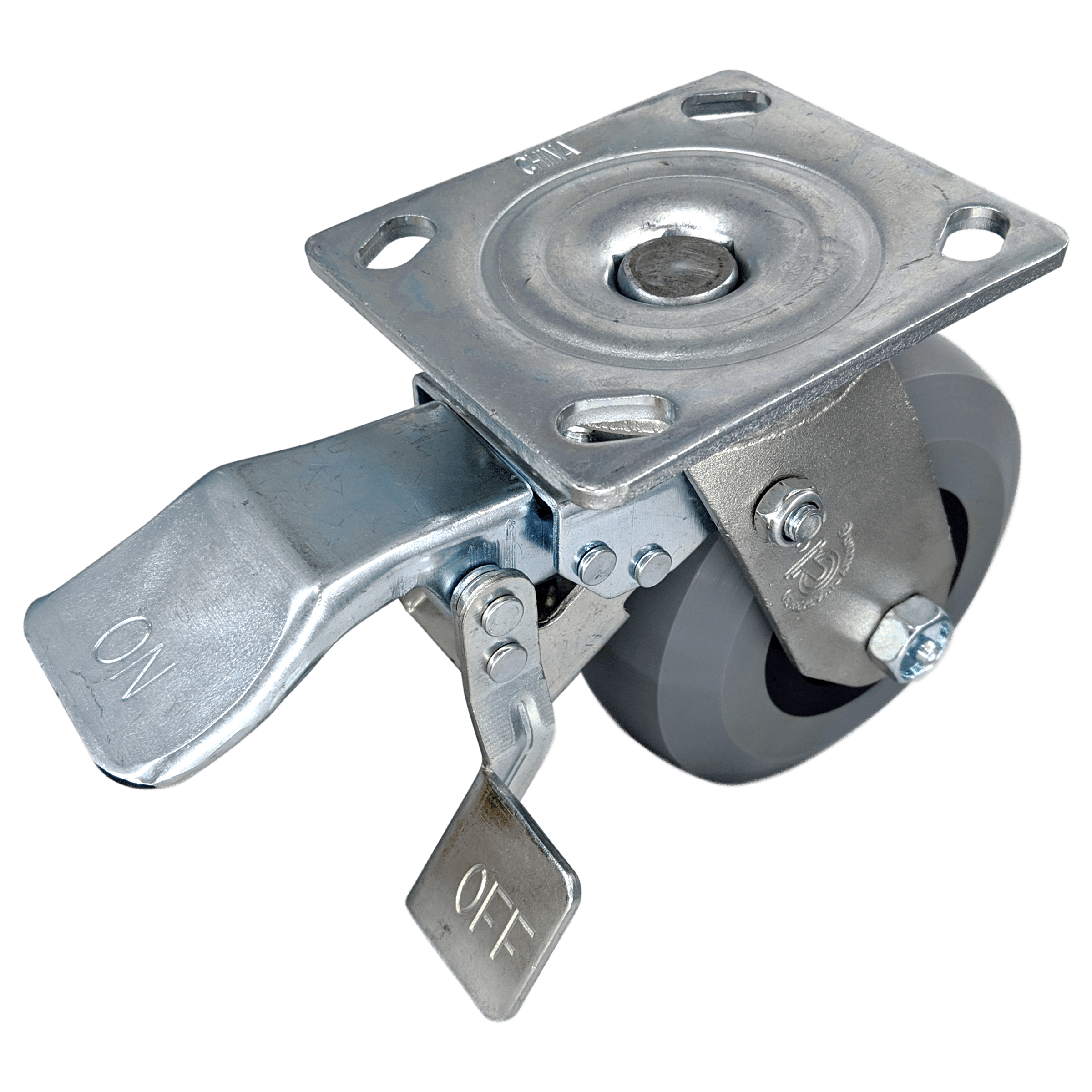

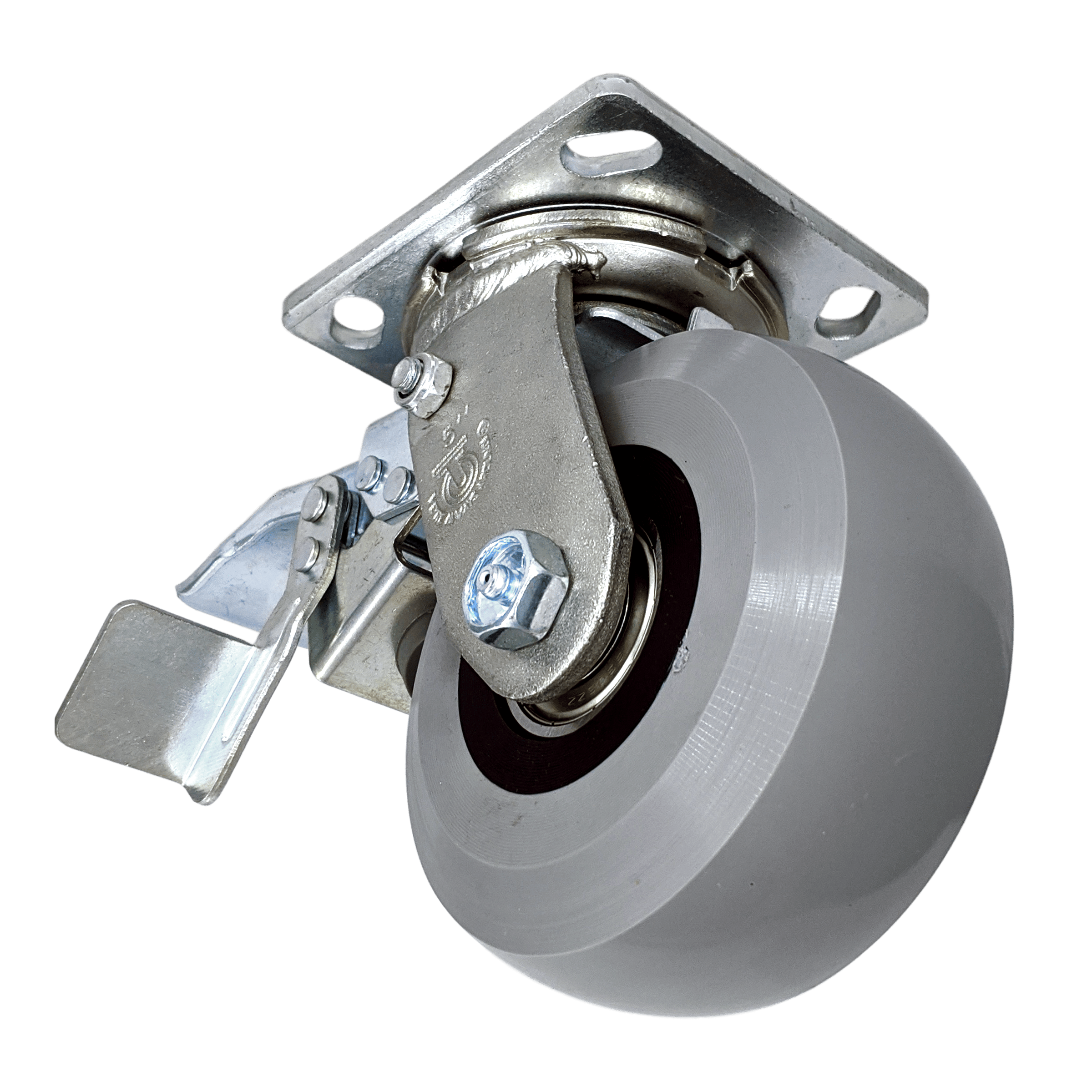

5" x 2" Ergolastomer Wheel Swivel Caster with Dual-Pedal Lock Brake

The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.

Tread: ?Solid Cast Polyurethane Elastomer, Non-Marking

Core: ?Glass Filled Nylon Bearing Collar

Bearing: Sealed Precision Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Dual Pedal Brake

  • Capacity: 1,250 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore D 68 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity  1,250 Lbs.
Wheel Diameter 5"
Tread Width  2"
Tread Type  Solid Cast Polyurethane Elastomer, Non-Marking
Core Type  Glass Filled Nylon Bearing Collar
Bearing Type  Sealed Precision Bearing
Wheel Color  Gray
Overall Height  6-1/2"
Swivel Radius  5"
Plate Size  4" x 4-1/2"
Bolt Hole Pattern  2-5/8" x 3-5/8" to 3 x 3"
Bolt Hole Diameter  3/8"
Lock Type  Dual Pedal Lock Brake
Durometer  Shore D 68 (+/-5)
Temperature Range  -50° F to 180° F
