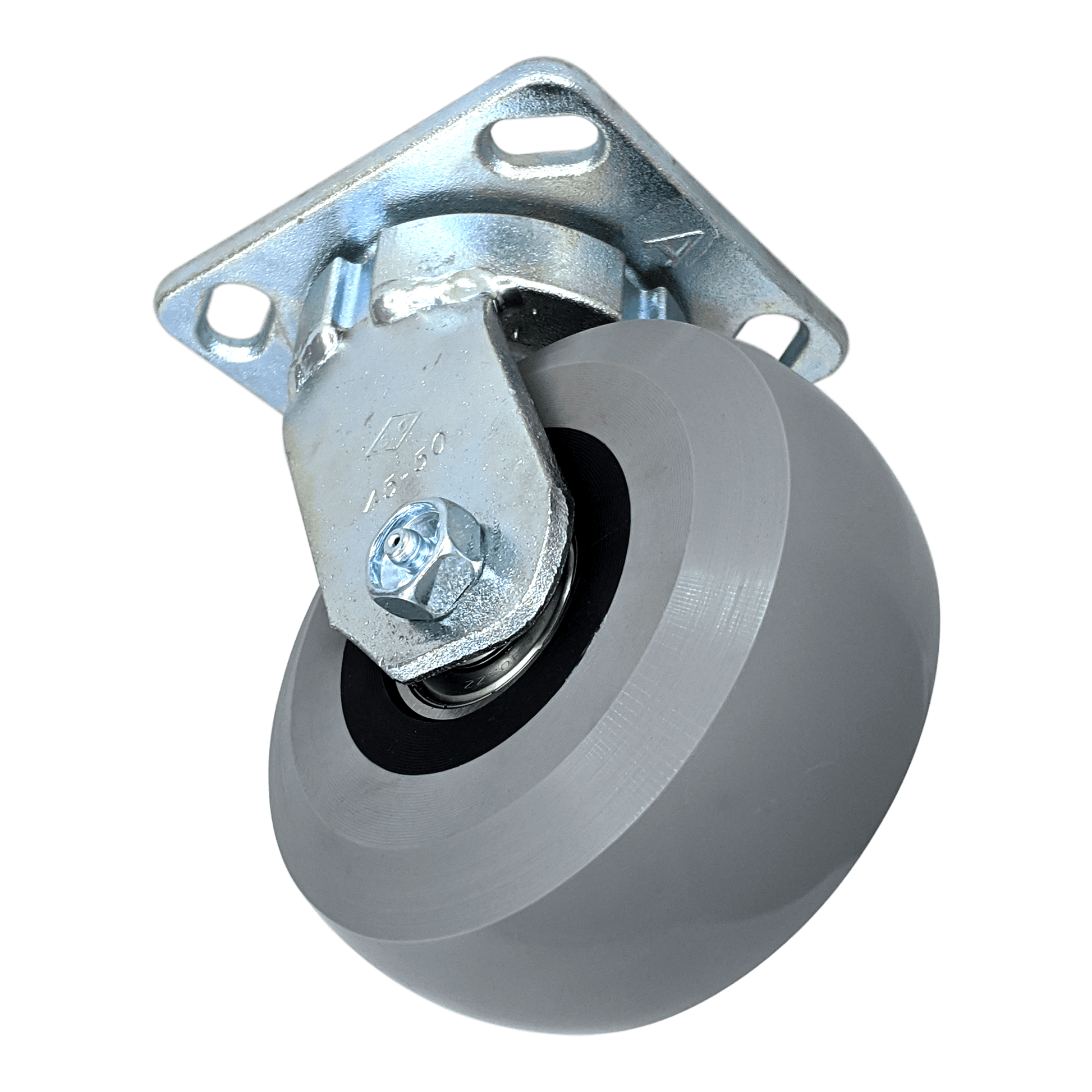

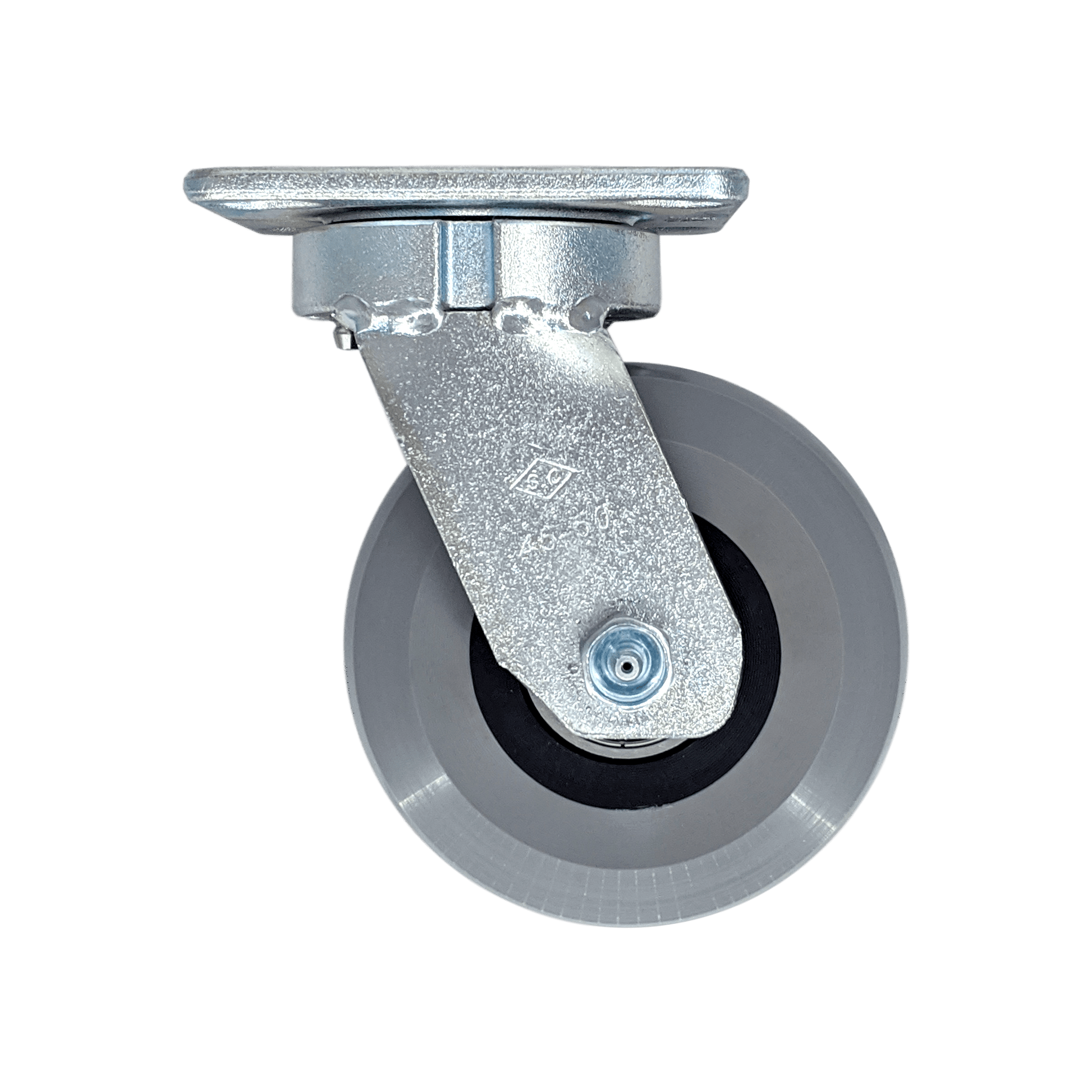

5" x 2" Ergolastomer Wheel Kingpinless Swivel Caster - 1400 lbs. capacity

In stock
SKU: 45HU50JI6417YY
Regular price $108.43
Est. Ship Date: Monday, April 29th
Four Position Swivel Lock
Trusted By

5" x 2" Ergolastomer Wheel Kingpinless Swivel Caster

The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.

Tread: Solid Cast Polyurethane Elastomer, Non-Marking

Core: Glass Filled Nylon Bearing Collar

Bearing: Sealed Precision Bearing

Rig: Kingpinless Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,400 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore D 65 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity  1,400 Lbs.
Wheel Diameter  5"
Tread Width  2"
Tread Type  Solid Cast Polyurethane Elastomer, Non-Marking
Core Type  Glass Filled Nylon Bearing Collar
Bearing Type  Sealed Precision Bearing
Wheel Color  Gray
Overall Height  6-1/2"
Swivel Radius  4"
Plate Size  4" x 4-1/2"
Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Durometer  Shore D 68 (+/-5)
Temperature Range
 -50° F to 180° F
