5" x 2" Ergolastomer Wheel Rigid Caster - 1,400 lbs. Capacity

In stock
SKU: 28HU50JI6417YY
Regular price $47.27
Est. Ship Date: Monday, June 3rd
Trusted By

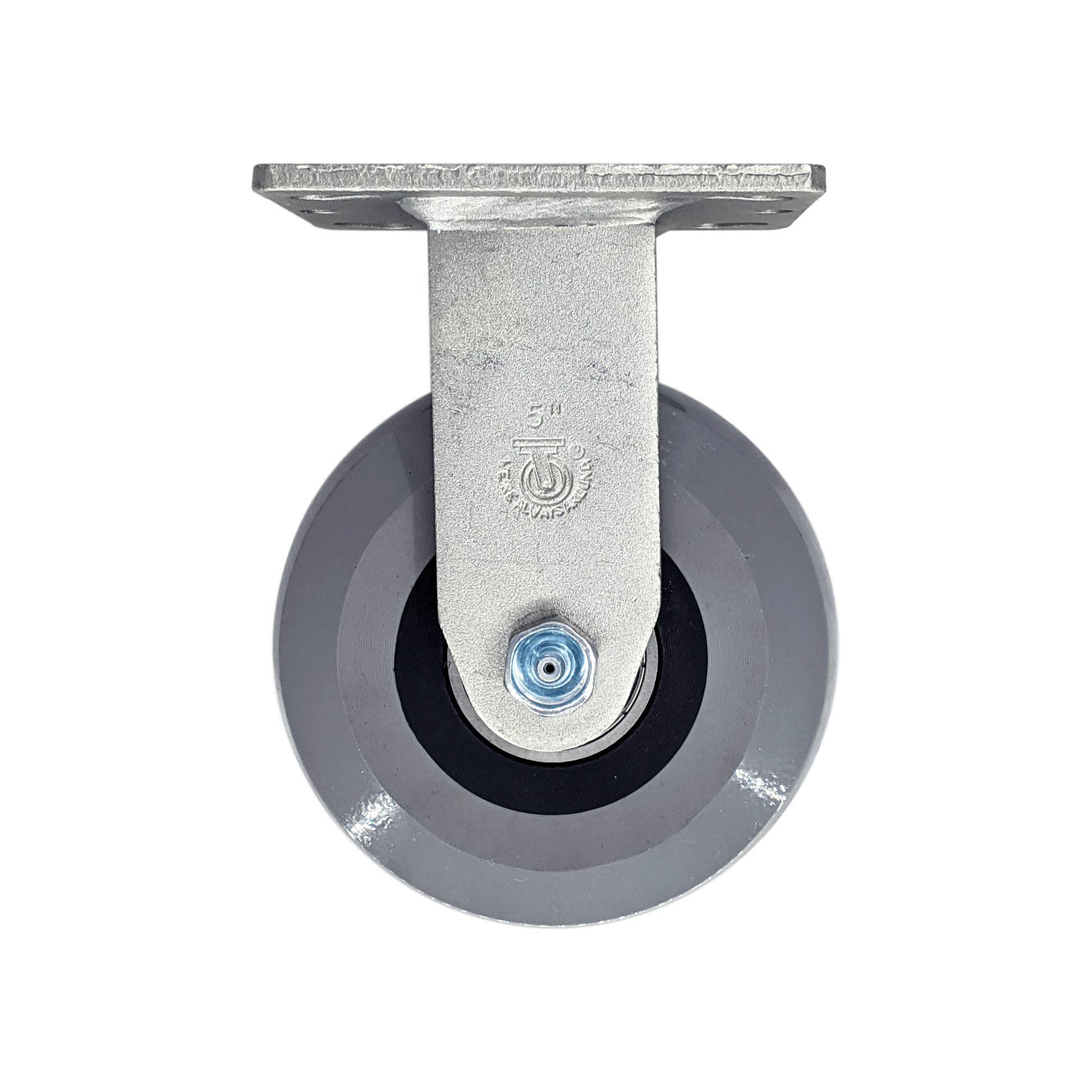

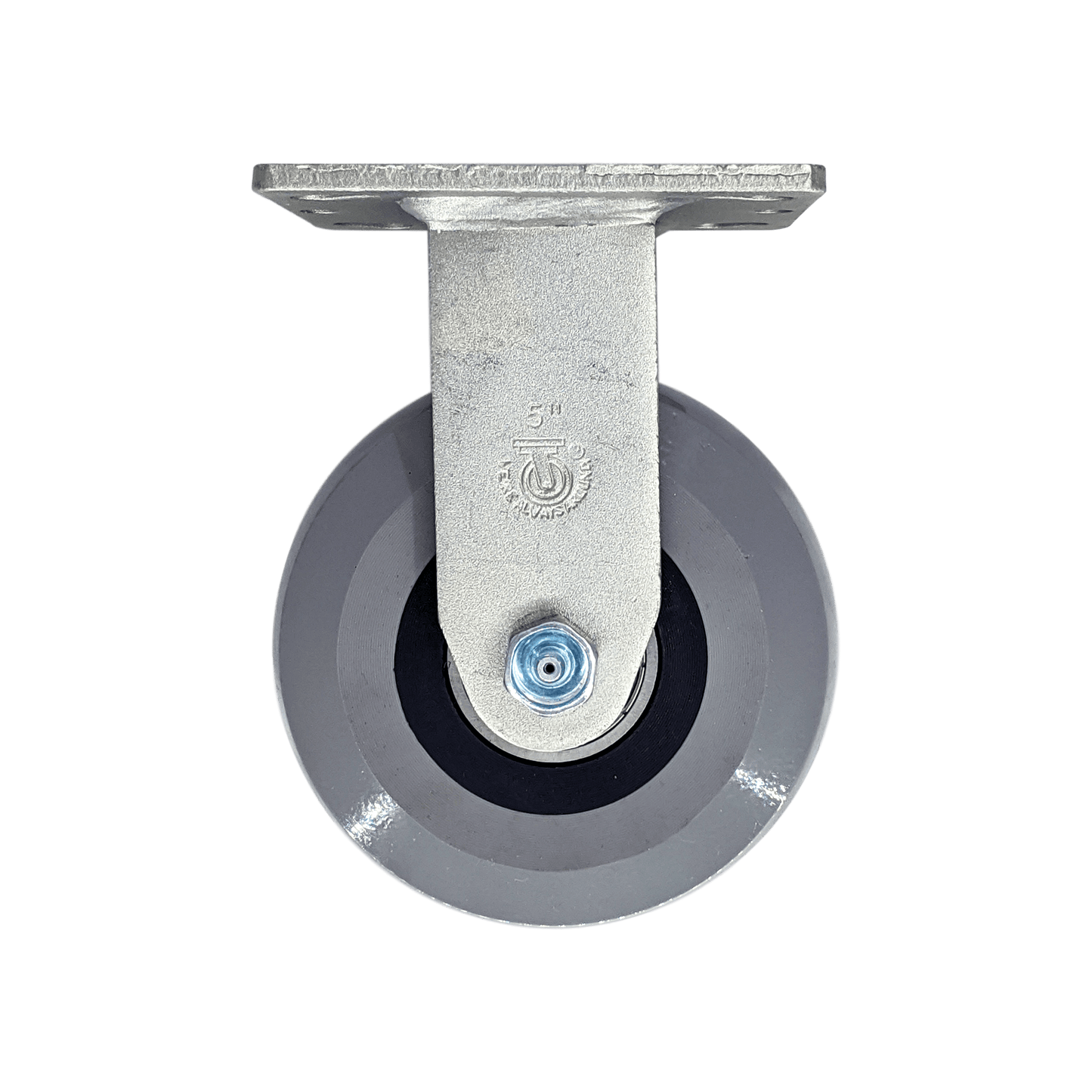

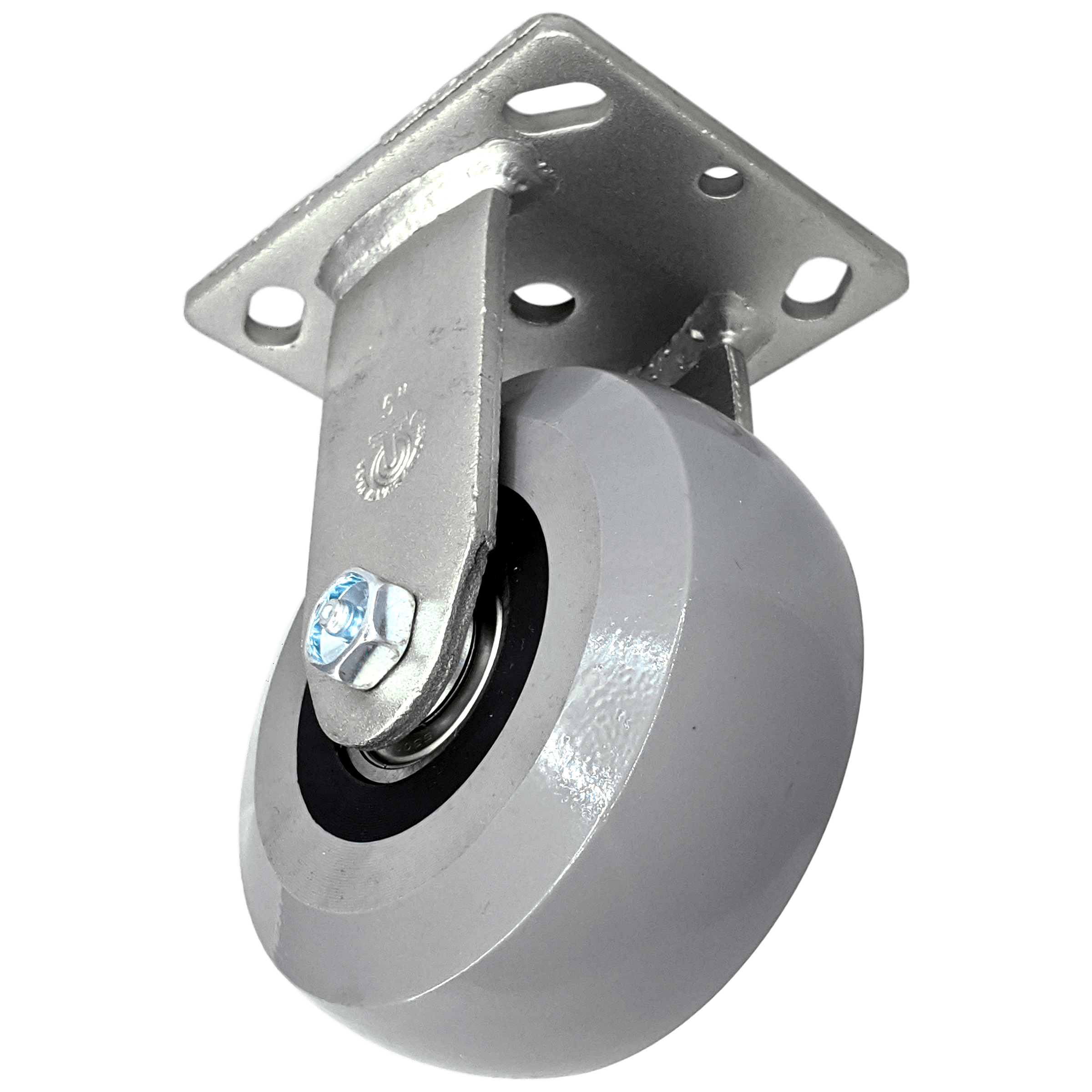

5" x 2" Ergolastomer Wheel Rigid Caster

The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.

Tread: Solid Cast Polyurethane Elastomer, Non-Marking

Core: Glass Filled Nylon Bearing Collar

Bearing: Sealed Precision Bearing

Rig: Zinc-Plated Rigid Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,400 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore D 68 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity 1,400 Lbs.
Wheel Diameter 5"
Tread Width  2"
Tread Type  Solid Cast Polyurethane Elastomer, Non-Marking
Core Type  Glass Filled Nylon Bearing Collar
Bearing Type  Sealed Precision Bearing
Wheel Color  Gray
Overall Height  6-1/2"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Bolt Hole Diameter
Shore D 68 (+/-5)
Temperature Range
-50° F to 180° F
