5" x 2" Ergolastomer Wheel Swivel Caster - 1,400 lbs. Capacity

In stock
SKU: 27HU50JI6417YY
Regular price $51.27
Est. Ship Date: Friday, December 15th
Four Position Swivel Lock
Trusted By

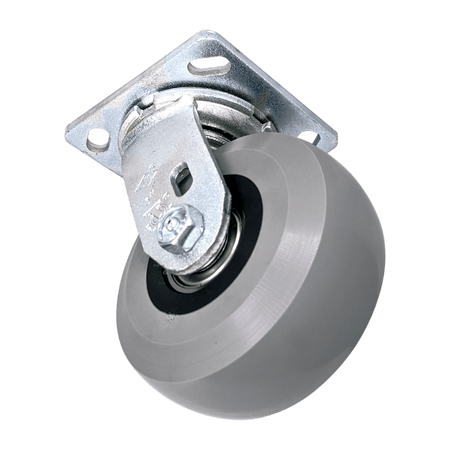

5" x 2" Ergolastomer Wheel Swivel Caster

The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.

Tread: Solid Cast Polyurethane Elastomer, Non-Marking

Core: Glass Filled Nylon Bearing Collar

Bearing: Sealed Precision Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate

  • Capacity: 1,400 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore D 68 (+/-5)
  • Temperature Range: -50° F to 180° F
Load Capacity  1,400 Lbs.
Wheel Diameter 5"
Tread Width
Tread Type
Solid Cast Polyurethane Elastomer, Non-Marking
Core Type
Glass Filled Nylon Bearing Collar
Bearing Type
Sealed Precision Bearing
Wheel Color
Overall Height
Swivel Radius
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8" x 3"-5/8" to 3" x 3"
Bolt Hole Diameter
Durometer Shore D 68 (+/-5)
Temperature Range   -50° F to 180° F
