5" x 2" Ergolastomer Wheel Swivel Caster w/ Top Lock Brake - 1,400 lbs. Cap.
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By

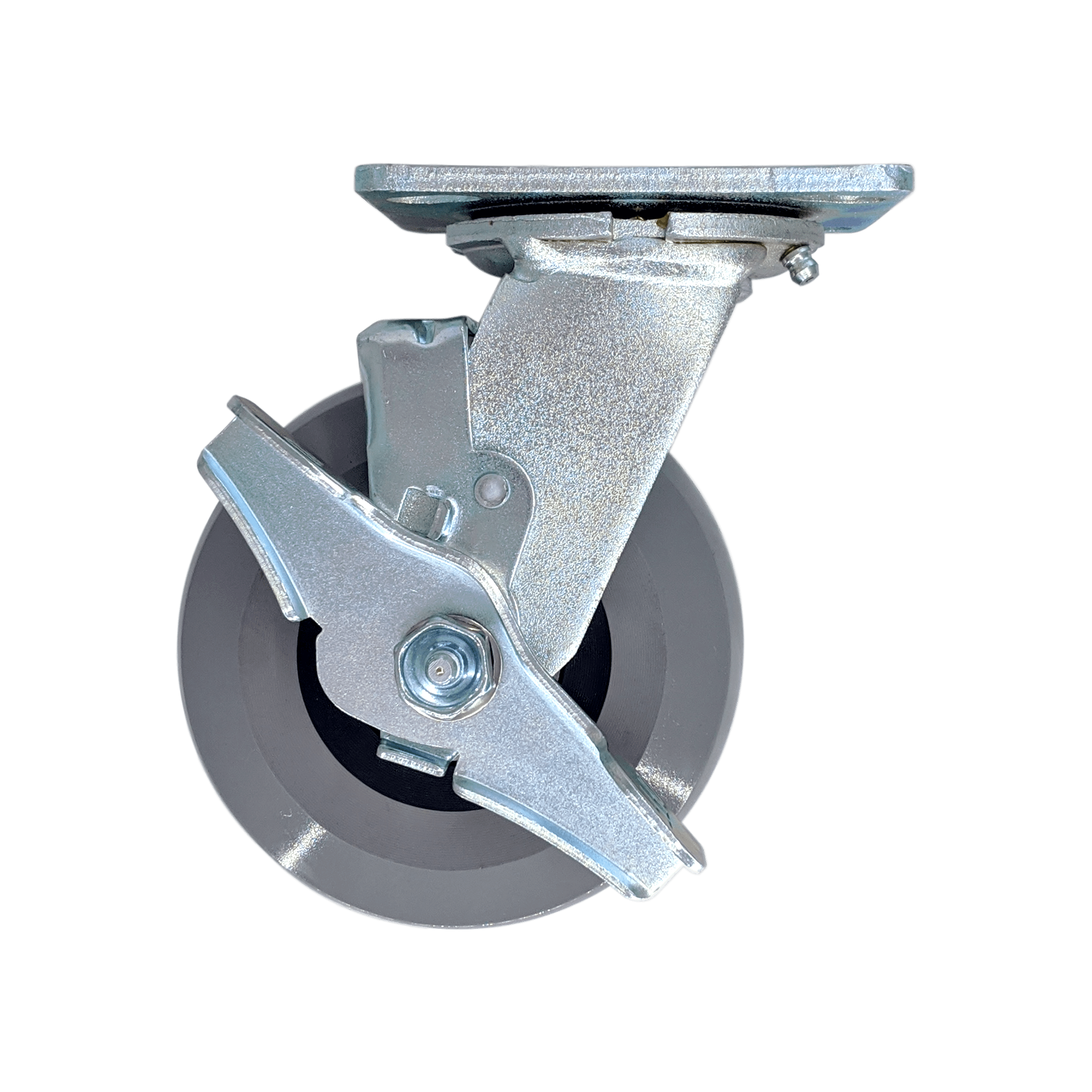

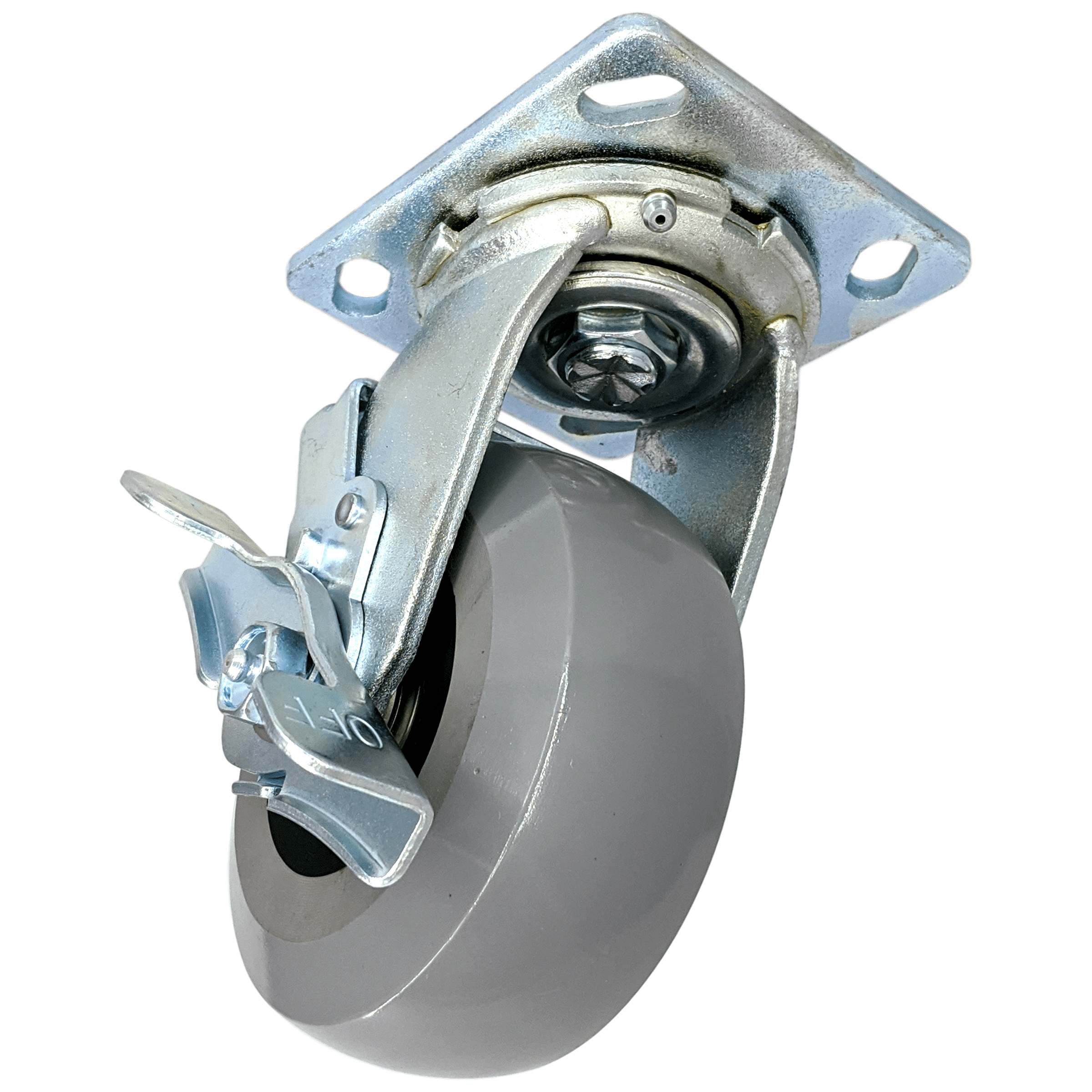

5" x 2" Ergolastomer Wheel Swivel Caster with Top Lock Brake
The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.
Tread: Solid Cast Polyurethane Elastomer, Non-Marking
Core: Glass Filled Nylon Bearing Collar
Bearing: Sealed Precision Bearing
Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake
- Capacity: 1,400 Lbs.
- Color: Gray on Gray
- Durometer: Shore D 68 (+/-5)
- Temperature Range: -50° F to 180° F
| Load Capacity | 1,400 Lbs. |
| Wheel Diameter |
5" |
| Tread Width |
2" |
| Tread Type |
Solid Cast Polyurethane Elastomer, Non-Marking |
| Core Type |
Glass Filled Nylon Bearing Collar |
| Bearing Type |
Sealed Precision Bearing |
| Wheel Color |
Gray |
| Overall Height |
6-1/2" |
| Swivel Radius |
4" |
| Plate Size |
4" x 4-1/2" |
| Bolt Hole Pattern |
2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter |
3/8" |
| Lock Type |
Top Lock Brake |
| Durometer | Shore D 68 (+/-5) |
| Temperature Range | -50° F to 180° F |
