5" x 1-1/4" Poly-Pro Wheel Rigid Caster - 300 lbs. capacity

In stock
SKU: 76PP50GI4417YY
Regular price $13.14

Mounting Plate Size
Trusted By

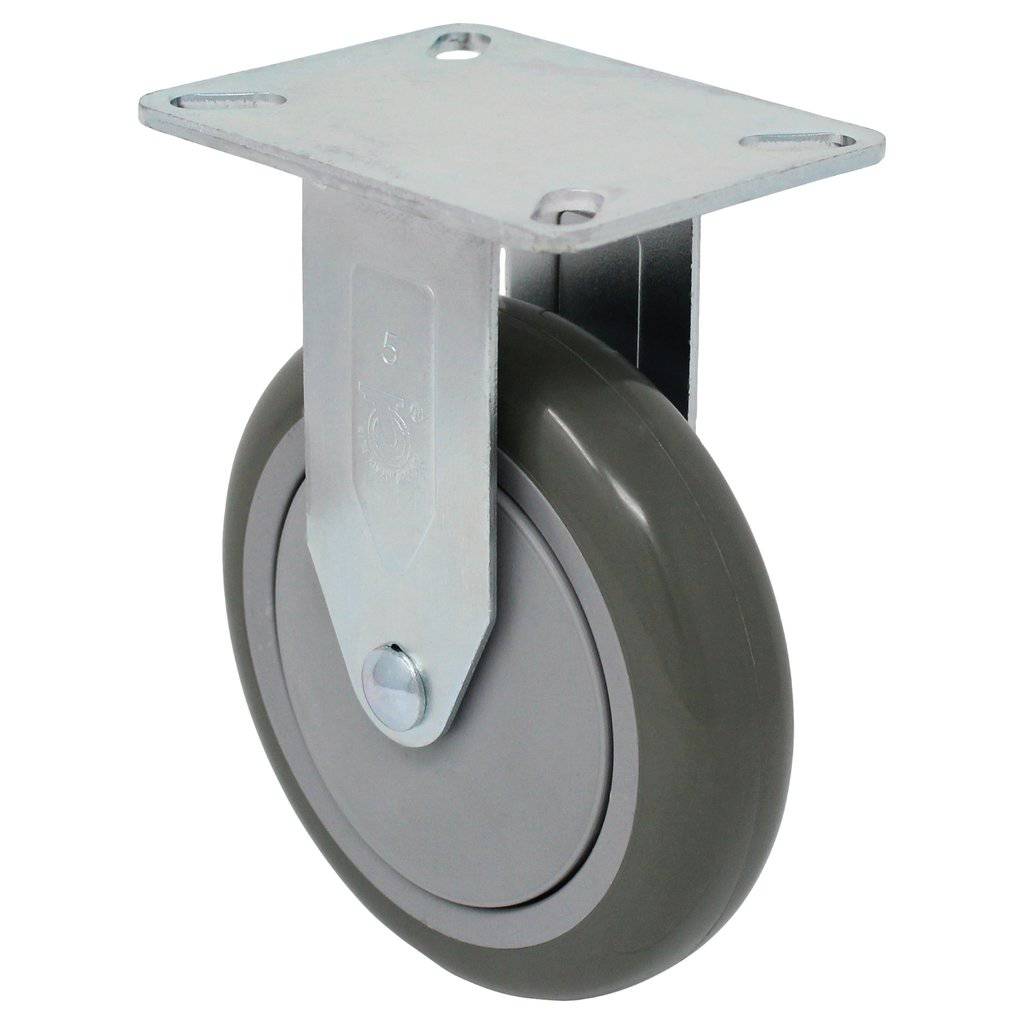

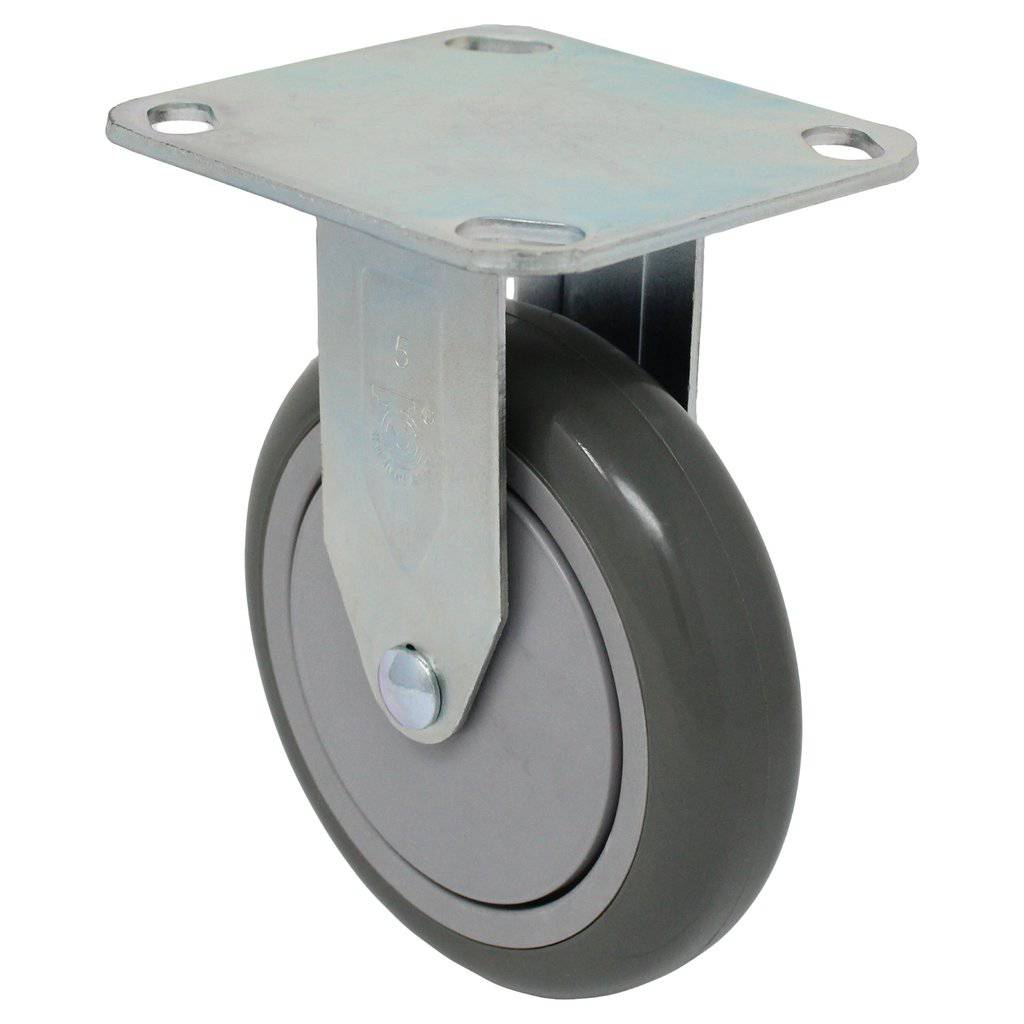

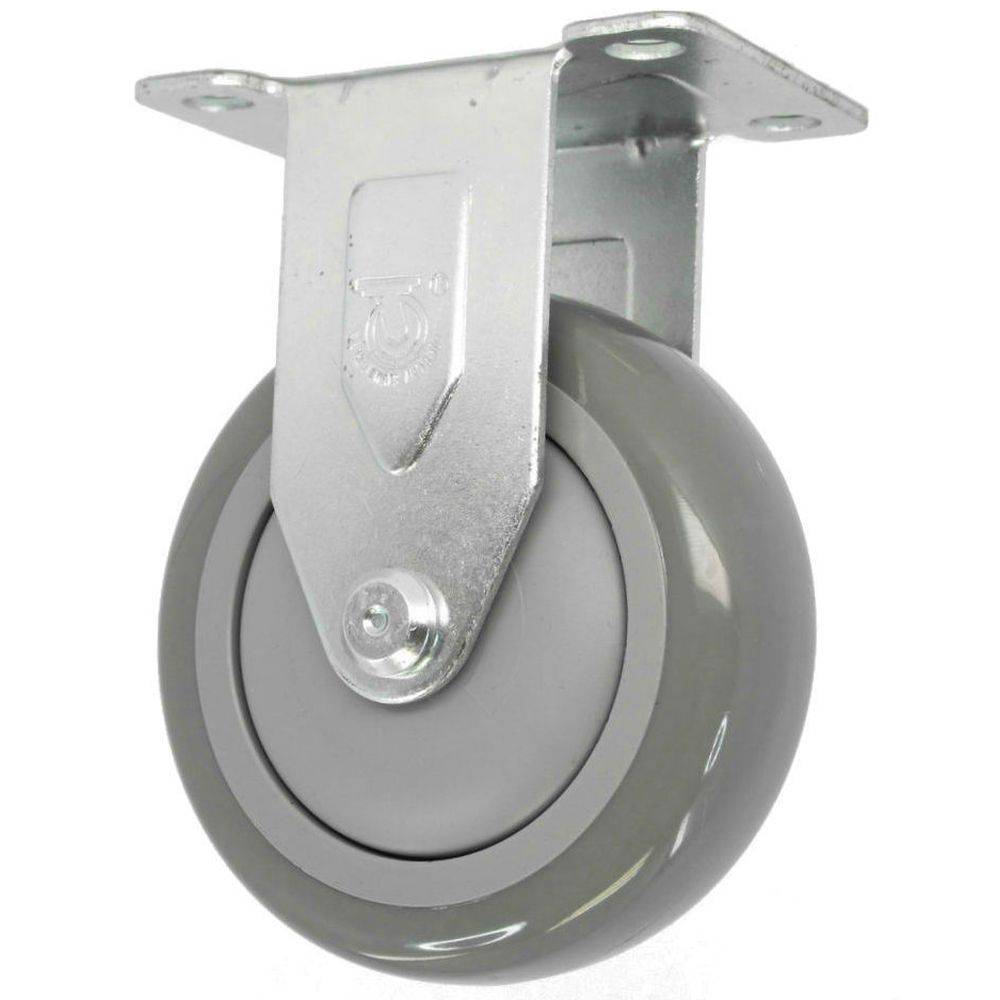

5" x 1-1/4" Poly-Pro Wheel Rigid Caster

The poly-pro wheel is one of our caster staples, providing plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These casters work best for indoor applications; for outdoor use, please take a look at our Polymadic wheel casters with UV resistant materials.

Tread: Polyurethane, Non-Marking, Mechanically Locked To Core

Core: Polyolefin

Bearing: Ball Bearing

Rig: Zinc-Plated Rigid Caster, Multiple Mounting Plate Options

  • Capacity: 350 Lbs.
  • Color: Gray on Gray
  • Durometer: Shore D 60 (+/-5)
  • Temperature Range: -20° F to 180° F
Load Capacity 350 Lbs.
Wheel Diameter 5"
Tread Width 1-1/4"
Tread Type
Polyurethane, Non-Marking, Mechanically Locked To Core
Core Type Polyolefin Core
Bearing Type Sealed Precision Bearing
Wheel Color Gray/Gray
Overall Height 6-1/8"
2-3/8" x 3-5/8" Plate Bolt Hole Pattern 1-3/4" x 2-7/8" slotted to 3"
Bolt Hole Diameter 5/16"
3-1/8" x 4-1/8" Plate Bolt Hole Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Bolt Hole Diameter 3/8"
4" x 4-1/2" Plate Bolt Hole Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Bolt Hole Diameter 3/8"
Lock Type Top Lock Brake
Durometer Shore D 60 (+/-5)
Temperature Range
-20° F to 180° F
