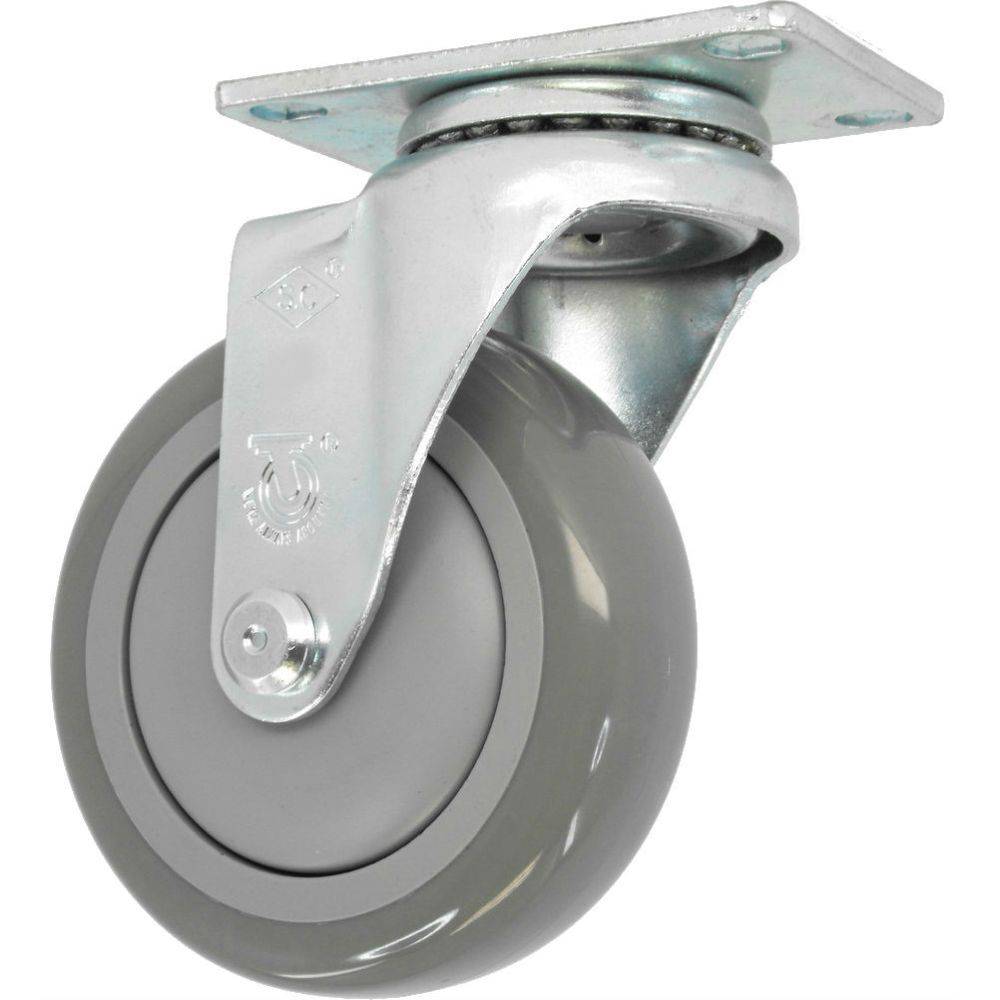

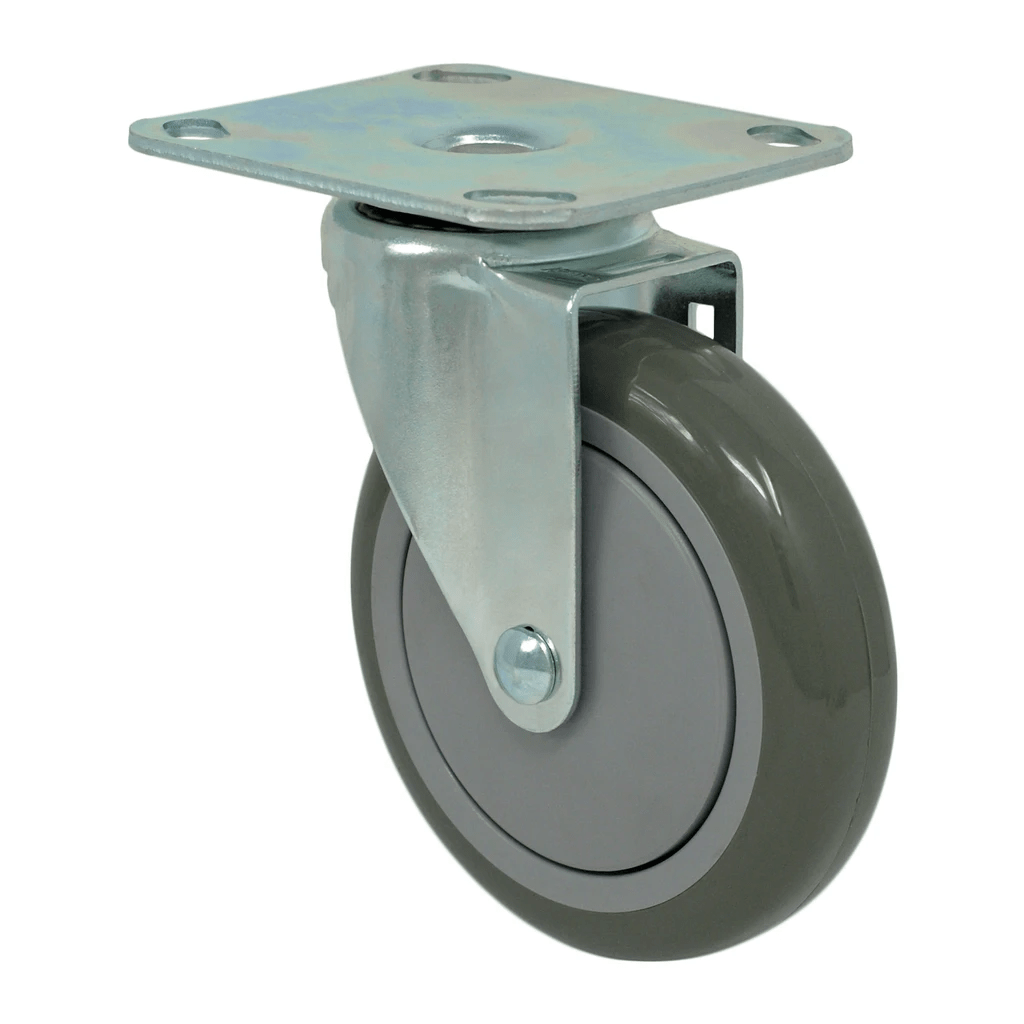

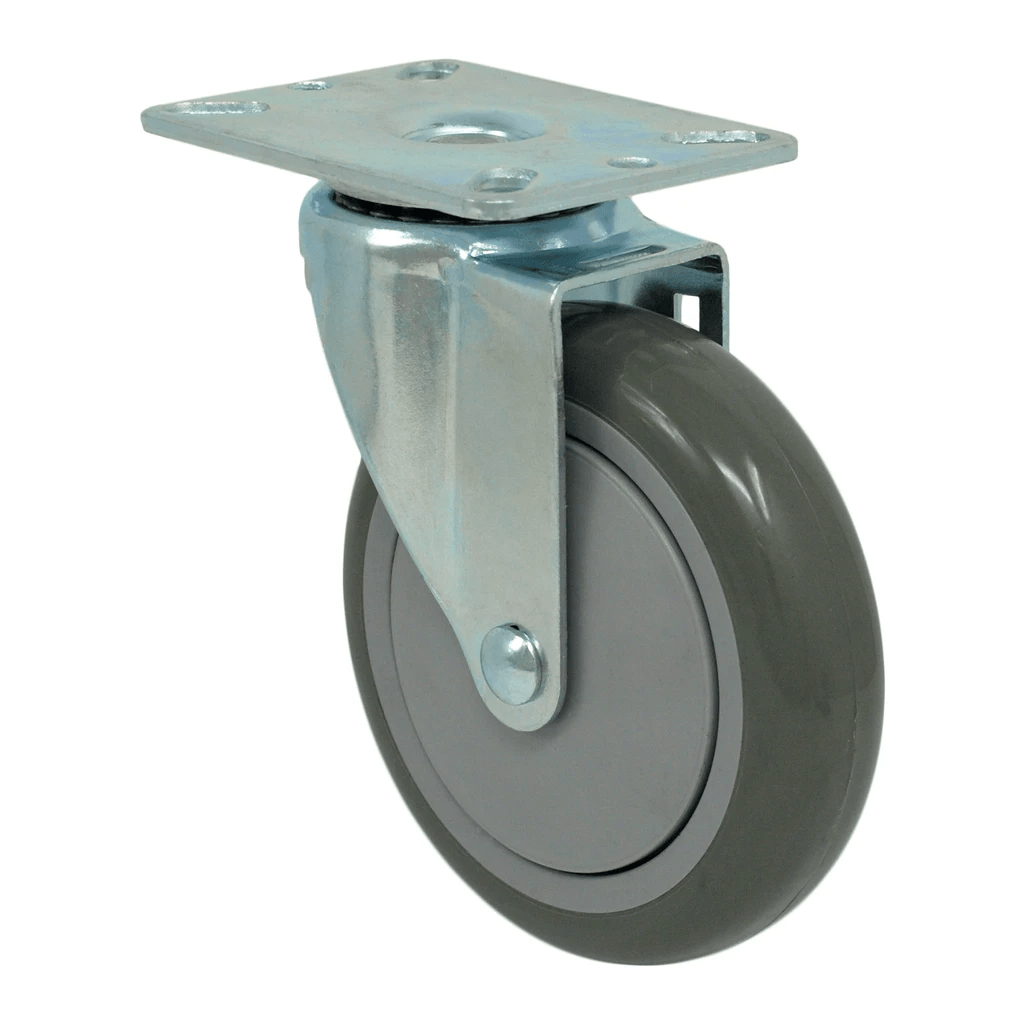

5" x 1-1/4" Poly-Pro Wheel Swivel Caster
The poly-pro wheel is one of our caster staples, providing plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These casters work best for indoor applications; for outdoor use, please take a look at our Polymadic wheel casters with UV resistant materials.
Tread: Polyurethane, Non-Marking, Mechanically Locked To Core
Core: Polyolefin
Bearing: Ball Bearing
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, Multiple Mounting Plate Sizes
- Capacity: 350 Lbs.
- Color: Gray on Gray
- Durometer: Shore D 60 (+/-5)
- Temperature Range: -20° F to 180° F
Load Capacity | 350 Lbs. |
|
Wheel Diameter | 5" | |
Tread Width | 1-1/4" | |
Tread Type |
Polyurethane, Non-Marking, Mechanically Locked To Core | |
Core Type | Polyolefin Core | |
Bearing Type | Sealed Precision Bearing | |
Wheel Color | Gray/Gray | |
Overall Height | 6-1/8" | |
Swivel Radius | 4" | |
2-3/8" x 3-5/8" Plate | Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
Bolt Hole Diameter | 5/16" | |
3-1/8" x 4-1/8" Plate | Bolt Hole Pattern | 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" |
Bolt Hole Diameter | 3/8" | |
4" x 4-1/2" Plate | Bolt Hole Pattern | 2-5/8" x 3-5/8"" slotted to 3" x 3" |
Bolt Hole Diameter | 3/8" | |
Lock Type | Top Lock Brake | |
Durometer | Shore D 60 (+/-5) |
|
Temperature Range |
-20° F to 180° F |
