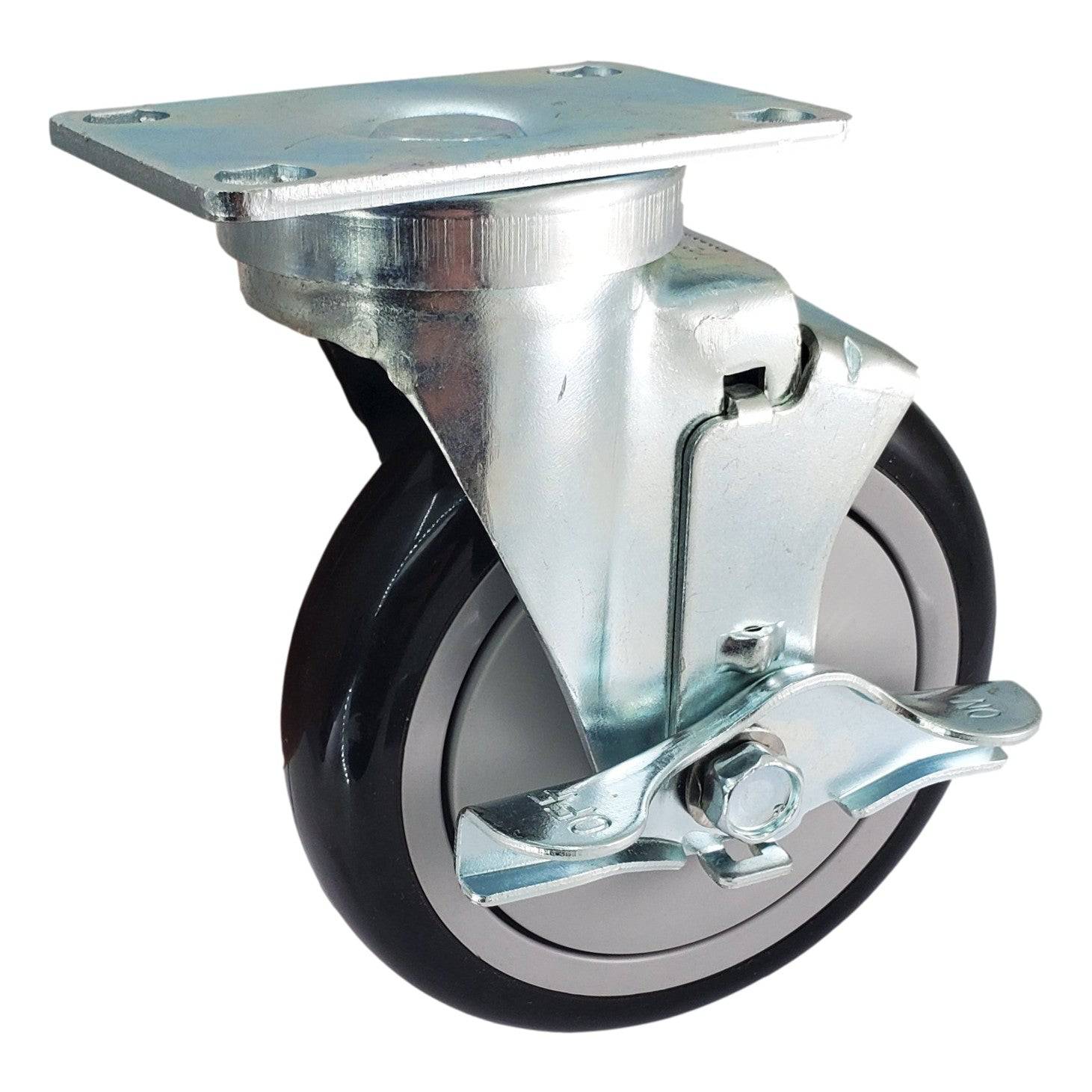

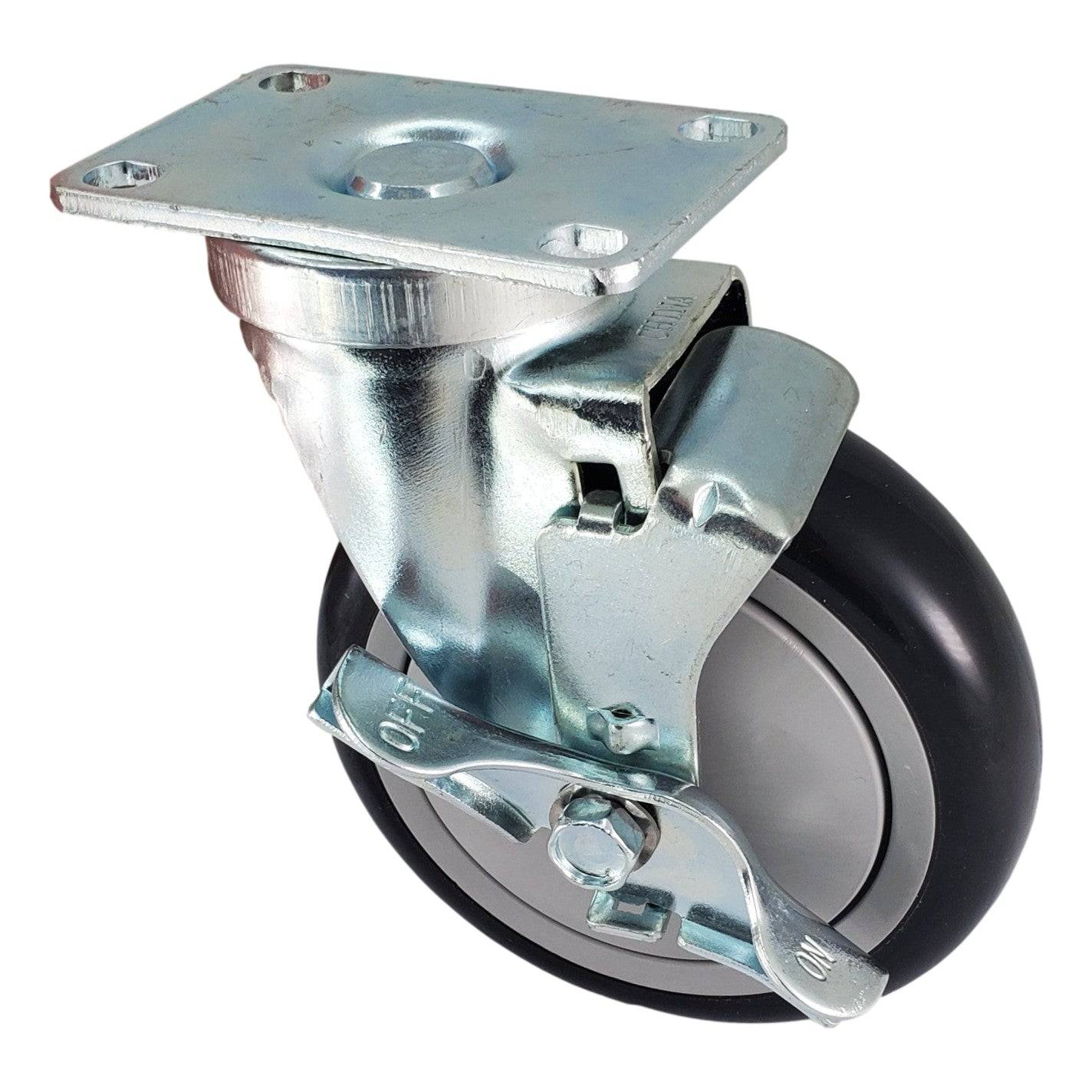

5" x 1-1/4" Poly-Pro Wheel Swivel Caster w/ Top Lock Brake - 350 lbs. capacity
Couldn't load pickup availability
Over 50 years in the industry, demonstrating reliability.
Serving customers across all 50 states.
Products designed for heavy-duty use.
30 Days Return Policy*
Trusted By
Product Overview
The poly-pro wheel is one of our caster staples, providing plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These casters work best for indoor applications; for outdoor use, please take a look at our Polymadic wheel casters with UV resistant materials.
Tread: Polyurethane, Non-Marking, Mechanically Locked To Core This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 350 Lbs., tread type Polyurethane, Non-Marking, Mechanically Locked To Core, and bearing type Ball Bearing.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Polyurethane, Non-Marking, Mechanically Locked To Core
- Bearing: Ball Bearing
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 350 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Polyurethane, Non-Marking, Mechanically Locked To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a different brake or lock style is required instead of Top Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Wheel Color | Gray and Black |
| Load Capacity | 350 Lbs. |
| Overall Height | 6-1/8" |
| Bearing Type | Ball Bearing |
| Plate Size | 2-3/8" x 3-5/8" |
| Lock Type | Top Lock Brake |
| Model / MPN | 75PP50GA4406TY |
| Tread Type | Polyurethane, Non-Marking, Mechanically Locked To Core |
| Core Type | Polyolefin |
| Swivel Radius | 4" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore D 60 (+/-5) |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Top Lock Brake.
