5" x 2" Polymadic Wheel Swivel Caster w/ Top Lock Brake - 750 lbs. capacity

In stock
SKU: 27PM50JM6017TY
Regular price $37.88

Color

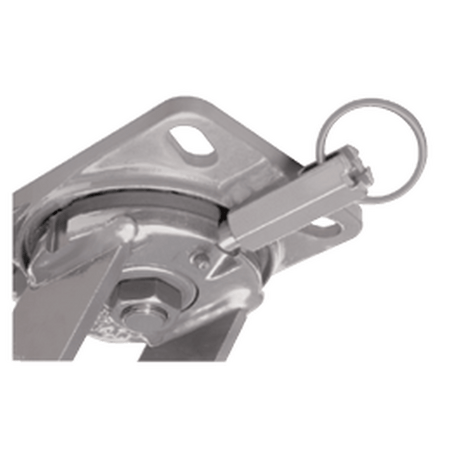

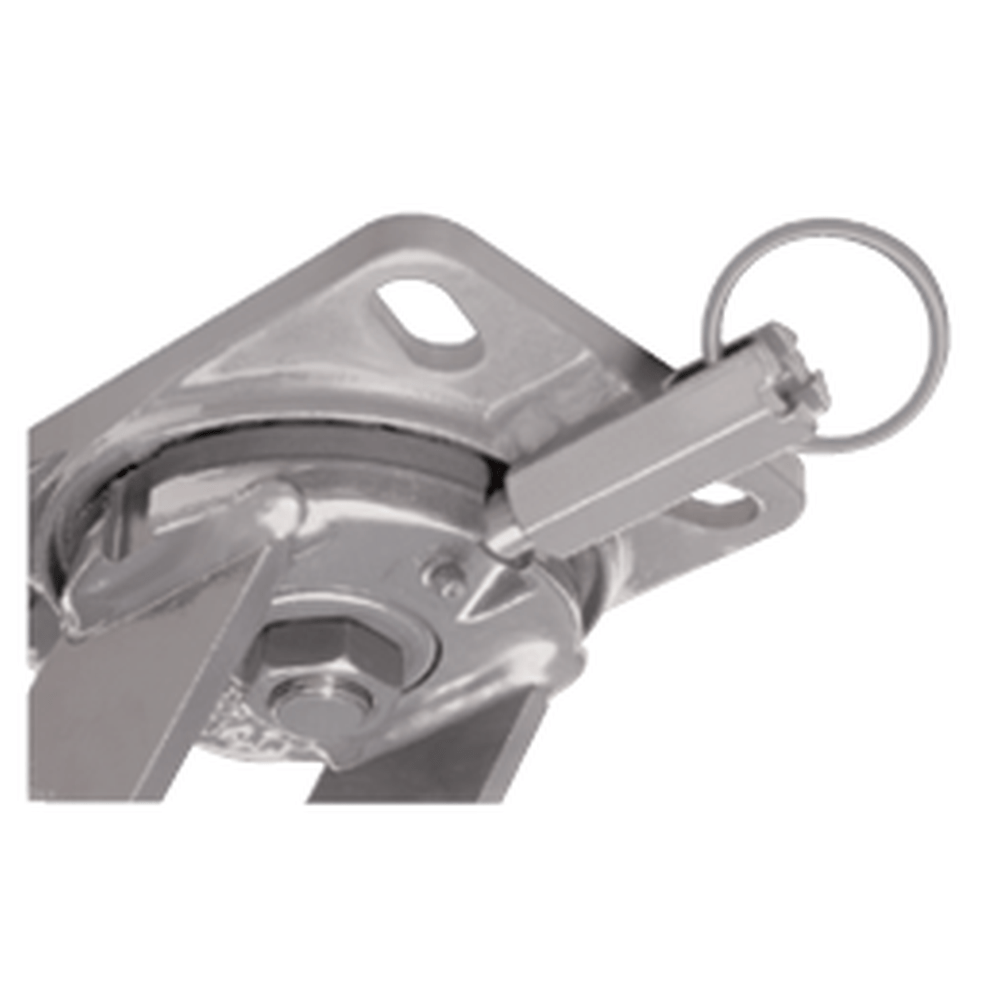

Four Position Swivel Lock
Trusted By

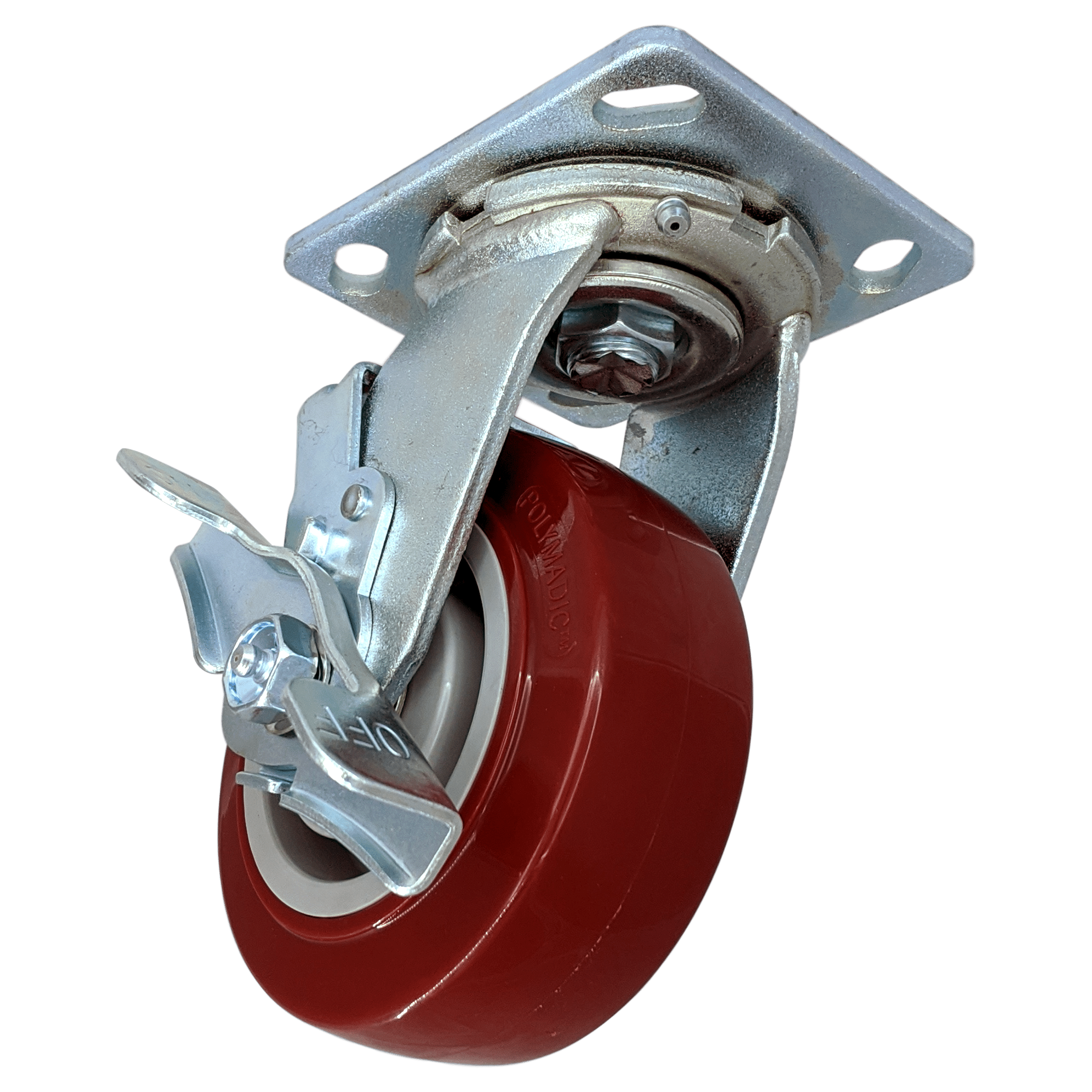

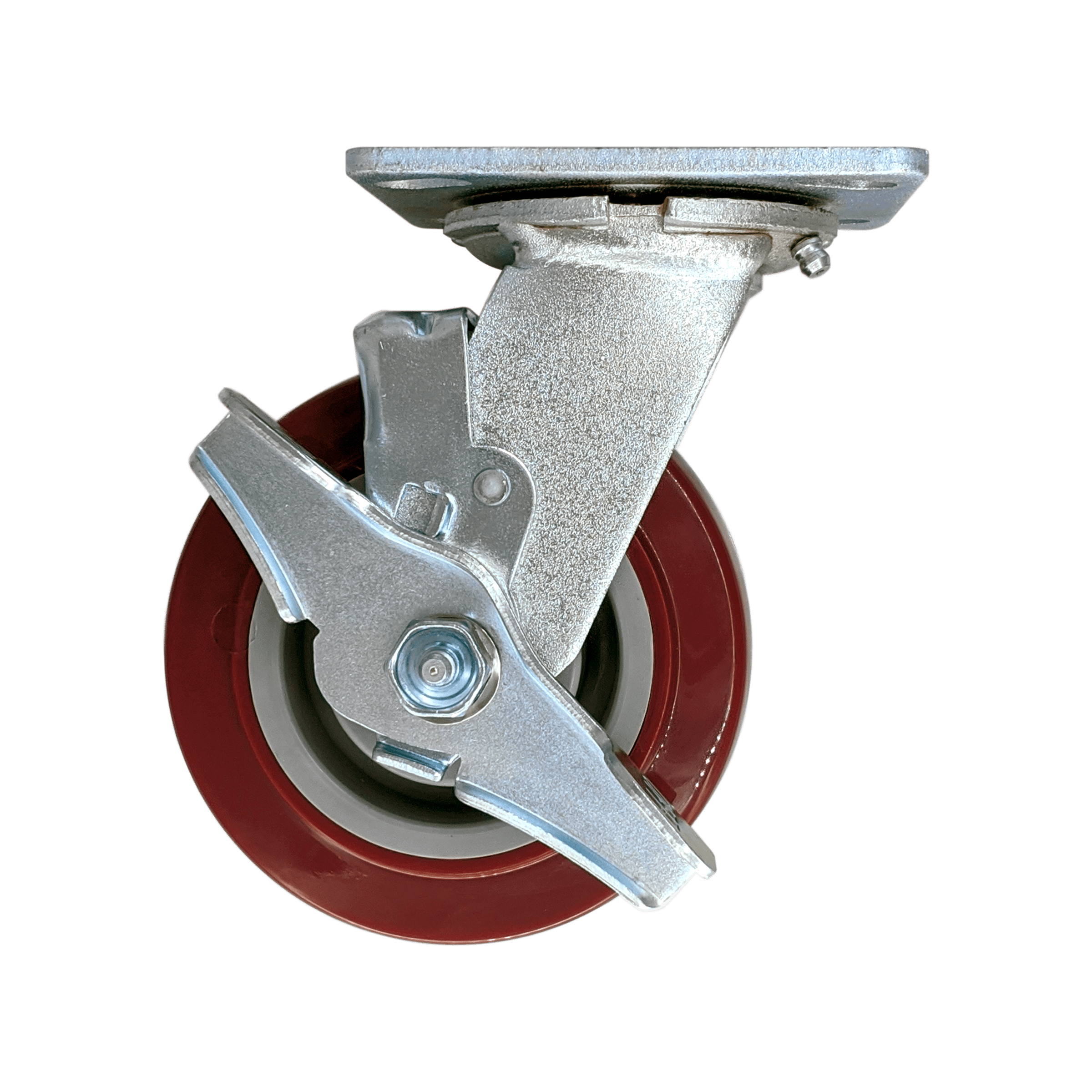

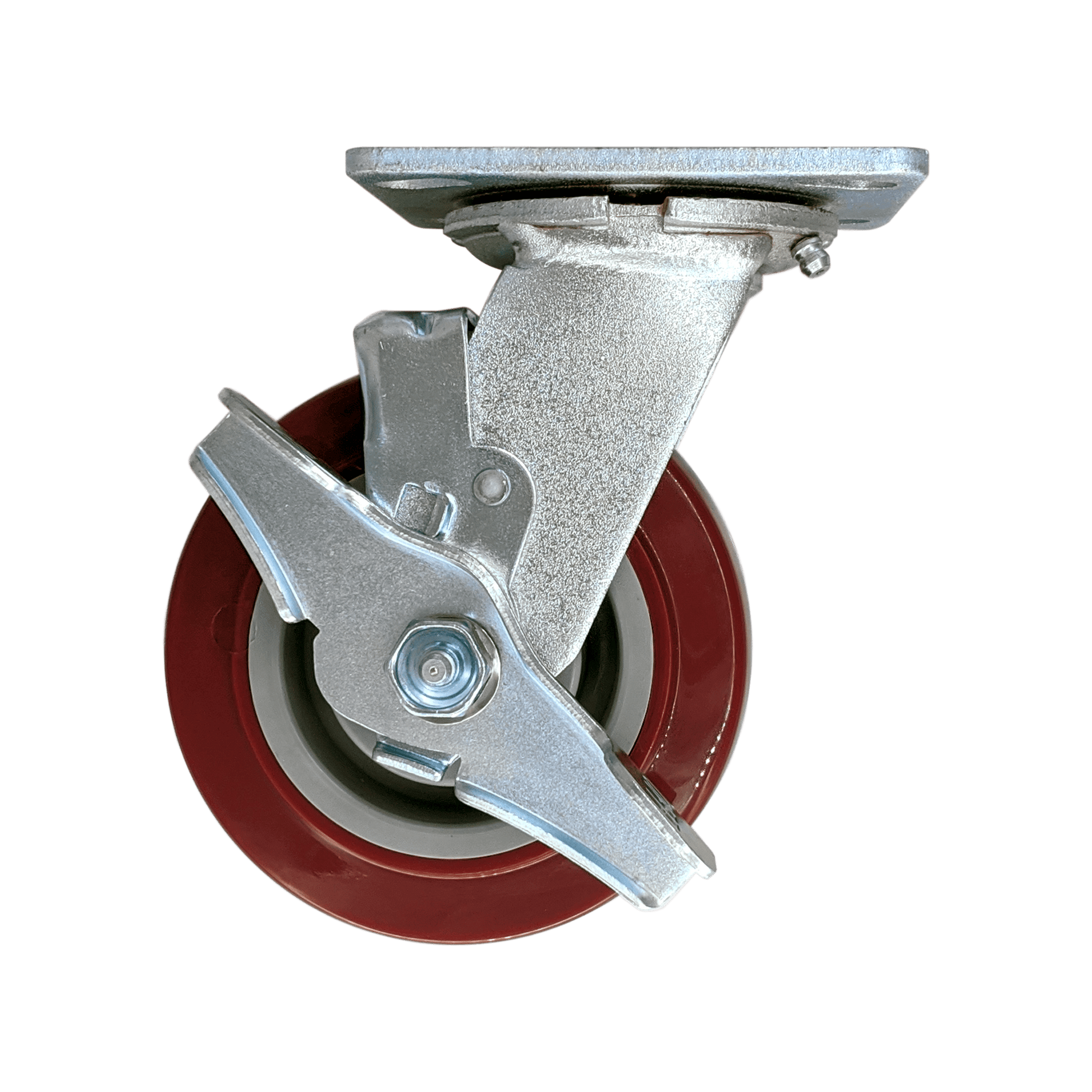

5" x 2" Polymadic Wheel Swivel Caster with Top Lock Brake

The polymadic wheel provides plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These wheels work well for most hard-floor applications due to the high-performance UV resistant materials used.

Tread: High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core

Core: Polyolefin

Bearing: Roller Bearing

Rig: Zinc-Plated Swivel Caster, 4" x 4-1/2" Mounting Plate, Top Lock Brake

  • Capacity: 750 Lbs.
  • Color: Gray on Gray, Maroon on Gray
  • Durometer: Shore D 60 (+/-5)
  • Temperature Range:-20° F to 180° F
Load Capacity  750 Lbs.
Wheel Diameter
5"
Tread Width
2"
Tread Type
High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core
Core Type
Polyolefin
Bearing Type  Roller Bearing
Wheel Color
- Gray on Gray
- Maroon on Gray
Overall Height
6-1/2"
Swivel Radius
4"
Plate Size
4" x 4-1/2"
Bolt Hole Pattern
2-5/8 " x 3-5/8" to 3" x 3"
Bolt Hole Diameter  3/8"
Lock Type  Top Lock Brake
Durometer  Shore D 60 (+/-5)
Temperature Range  -20° F to 180° F
