5" x 1-1/4" Polyon Aluminum Swivel Caster w/ Top Lock Brake - 350 lbs. Cap.
Couldn't load pickup availability
Trusted By

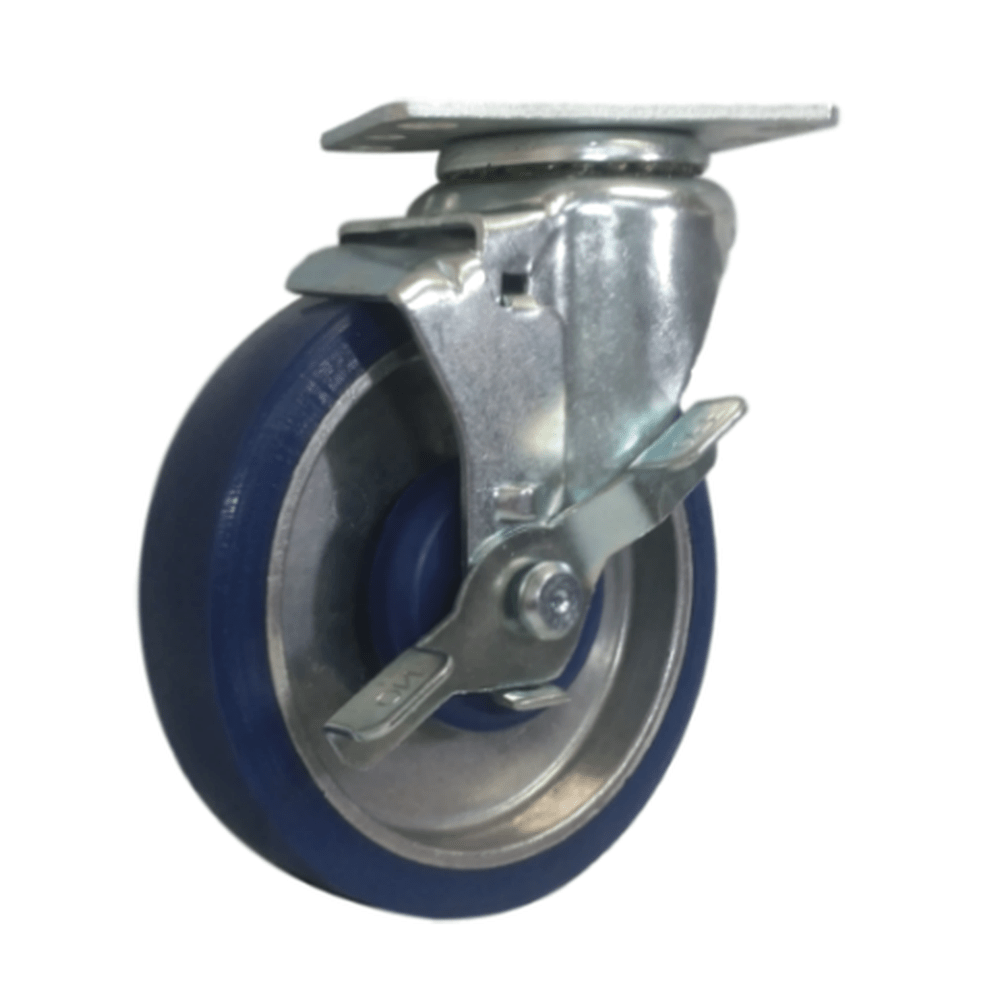

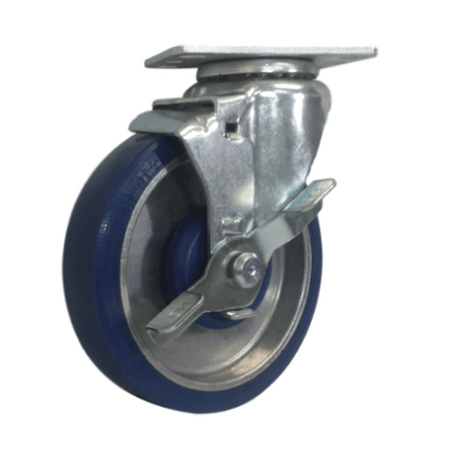

5" x 1-1/4" Polyon Aluminum Wheel Swivel Caster with Top Lock Brake
Polyurethane elastomer tread chemically bonded to an aluminum core. Aluminum core has a strong attractive appearance, is lightweight and resistant to rust and corrosion.
Tread: Polyurethane Elastomer
Core: Aluminum
Bearing: Ball Bearing
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 2-3/8" x 3-5/8" Mounting Plate, Top Lock Brake
- Capacity: 350 Lbs.
- Color: Blue and Silver
- Durometer: Shore A 95 (+/-5)
- Temperature Range: -45° F to 180° F
| Load Capacity | 350 Lbs. |
| Wheel Diameter |
5" |
| Tread Width |
1-1/4" |
| Tread Type |
Polyurethane Elastomer |
| Core Type |
Aluminum |
| Bearing Type |
Ball Bearing |
| Wheel Color |
Blue and Silver |
| Overall Height |
6-1/8" |
| Swivel Radius |
4" |
| Plate Size |
2-3/8" x 3-5/8" |
| Bolt Hole Pattern |
1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Lock Type | Top Lock Brake |
| Durometer | Shore A 95 (+/-5) |
| Temperature Range | -45° F to 180° F |
